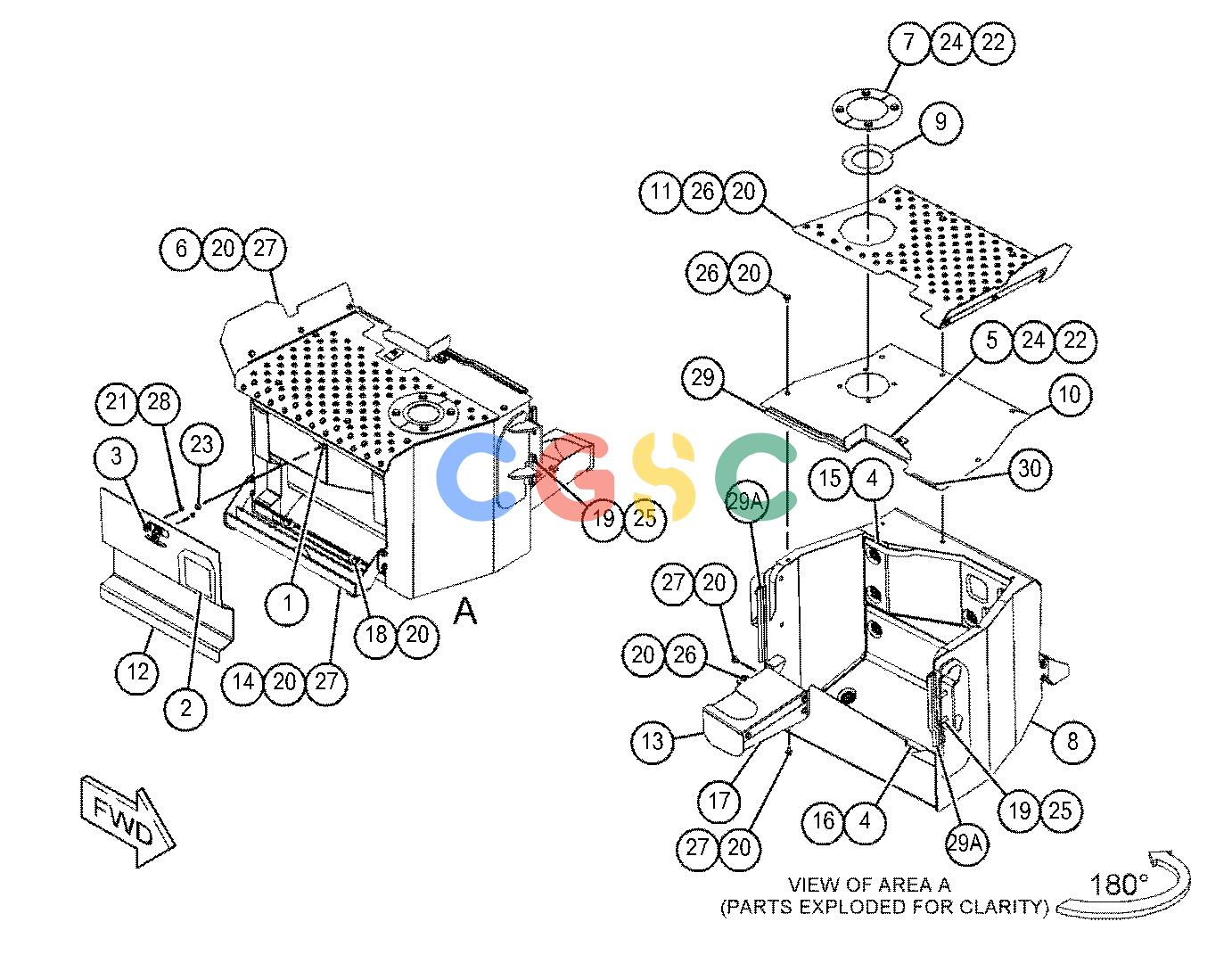

卡特零件查询（434F2） 431-6784: COVER GP-EXHAUST
广数供应链运营团队, 18 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-8522 | [1] | PAWL-LATCH | |
| 2. | 124-2456 | [1] | FILM-INSTRUCTION(NO STEP) | |
| 3. | 129-4741 | [1] | LATCH AS-T-BAR | |
| 4. | 257-2250 | [8] | WASHER(5X38-MM DIA) | |
| 5. | 389-0486 | [1] | GUARD | |
| 6. | 421-7376 | [1] | PLATE AS | |
| 7. | 431-8651 | [2] | PLATE-COVER | |
| 8. | 437-3310 | [1] | COVER AS | |
| | 159-9540M | [9] | NUT-WELD(M8X1.25-THD) | |
| 9. | 438-6224 | [1] | RING | |
| 10. | 443-6416 | [1] | COVER AS | |
| | 159-9541M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 163-4773 | [1] | PLATE-WELD | |
| 11. | 443-6417 | [1] | TREAD-NONSKID | |
| 12. | 443-6418 | [1] | DOOR AS | |
| 13. | 443-6420 | [1] | COVER AS | |
| 14. | 450-4633 | [1] | STEP AS | |
| | 159-9540M | [4] | NUT-WELD(M8X1.25-THD) | |
| 15. | 466-7389 | [1] | INSULATION | |
| 16. | 466-7390 | [1] | INSULATION | |
| 17. | 467-2112 | [1] | GUARD AS | |
| | 159-9540M | [1] | NUT-WELD(M8X1.25-THD) | |
| 18. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 19. | 5P-1076 | [3] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 5P-4116 | [20] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 22. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 23. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 24. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 25. | 8T-4183M | [3] | BOLT(M12X1.75X40-MM) | |
| 26. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 27. | 8T-4200M | [10] | BOLT(M8X1.25X16-MM) | |
| 28. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 29. | 5P-7211D | | SEAL(0.4-M) | |
| 29A. | 5P-7211D | | SEAL(0.3-M EACH) | |
| 30. | 3E-8299E | | SEAL(9.6-CM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
