卡特零件查询（434F2） 361-1139: CYLINDER GP-COUPLER
广数供应链运营团队, 18 02月, 2025，浏览：
181 次

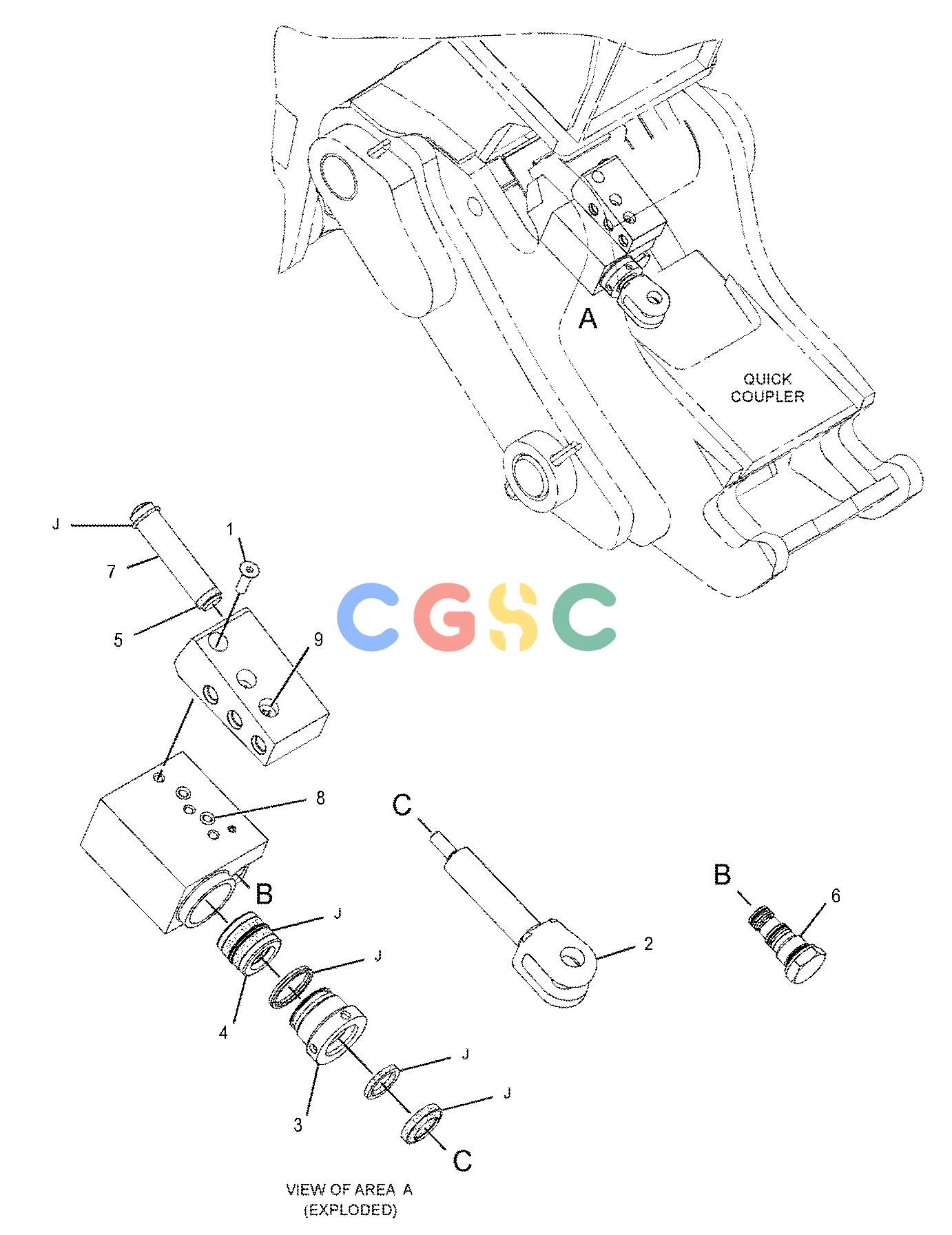

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 125-8665M | [1] | SCREW-FLAT HEAD(M6X1X16.7-MM) | |
| 2. | 361-1127 | [1] | ROD AS | |
| 3. | 361-1128 | [1] | SEAL | |
| 4. | 361-1129 | [1] | PISTON | |
| 5. | 361-1131 | [1] | KIT-SEAL | |
| | | | (INCLUDES PARTS MARKED "J" IN GRAPHIC) |
| 6. | 361-1132 | [1] | VALVE GP-CHECK(HYDRAULIC CONTROL LOCK) | |
| | 112-5282 | [1] | SEAL-O-RING | |
| | 214-7654 | [1] | SEAL-O-RING | |
| | 215-3277 | [1] | SEAL-O-RING | |
| 7. | 361-1140 | [1] | PISTON | |
| 8. | 192-7507 | [2] | SEAL-O-RING | |
| 9. | 8C-6430M | [2] | SCREW-FLAT HEAD(M6X1X30-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
