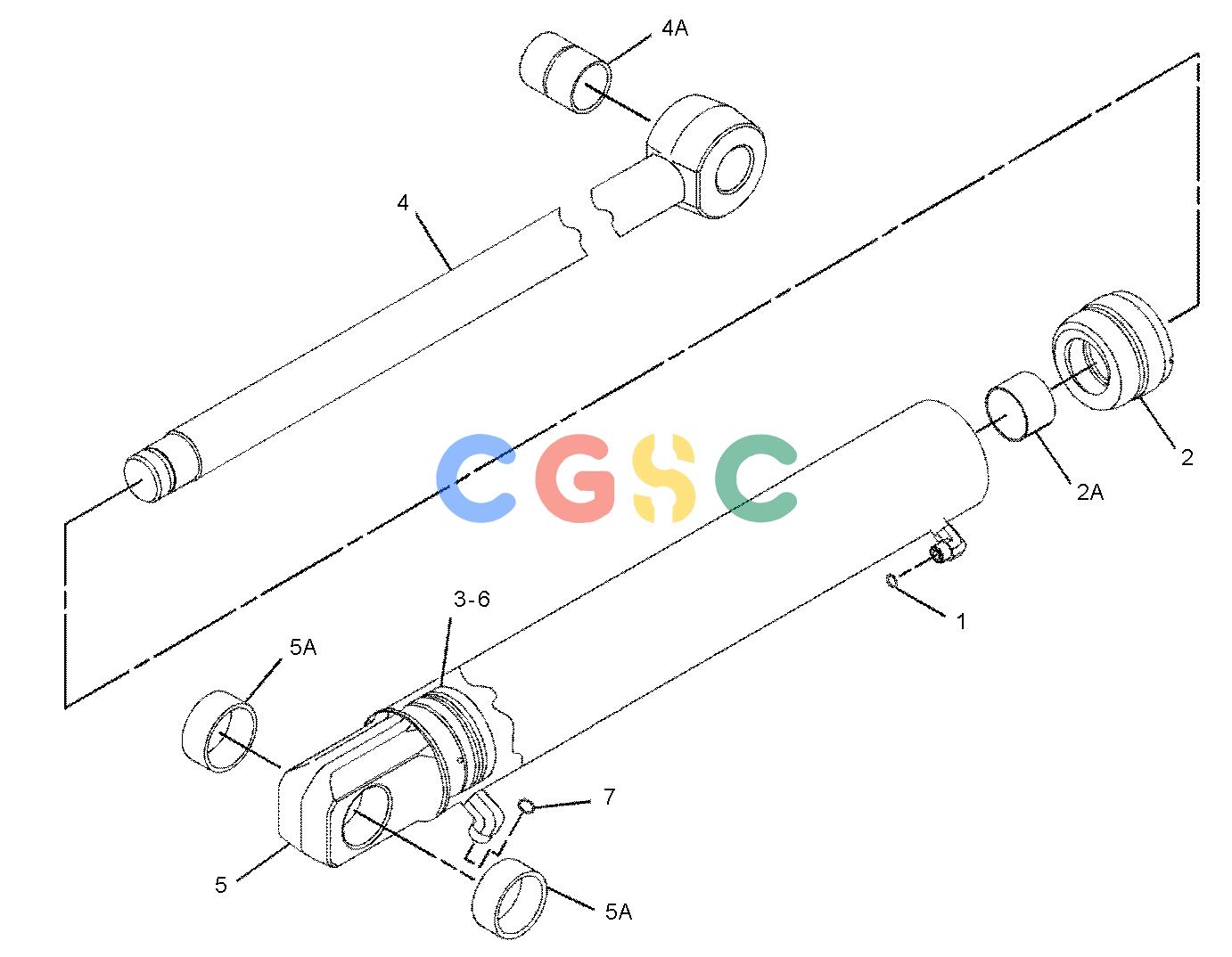

卡特零件查询（434F2） 320-5932: CYLINDER GP-STICK
广数供应链运营团队, 18 02月, 2025，浏览：
230 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-8398 | [1] | SEAL-O-RING | |
| 2. | 324-0352 | [1] | HEAD AS | |
| 2A. | 323-2470J | [1] | BEARING | |
| | 340-9313J | [1] | SEAL-O-RING | |
| | 338-2415 | [1] | SEAL-WIPER | |
| | 338-2445J | [1] | SEAL-U-CUP | |
| 3. | 324-0354 | [1] | PISTON AS | |
| | 340-6338J | [1] | SEAL-PISTON | |
| | 340-9308J | [1] | SEAL-O-RING | |
| | 343-8052J | [2] | RING-WEAR | |
| 4. | 324-0391 | [1] | ROD AS | |
| 4A. | 331-1520 | [1] | BEARING | |
| 5. | 324-0402 | [1] | CYLINDER AS-HYDRAULIC | |
| 5A. | 215-1906 | [2] | BUSHING | |
| 6. | 350-3842M | [2] | SETSCREW(M8X1.25X12.3-MM) | |
| 7. | 7J-9108 | [1] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 501-6706J | [1] | KIT-HYD CYLINDER SEAL(STICK CYLINDER) | |
| | | | (ALSO INCLUDES WIPER SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
