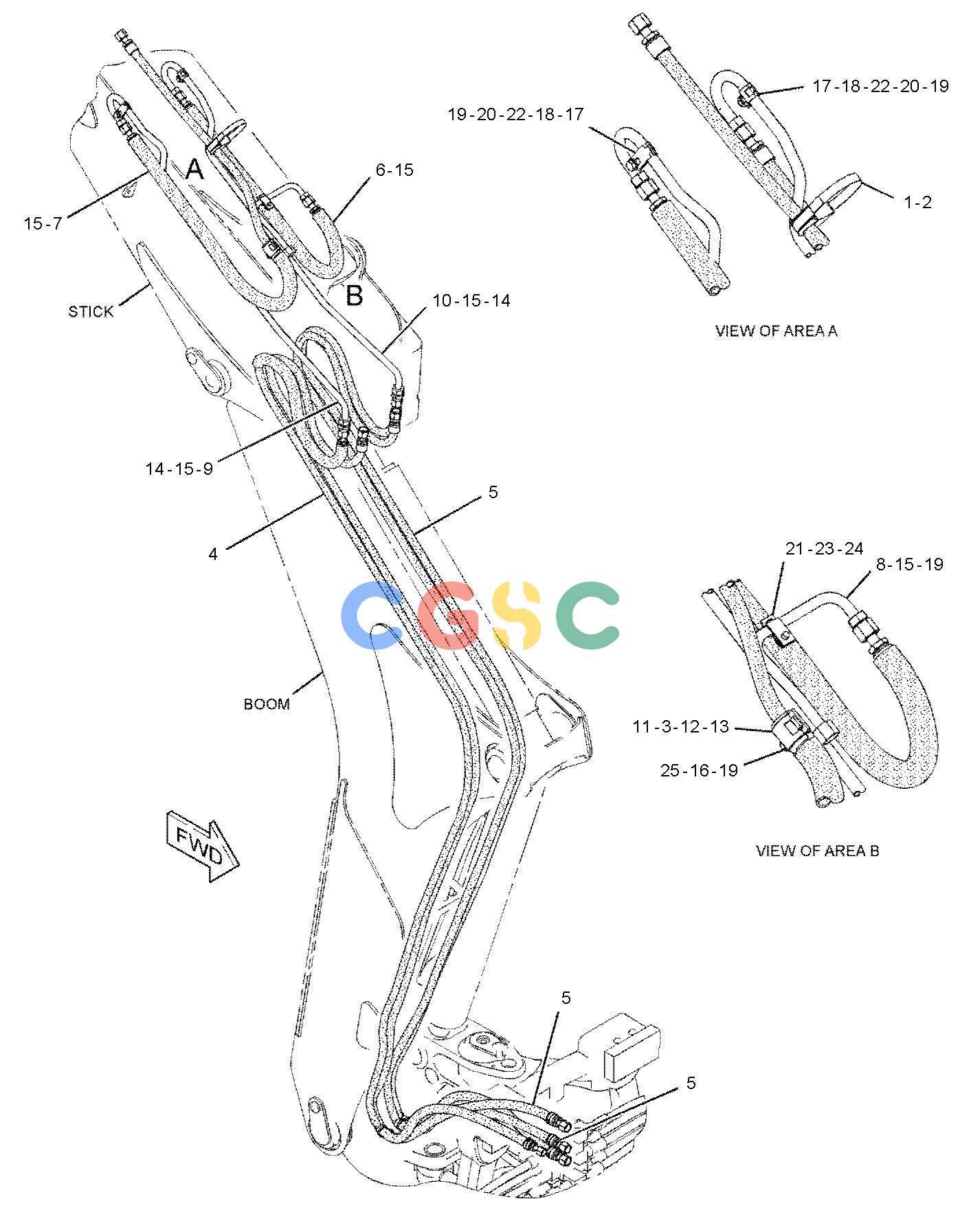

卡特零件查询（434F2） 365-3333: LINES GP-BUCKET
广数供应链运营团队, 18 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-0599 | [1] | CLAMP-BAND | |
| 2. | 9R-5948 | [1] | BLOCK | |
| 3. | 091-0081 | [1] | SPACER(10.5X20X10-MM THK) | |
| 4. | 324-7598I | [1] | HOSE AS | |
| 5. | 324-7599I | [3] | HOSE AS | |
| 6. | 324-7604I | [1] | HOSE AS | |
| 7. | 334-7931I | [1] | HOSE AS | |
| 8. | 341-5752 | [1] | TUBE AS | |
| 9. | 364-4125 | [1] | TUBE AS | |
| 10. | 364-4126 | [1] | TUBE AS | |
| 11. | 5P-7464 | [1] | CLIP(SLOT) | |
| 12. | 5P-7465 | [1] | CLIP(TAB) | |
| 13. | 6V-7359 | [1] | GROMMET(25-MM ID, 37-MM OD) | |
| 14. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 15. | 7J-9108 | [5] | SEAL-O-RING | |
| 16. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 17. | 8T-1887 | [2] | CLIP(SLOT) | |
| 18. | 8T-1888 | [2] | CLIP(TAB) | |
| 19. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 21. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 22. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 23. | 9R-1004 | [1] | CLIP(TAB) | |
| 24. | 9R-1005 | [1] | CLIP(SLOT) | |
| 25. | 9X-6418M | [1] | BOLT(M10X1.5X45-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
