卡特零件查询（434F2） 323-2023: LINES GP-BUCKET CYLINDER
广数供应链运营团队, 18 02月, 2025，浏览：
177 次

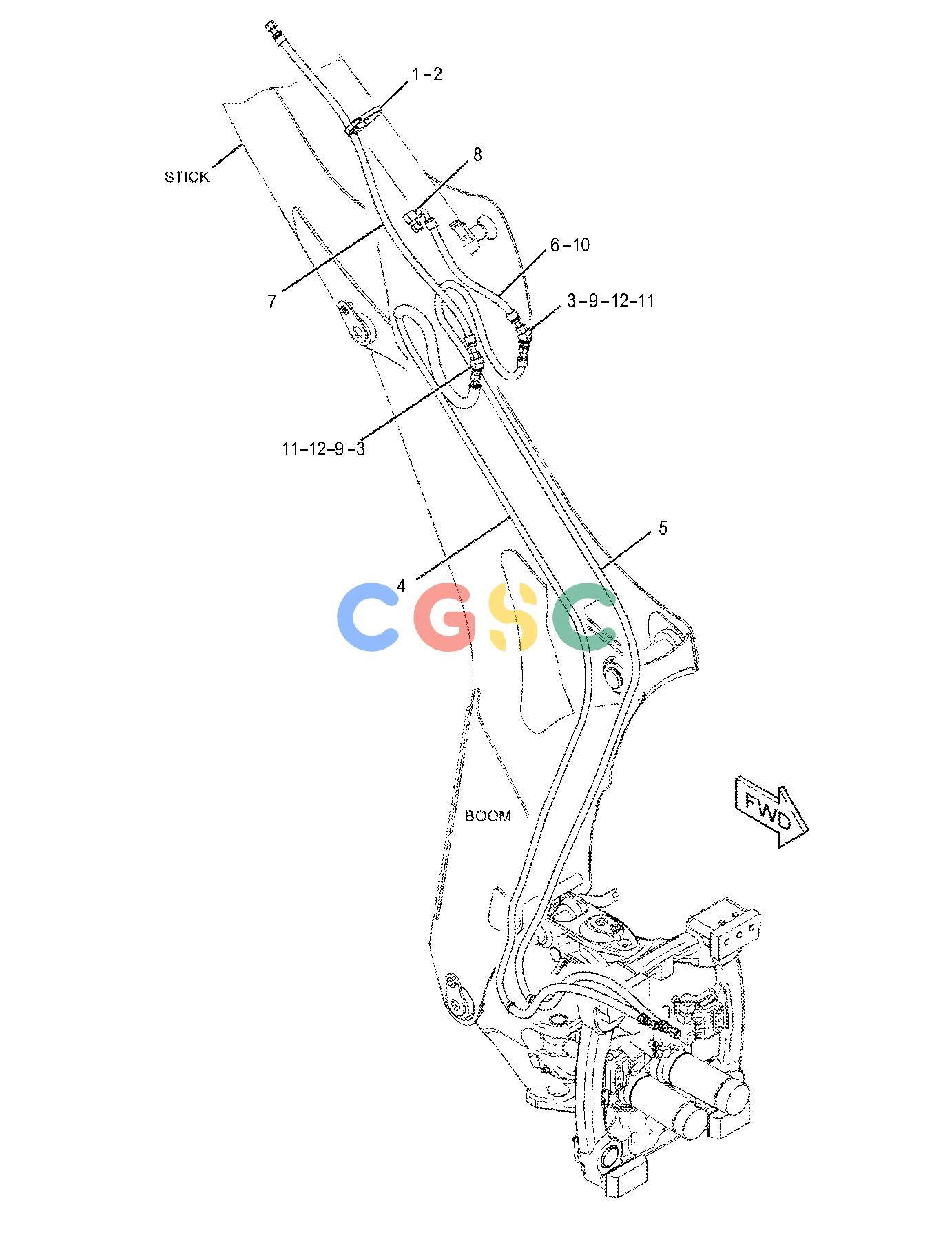

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-0599 | [1] | CLAMP-BAND | |
| 2. | 9R-5948 | [1] | BLOCK | |
| 3. | 281-5983 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8989 | [1] | ELBOW | |
| | 228-7091 | [2] | SEAL-O-RING | |
| 4. | 324-7598I | [1] | HOSE AS | |
| 5. | 324-7599I | [1] | HOSE AS | |
| 6. | 332-1025I | [1] | HOSE AS | |
| 7. | 334-7947I | [1] | HOSE AS | |
| 8. | 148-8393 | [1] | ELBOW AS | |
| | 6V-9852 | [1] | ELBOW(SWIVEL) | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 9. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 10. | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 2H-3924 | [2] | LOCKWASHER | |
| 12. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
