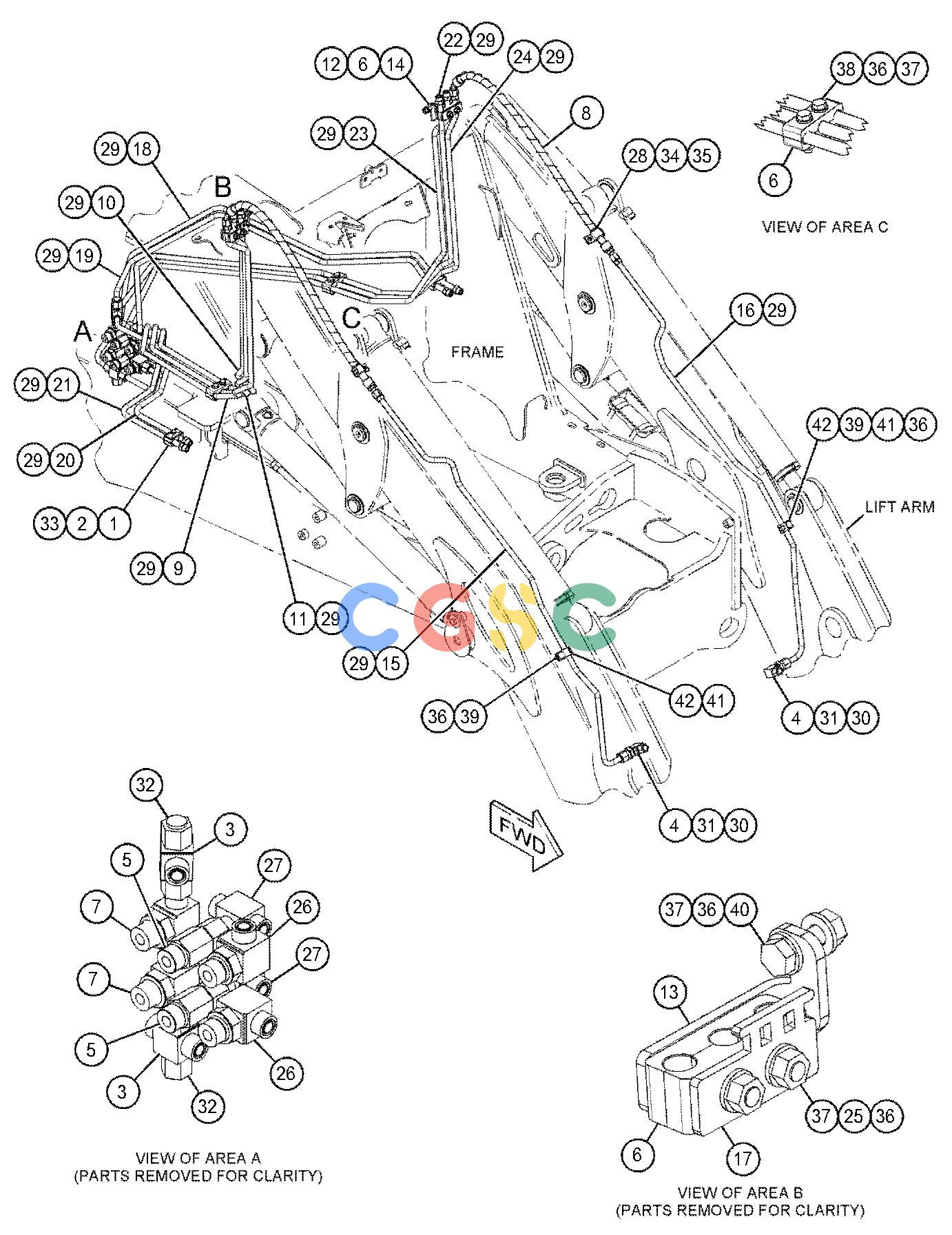

卡特零件查询（434F2） 441-9171: LINES GP-LIFT & TILT

广数供应链运营团队, 18 02月, 2025，浏览： 990 次

Pos.	Part No	Qty	Parts name
1.	6W-2463	[4]	CLAMP
2.	102-8703	[2]	PLATE-COVER
3.		[2]	UNION AS-CROSS
			(EACH INCLUDES)
	7J-9108	[4]	SEAL-O-RING
	260-9136	[1]	CROSS-UNION
4.	281-5969	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-9796	[1]	ELBOW
	7J-9108	[1]	SEAL-O-RING
5.	287-7269	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	287-7268	[1]	CONNECTOR
6.	329-3820	[8]	CLAMP
7.	330-9752	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	330-9591	[1]	ELBOW
8.	362-1590I	[2]	HOSE AS
9.	362-1600	[1]	TUBE AS
10.	363-6273	[1]	TUBE AS
11.	363-6274	[1]	TUBE AS
12.	367-9557	[1]	PLATE
13.	373-5978	[1]	PLATE
14.	374-0840	[1]	PLATE
15.	379-3651	[1]	TUBE AS
16.	379-3652	[1]	TUBE AS
17.	386-1187	[1]	PLATE
18.	396-5351	[1]	TUBE AS
19.	437-1091	[1]	TUBE AS
20.	439-3484	[1]	TUBE AS
21.	439-3485	[1]	TUBE AS
22.	457-1916	[1]	TUBE AS
23.	457-1917	[1]	TUBE AS
24.	457-1918	[1]	TUBE AS
25.	085-8091M	[4]	BOLT(M10X1.5X55-MM)
26.	148-8382	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8T-0404	[1]	ELBOW
27.	150-4031	[2]	TEE AS
			(EACH INCLUDES)
	6V-9845	[1]	TEE-SWIVEL
	7J-9108	[2]	SEAL-O-RING
28.	5G-3676	[2]	GROMMET
29.	6V-8398	[18]	SEAL-O-RING
30.	6V-9170	[2]	NUT-BULKHEAD(1-14-THD)
31.	6V-9830	[2]	CAP(ORFS)
32.	6V-9831	[2]	CAP(ORFS)
33.	7X-2537M	[2]	BOLT(M8X1.25X35-MM)
34.	8T-1889	[2]	CLIP(SLOT)
35.	8T-1890	[2]	CLIP(TAB)
36.	8T-4121	[22]	WASHER-HARD(11X21X2.5-MM THK)
37.	8T-4133M	[10]	NUT(M10X1.5-THD)
38.	8T-4185M	[4]	BOLT(M10X1.5X50-MM)
39.	8T-4195M	[2]	BOLT(M10X1.5X30-MM)
40.	8T-4196M	[2]	BOLT(M10X1.5X35-MM)
41.	9R-1004	[2]	CLIP(TAB)
42.	9R-1005	[2]	CLIP(SLOT)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
