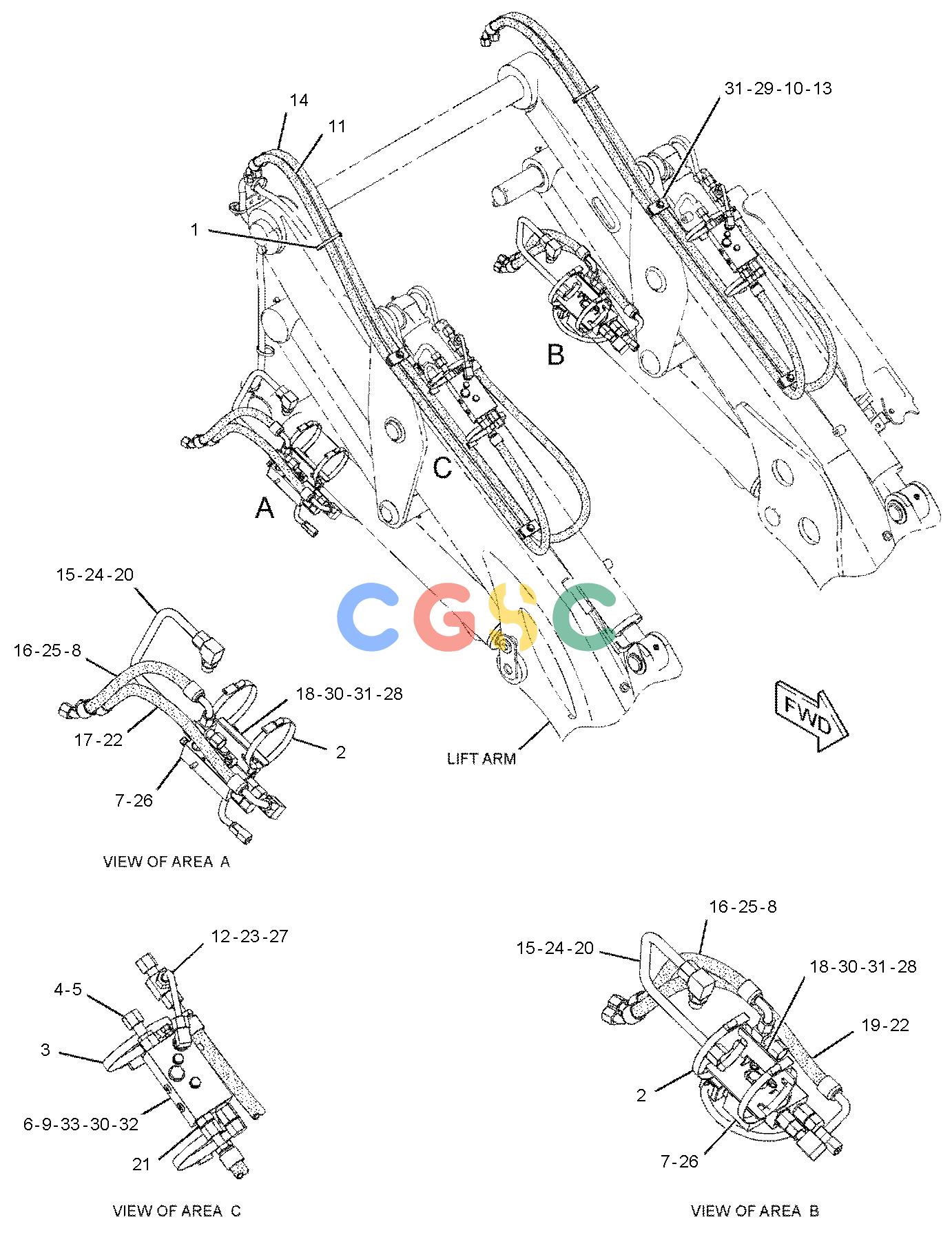

卡特零件查询（434F2） 379-3673: LINES GP-LIFT & TILT CYLINDER
广数供应链运营团队, 18 02月, 2025，浏览：
793 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [2] | STRAP-CABLE | |
| 2. | 8T-6726 | [4] | CLAMP-HOSE | |
| 3. | 9M-6738 | [4] | CLAMP-HOSE | |
| 4. | 161-9916 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-7420 | [1] | ADAPTER | |
| 5. | 250-1440 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7X-3164 | [1] | ADAPTER-SWIVEL | |
| 6. | 262-7079 | [2] | VALVE GP-CHECK(PILOT CONTROL) | |
| 7. | 262-7081 | [2] | VALVE GP-LOAD CONTROL(LIFT & TILT) | |
| 8. | 287-7327 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 287-7326 | [1] | TEE-SWIVEL | |
| 9. | 346-5517 | [2] | BRACKET | |
| 10. | 362-1426 | [4] | CLAMP | |
| 11. | 362-1599I | [2] | HOSE AS | |
| 12. | 366-4354 | [2] | TUBE AS | |
| 13. | 373-6484 | [4] | PLATE | |
| 14. | 374-7889I | [2] | HOSE AS | |
| 15. | 382-7423 | [2] | TUBE AS | |
| 16. | 382-7425I | [2] | HOSE AS | |
| 17. | 382-7426I | [1] | HOSE AS | |
| 18. | 382-7427 | [2] | BRACKET | |
| 19. | 386-9252I | [1] | HOSE AS | |
| 20. | 148-8315 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8642 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 21. | 148-8345 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 22. | 148-8370 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 23. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 24. | 148-8390 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 25. | 150-3070 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4I-6287 | [1] | COUPLING | |
| 26. | 164-5557 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5I-4370 | [1] | CONNECTOR | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 27. | 206-5123 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 206-5122 | [1] | TEE | |
| 28. | 3T-0852M | [4] | LOCKNUT(M8X1.25-THD) | |
| 29. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 30. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-6869M | [8] | BOLT(M8X1.25X60-MM) | |
| 32. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 33. | 8T-7963M | [4] | LOCKNUT(M8X1.25-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
