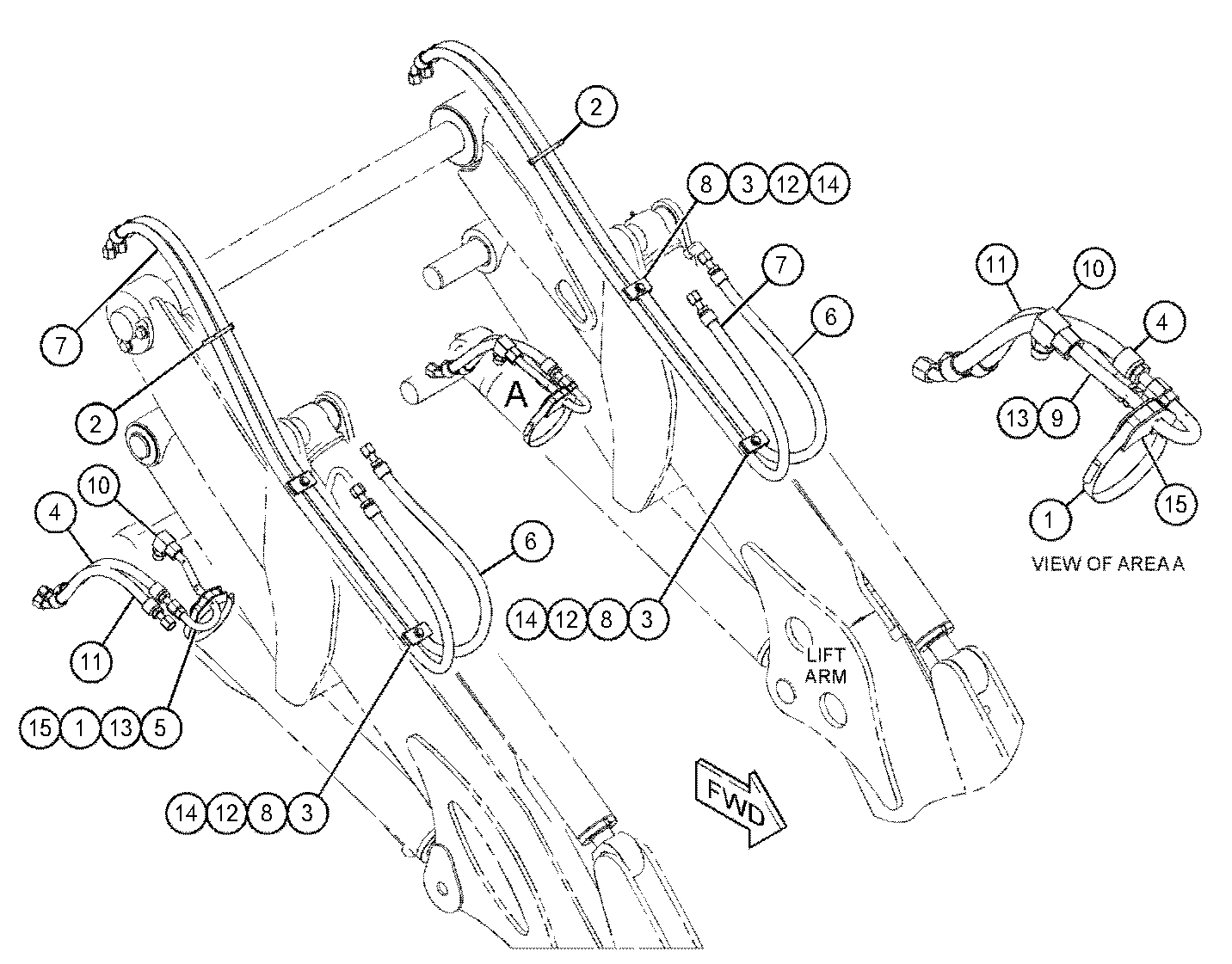

卡特零件查询（434F2） 396-6938: LINES GP-LIFT & TILT CYLINDER
广数供应链运营团队, 18 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-0599 | [2] | CLAMP-BAND | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 362-1426 | [4] | CLAMP | |
| 4. | 362-1604I | [2] | HOSE AS | |
| 5. | 384-3213 | [1] | TUBE AS | |
| 6. | 371-8717I | [2] | HOSE AS | |
| 7. | 371-8718I | [2] | HOSE AS | |
| 8. | 373-6484 | [4] | PLATE | |
| 9. | 384-3716 | [1] | TUBE AS | |
| 10. | 148-8390 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 396-6936I | [2] | HOSE AS | |
| 12. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 6V-8398 | [2] | SEAL-O-RING | |
| 14. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| 15. | 9R-0982 | [2] | BLOCK | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
