卡特零件查询（434F2） 326-1803: LINES GP-SWING

广数供应链运营团队, 18 02月, 2025，浏览： 466 次

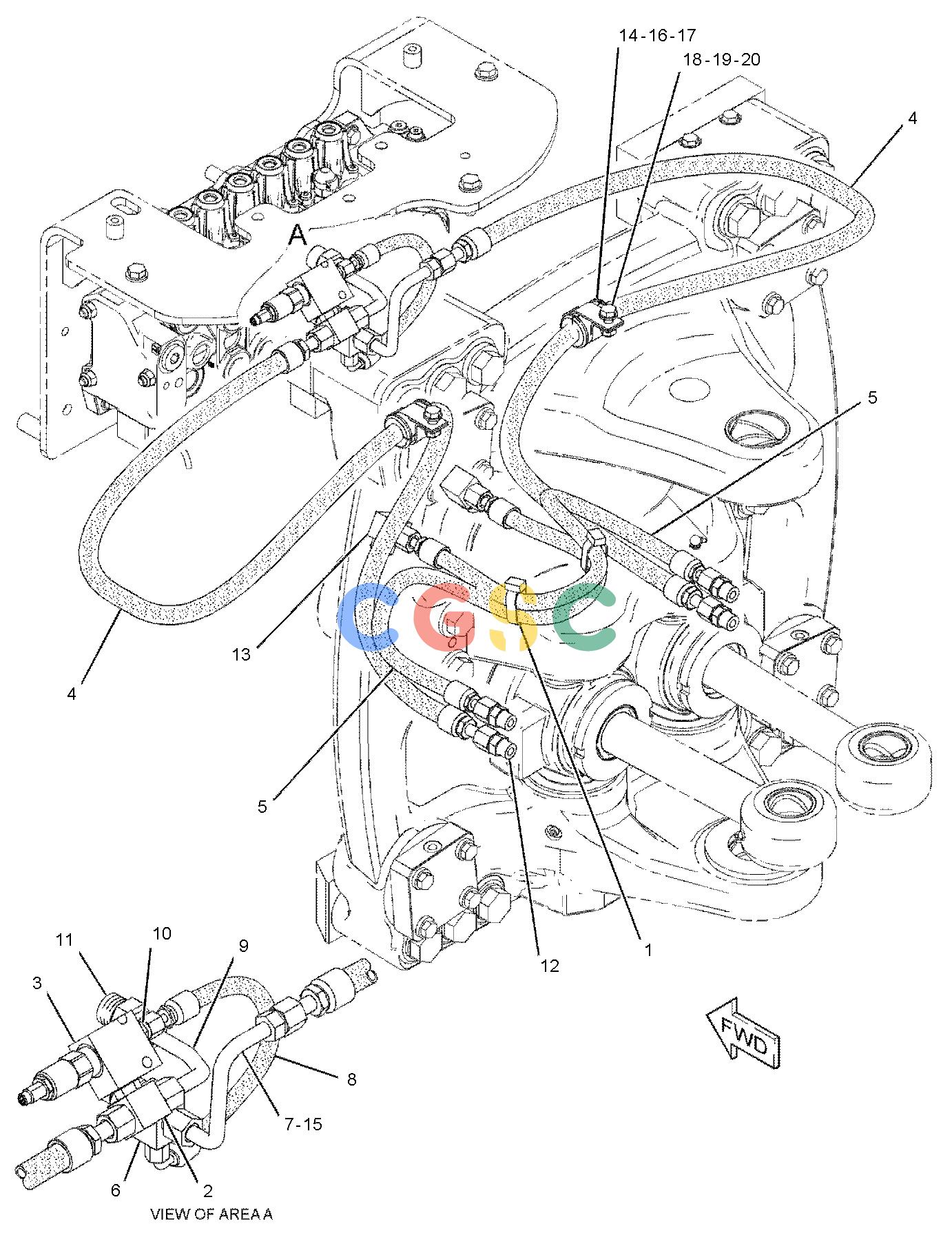

Pos.	Part No	Qty	Parts name
1.	204-2281	[2]	STRAP-CABLE
2.	287-7252	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	287-7251	[1]	TEE
3.	320-7812J	[1]	VALVE GP-PRESSURE CONTROL(RELIEF)
4.	328-5333I	[2]	HOSE AS
5.	362-8279I	[2]	HOSE AS
6.	341-0121	[1]	TEE AS
	3D-2824	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	119-6346	[1]	TEE-FACE SEAL
7.	344-8098	[1]	TUBE AS
8.	344-8154I	[1]	HOSE AS
9.	344-8163	[1]	TUBE AS
10.	148-8325	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
11.	148-8328	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8633	[1]	CONNECTOR
12.	148-8340	[4]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
13.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
14.	6V-1249	[2]	GROMMET(22-MM ID)
15.	6V-8398	[1]	SEAL-O-RING
16.	8T-1899	[2]	CLIP(SLOT)
17.	8T-1900	[2]	CLIP(TAB)
18.	8T-4121	[4]	WASHER-HARD(11X21X2.5-MM THK)
19.	6V-7744M	[2]	LOCKNUT(M10X1.5-THD)
20.	8T-4195M	[2]	BOLT(M10X1.5X30-MM)

			AVAILABLE REPAIR KIT(S):
	439-8647J	[1]	KIT-SEAL
			(INCLUDES SEALS)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
