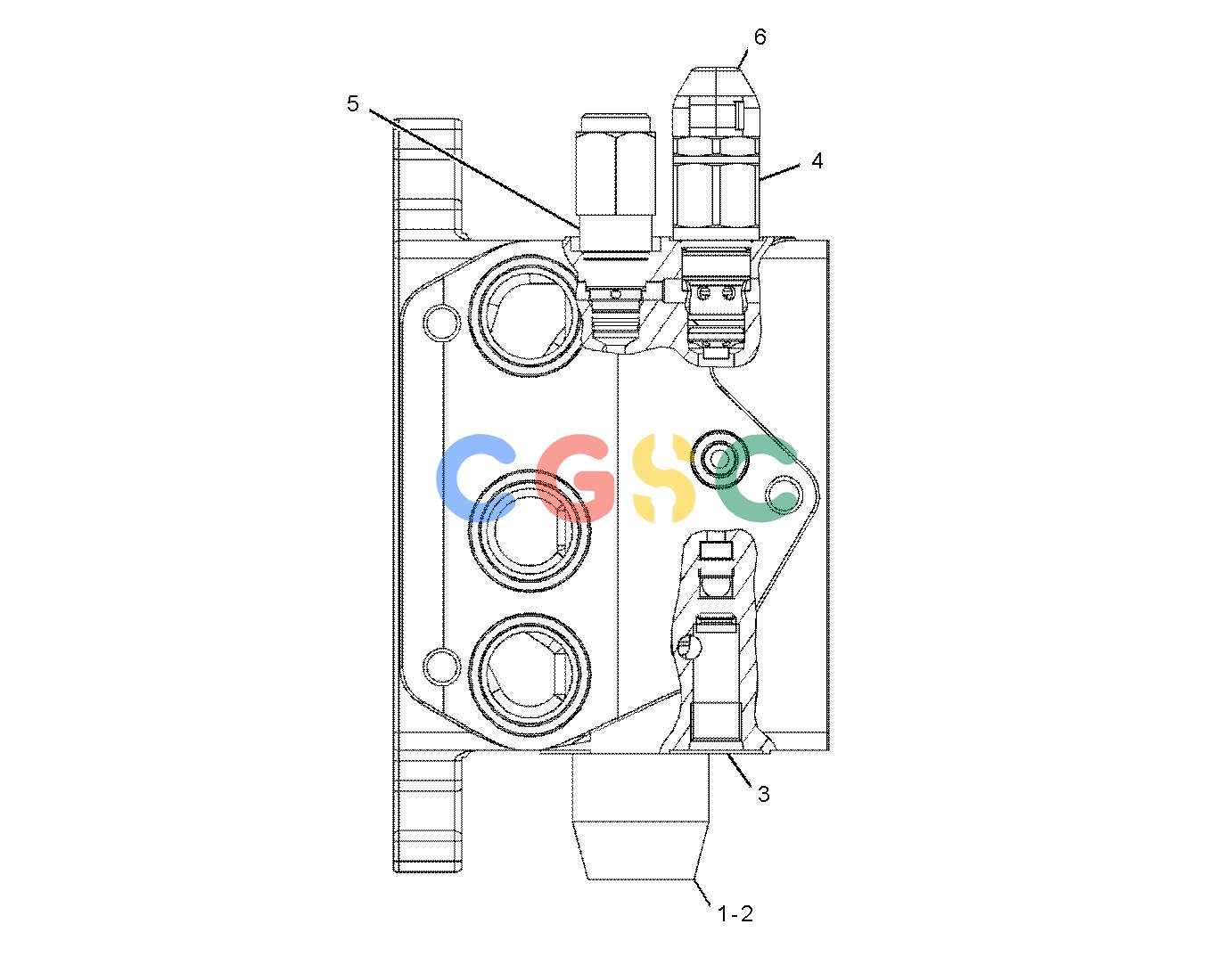

卡特零件查询（434F2） 389-3097: MANIFOLD GP-CONTROL
广数供应链运营团队, 18 02月, 2025，浏览：
401 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 308-2890 | [1] | KIT-VALVE(REGULATOR) | |
| | | | (ALSO INCLUDES CAP, SPACER, SPRING RETAINER & SPRING) |
| | 2K-8199 | [1] | SEAL-O-RING | |
| 2. | 308-2889 | [1] | KIT-VALVE(PRIORITY) | |
| 3. | 341-4727 | [1] | KIT-SHUTTLE VALVE(INLET) | |
| 4. | 330-3979 | [1] | VALVE GP-RELIEF(OUTLET MANIFOLD) | |
| 5. | 227-1185 | [1] | VALVE GP-FLOW CONTROL(AUXILIARY, INLET) | |
| | 227-1198 | [1] | SEAL GP(FLOW CONTROL VALVE) | |
| | 114-1042 | [1] | SEAL-O-RING | |
| | 115-6880 | [1] | RING-BACKUP(11-MM ID) | |
| | 122-9250 | [1] | SEAL-O-RING | |
| 6. | 257-0468 | [1] | CAP-PROTECTION | |
