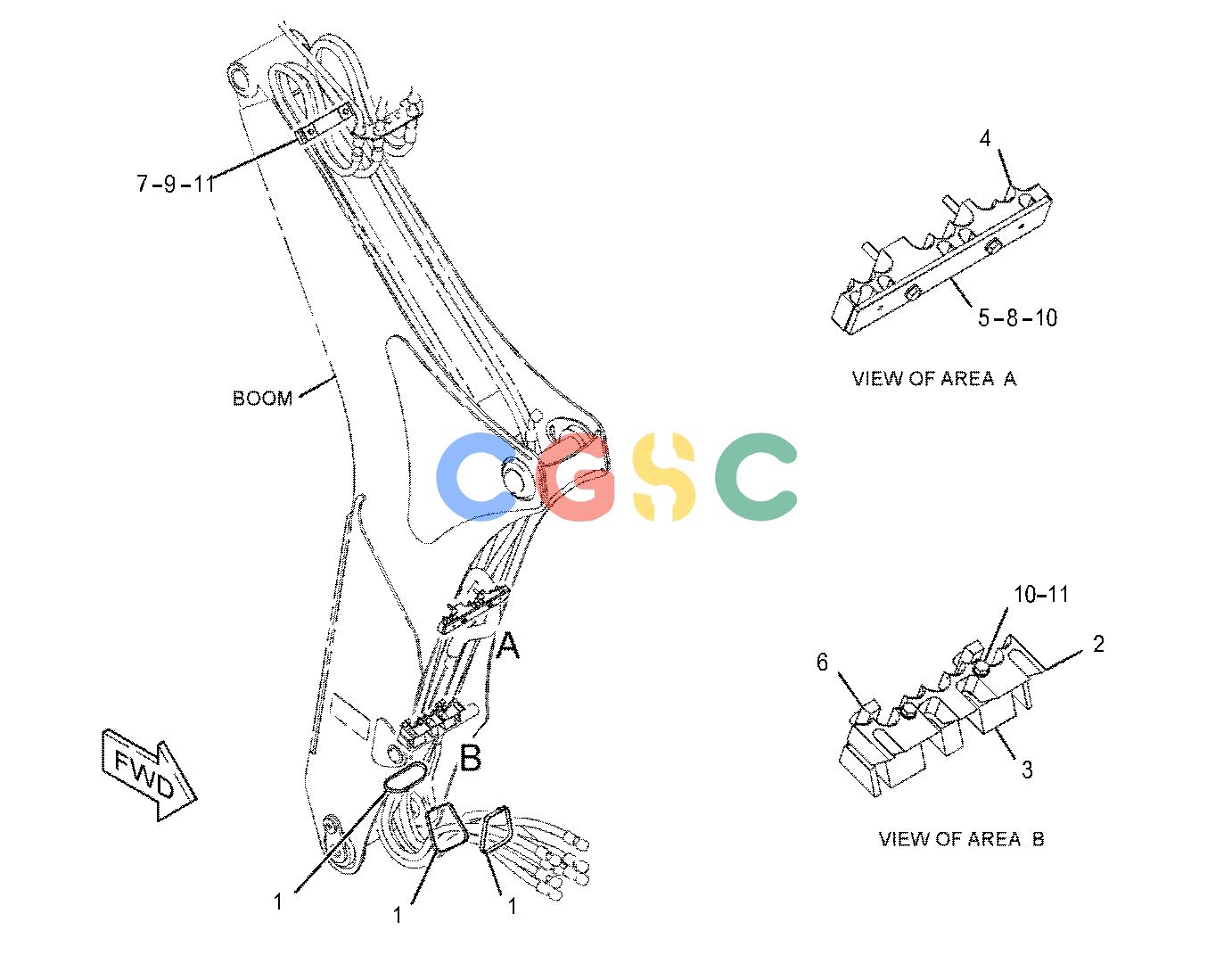

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5P-5148 | [3] | STRAP-CABLE | |
| 2. | 315-7645 | [1] | CLAMP | |
| 3. | 315-7646 | [1] | CLAMP | |
| 4. | 315-7647 | [1] | CLAMP | |
| 5. | 327-3753 | [1] | PLATE | |
| 6. | 332-0092 | [2] | BLOCK | |
| 7. | 343-7400 | [1] | CLAMP | |
| 8. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 9. | 367-9552 | [2] | PLATE | |
| 10. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| M | METRIC PART | |||
