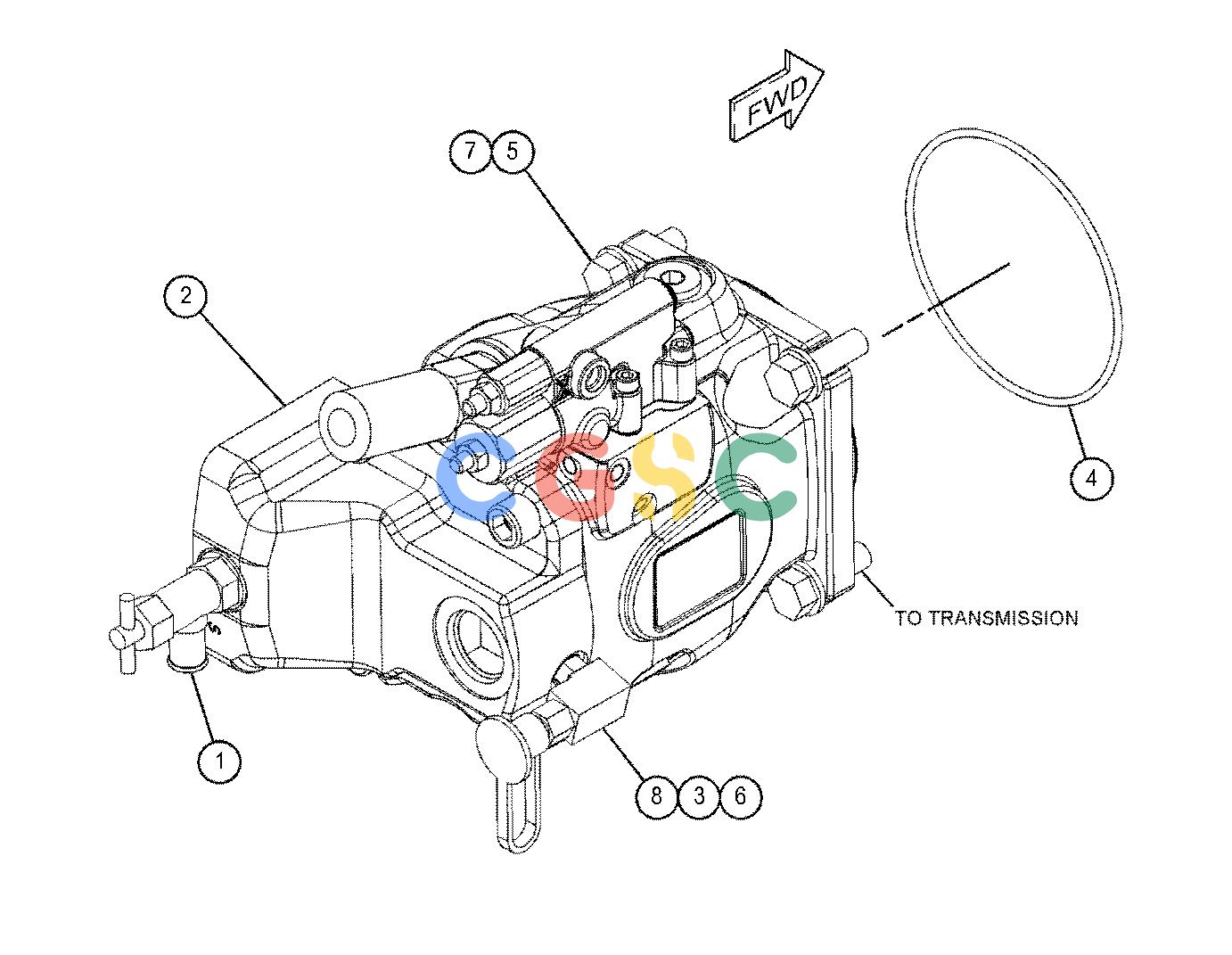

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 165-2273 | [1] | VALVE AS-SHUTOFF | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-7238 | [1] | VALVE-SHUTOFF | ||
| 2. | 455-7978Y | [1] | PUMP GP-PISTON | |
| 3. | 110-6349 | [1] | FITTING AS(QUICK DISCONNECT) | |
| 3J-7354 | [1] | SEAL-O-RING | ||
| 4. | 175-7904 | [1] | SEAL-O-RING | |
| 5. | 6C-3241 | [4] | BOLT(1/2-13X1.5-IN) | |
| 6. | 6V-0852 | [1] | CAP-DUST | |
| 7. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 287-7341 | [1] | ELBOW AS | |
| 3J-7354 | [1] | SEAL-O-RING | ||
| Y | SEPARATE ILLUSTRATION | |||
