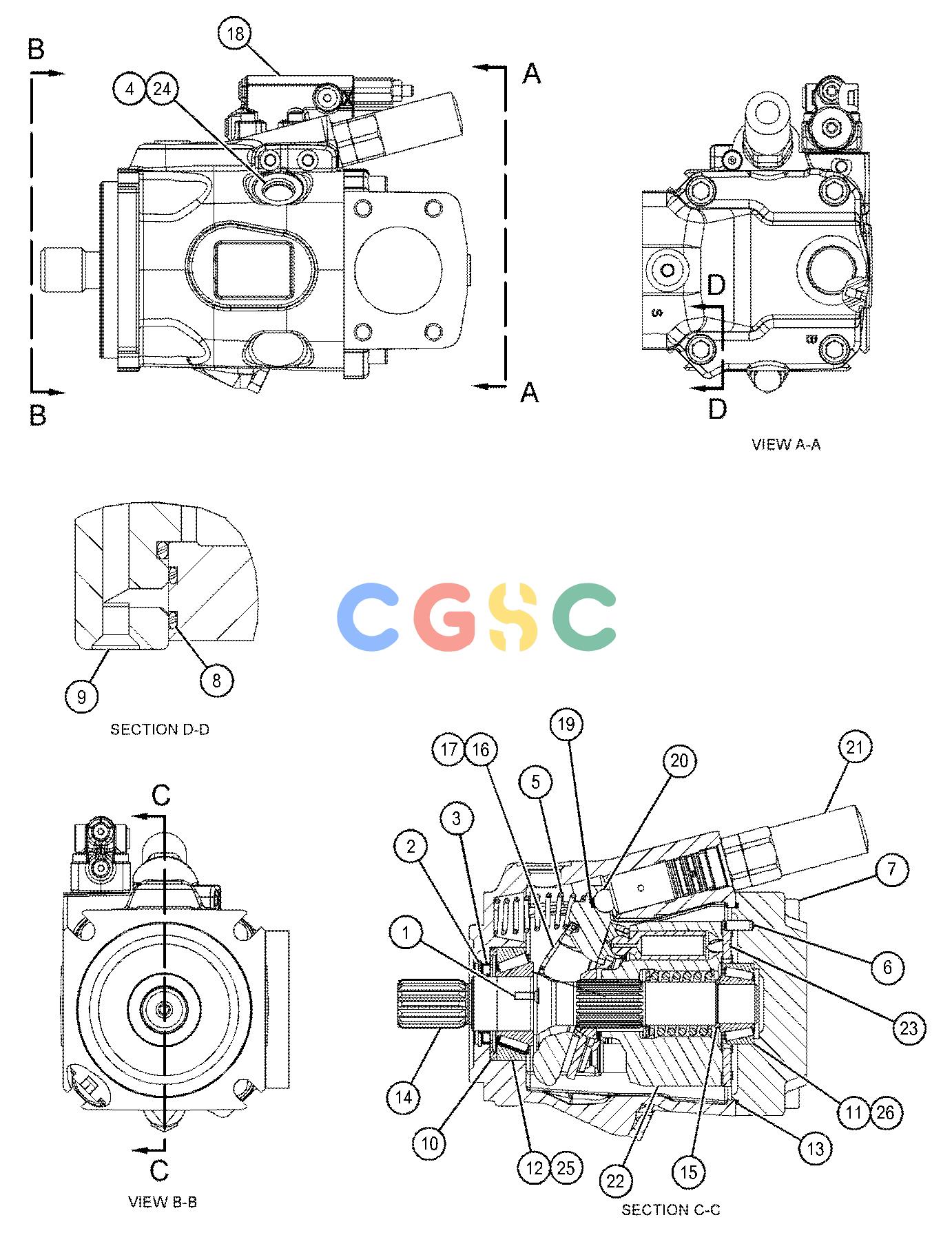

卡特零件查询（434F2） 455-7978: PUMP GP-PISTON
广数供应链运营团队, 18 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6R-7943M | [2] | SCREW(M5X0.8X15-MM) | |
| 2. | 180-6213 | [1] | RING-RETAINING | |
| 3. | 258-0139 | [1] | SEAL-SHAFT | |
| 4. | 2M-9780 | [3] | SEAL-O-RING | |
| 5. | 386-6610 | [1] | SPRING | |
| 6. | 146-3493 | [1] | PIN | |
| 7. | 8T-2503M | [4] | BOLT-SOCKET HEAD(M14X2X35-MM) | |
| 8. | 168-3504 | [2] | SEAL | |
| 9. | 120-4394 | [2] | PLUG-BREAK OFF | |
| 10. | 190-6507 | [1] | RING-STOP | |
| 11. | 9W-2110 | [1] | CUP-TAPERED ROLLER | |
| 12. | 8J-0412 | [1] | CUP-BEARING | |
| 13. | 192-7470 | [1] | SEAL-O-RING | |
| 14. | 455-7981 | [1] | SHAFT | |
| 15. | 168-2203 | [1] | SHIM-SHAFT(3-MM THK) | |
| 16. | 386-6612 | [1] | BEARING-CRADLE(RIGHT) | |
| 17. | 386-6611 | [1] | BEARING-CRADLE(LEFT) | |
| 18. | 398-7457Y | [1] | VALVE GP-PUMP CONTROL(FLOW COMPENSATOR) | |
| 19. | 379-5187 | [1] | SPRING | |
| 20. | 333-7840 | [1] | STOP | |
| 21. | 423-0079 | [1] | VALVE GP-PUMP CONTROL(TORQUE LIMITING SPOOL) | |
| 22. | 421-1060 | [1] | ROTATING GP-PUMP | |
| 23. | 279-2491 | [1] | PLATE-PORT | |
| 24. | 9S-8006 | [3] | PLUG(7/8-14-THD) | |
| 25. | 3P-1210 | [1] | CONE-BEARING | |
| 26. | 9W-2109 | [1] | CONE-BEARING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
