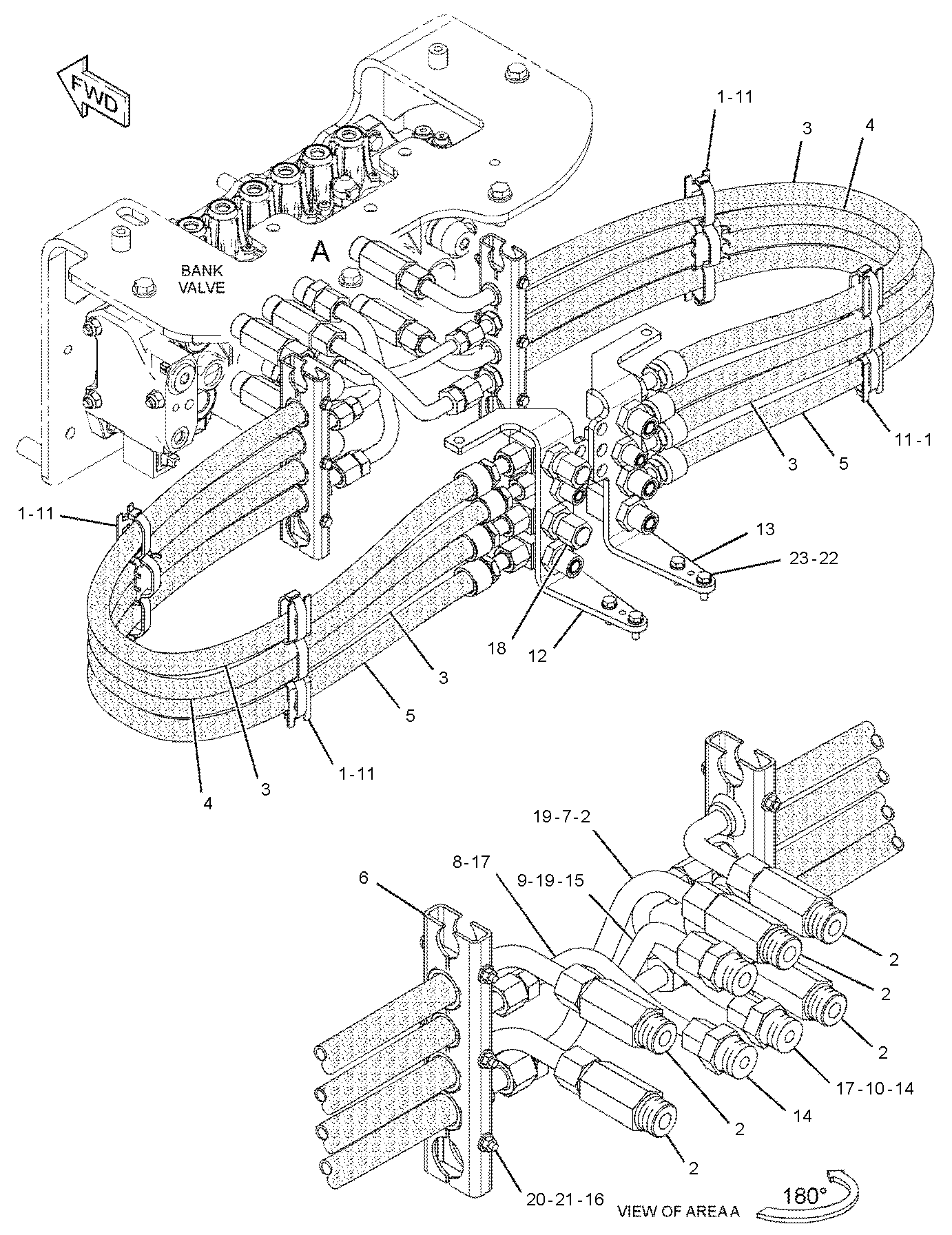

卡特零件查询（434F2） 321-7231: LINES GP-BACKHOE
广数供应链运营团队, 18 02月, 2025，浏览：
132 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [12] | STRAP | |
| 2. | 260-9214 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 260-9213 | [1] | CONNECTOR | |
| 3. | 319-6906I | [4] | HOSE AS | |
| 4. | 319-6907I | [2] | HOSE AS | |
| 5. | 319-6908I | [2] | HOSE AS | |
| 6. | 320-8438 | [4] | CLAMP | |
| 7. | 323-9083 | [1] | TUBE AS | |
| 8. | 323-9084 | [1] | TUBE AS | |
| 9. | 323-9085 | [1] | TUBE AS | |
| 10. | 323-9086 | [1] | TUBE AS | |
| 11. | 333-0739 | [4] | PLATE | |
| 12. | 344-2170 | [1] | FITTING & MTG GP-HYDRAULIC | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 7J-9108 | [6] | SEAL-O-RING | |
| | 327-0223 | [1] | FITTING & MTG GP-HYDRAULIC | |
| 13. | 344-2171 | [1] | FITTING & MTG GP-HYDRAULIC | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 7J-9108 | [6] | SEAL-O-RING | |
| | 327-0222 | [1] | FITTING & MTG GP-HYDRAULIC | |
| 14. | 148-8328 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 15. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 16. | 5C-2890M | [5] | NUT(M6X1-THD) | |
| 17. | 6V-8398 | [2] | SEAL-O-RING | |
| 18. | 6V-9831B | [2] | CAP(ORFS) | |
| 19. | 7J-9108 | [2] | SEAL-O-RING | |
| 20. | 8T-3844M | [6] | BOLT(M6X1X70-MM) | |
| 21. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 22. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
