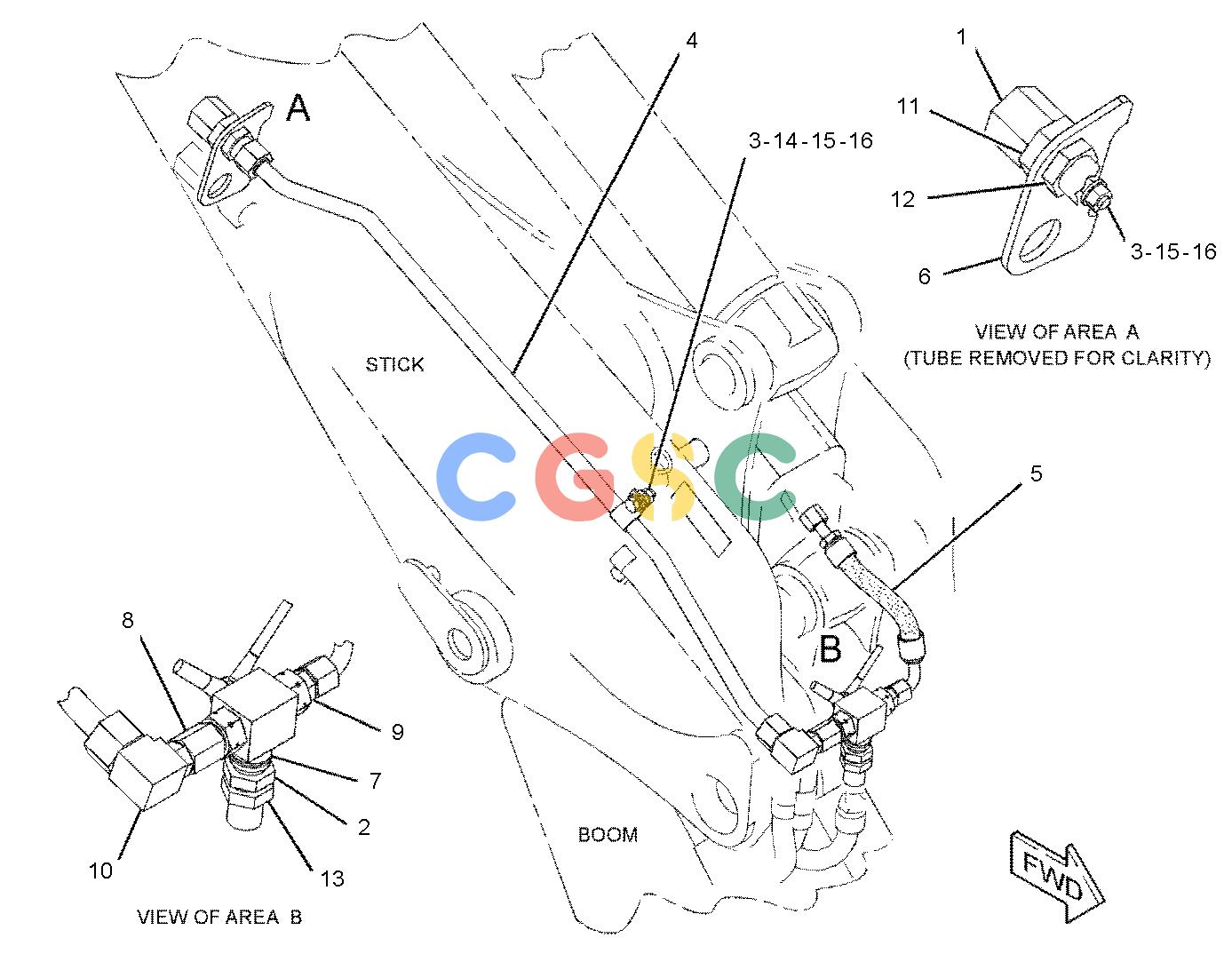

卡特零件查询（434F2） 321-7183: LINES GP-BACKHOE AUXILIARY
广数供应链运营团队, 18 02月, 2025，浏览：
942 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 123-7637 | [1] | CAP | |
| 2. | 171-1357 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 160-5083 | [1] | CONNECTOR | |
| 3. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 4. | 321-6383 | [1] | TUBE AS | |
| 5. | 324-7612I | [1] | HOSE AS | |
| 6. | 331-3770 | [1] | PLATE | |
| 7. | 333-1320 | [1] | VALVE-MANUAL(AUXILIARY) | |
| 8. | 148-8311 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-1715 | [1] | ADAPTER | |
| 9. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8359 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9877 | [1] | ELBOW | |
| 11. | 150-3053 | [1] | CONNECTOR AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 108-3872 | [1] | CONNECTOR | |
| 12. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 13. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 14. | 8K-1117 | [1] | CLAMP | |
| 15. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
