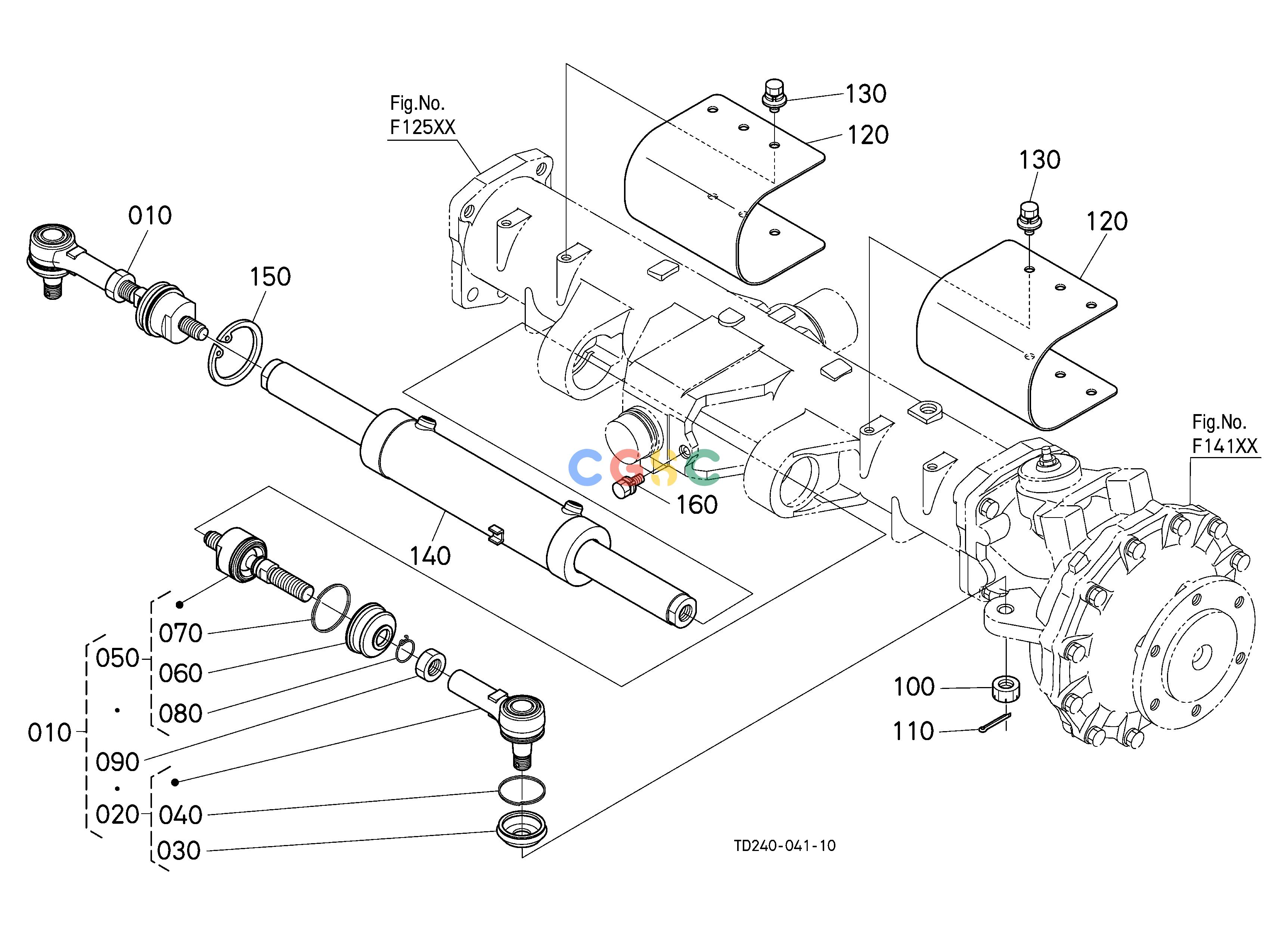

久保田零件查询G18002 TIE ROD/STEERING CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD27013700
|
[2] |
ASSY ROD,TIE
|
3.4320(lbs); 1.560
|
| 020. |
TD27013710
|
[2] |
END,TIE ROD
|
1.6060(lbs); 0.730
|
| 030. |
TD27062850
|
[2] |
COVER,DUST
|
0.0220(lbs); 0.010
|
| 040. |
TD27062860
|
[2] |
CLIP
|
0.0088(lbs); 0.004
|
| 050. |
TD27044660
|
[2] |
JOINT,TIE ROD
|
1.7160(lbs); 0.780
|
| 060. |
TD27044680
|
[2] |
COVER,DUST
|
0.0396(lbs); 0.018
|
| 070. |
TD27062870
|
[2] |
RING SET
|
0.0088(lbs); 0.004
|
| 080. |
TD27044690
|
[2] |
CLIP
|
0.0044(lbs); 0.002
|
| 090. |
0217250200
|
[2] |
HEX.NUT
|
0.0660(lbs); 0.030
|
| 100. |
3586062750
|
[2] |
NUT
|
0.0880(lbs); 0.040
|
| 110. |
0551150335
|
[2] |
PIN,SPLIT
|
0.0044(lbs); 0.002
|
| 120. |
TD06014312
|
[2] |
COVER
|
2.6400(lbs); 1.200
|
| 130. |
0113551020
|
[6] |
BOLT,W SEMS
|
0.0528(lbs); 0.024
|
| 140. |
TD27037800
|
[1] |
CYLINDER,HYDRAULIC
|
18.0400(lbs); 8.200
|
| 150. |
0461100680
|
[1] |
CIR-CLIP,INTERNAL
|
0.0352(lbs); 0.016
|
| 160. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
