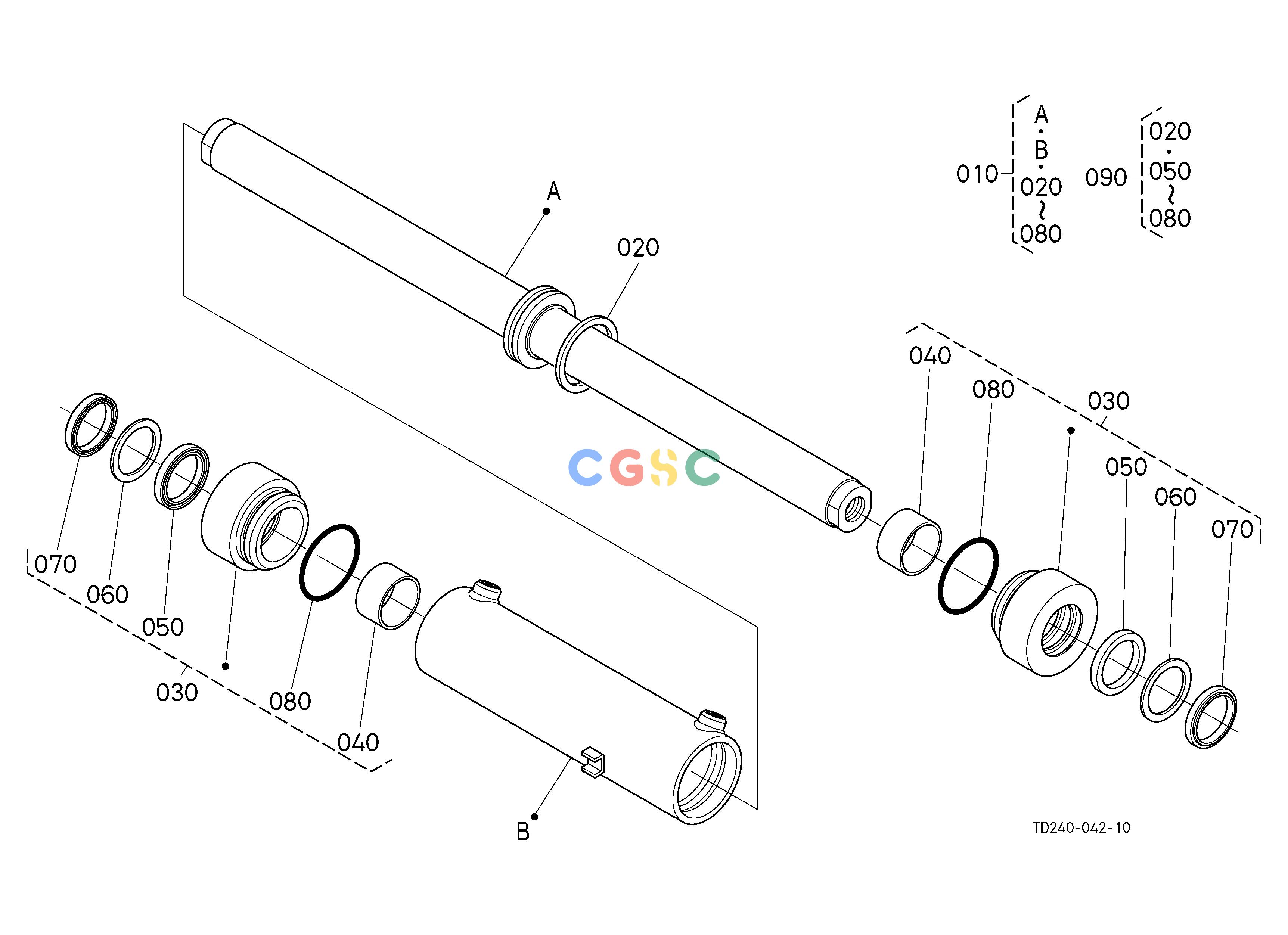

久保田零件查询G18502 STEERING CYLINDER [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD27037800
|
[1] |
CYLINDER,HYDRAULIC
|
18.0400(lbs); 8.200
|
| 020. |
TD27037570
|
[1] |
SEAL,PISTON
|
0.0132(lbs); 0.006
|
| 030. |
TD27037840
|
[2] |
ASSY END,ROD
|
1.6280(lbs); 0.740
|
| 040. |
TD27037920
|
[2] |
BUSH
|
0.0880(lbs); 0.040
|
| 050. |
TD27037560
|
[2] |
SEAL,ROD
|
0.0088(lbs); 0.004
|
| 060. |
TD27037930
|
[2] |
RING,BACK UP
|
0.0066(lbs); 0.003
|
| 070. |
TD27037580
|
[2] |
SEAL,DUST
|
0.0066(lbs); 0.003
|
| 080. |
TD27037940
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
TD27037950
|
[1] |
SEAL,KIT
|
0.0770(lbs); 0.035
|
