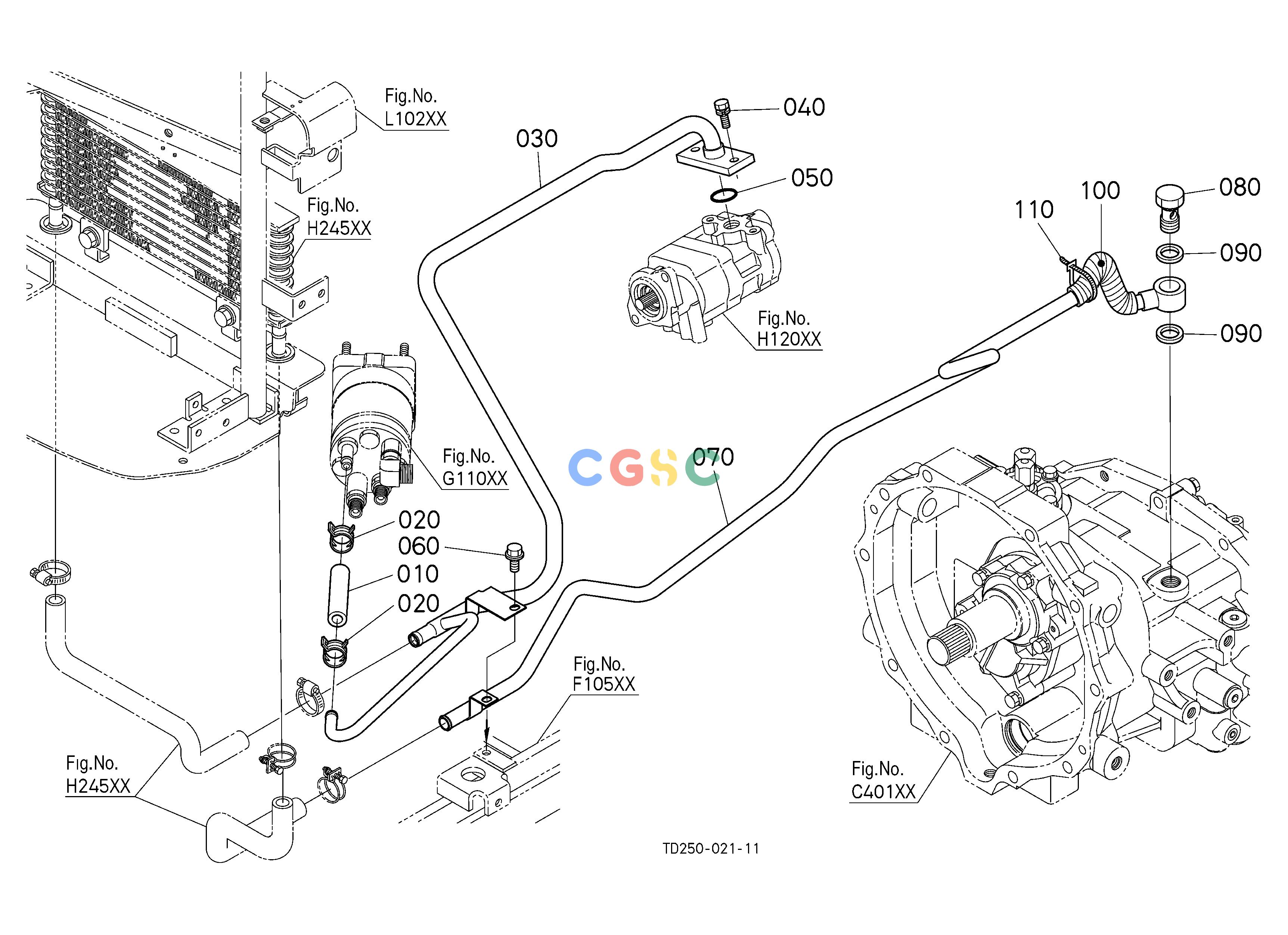

久保田零件查询H24702 OIL COOLER RETURN PIPE [NEW] ## S.No.>=72562 S.No.;>=72562 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06056190
|
[1] |
HOSE(RETURN)
|
0.0440(lbs); 0.020
|
| 020. |
T106033630
|
[2] |
BAND,PIPE
|
0.0132(lbs); 0.006
|
| 030. |
TD17956140
|
[1] |
PIPE,O/C RETURN
|
2.2000(lbs); 1.000
|
| 040. |
0112350820
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 050. |
0481700220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0175450816
|
[1] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 070. |
TD27056130
|
[1] |
PIPE,HST RETURN
|
1.3420(lbs); 0.610
|
| 080. |
TD06056210
|
[1] |
BOLT,EYE JOINT
|
0.1980(lbs); 0.090
|
| 090. |
0471400400
|
[2] |
PACKING
|
0.0066(lbs); 0.003
|
| 100. |
TD06088390
|
[1] |
TUBE
|
0.0220(lbs); 0.010
|
| 110. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
