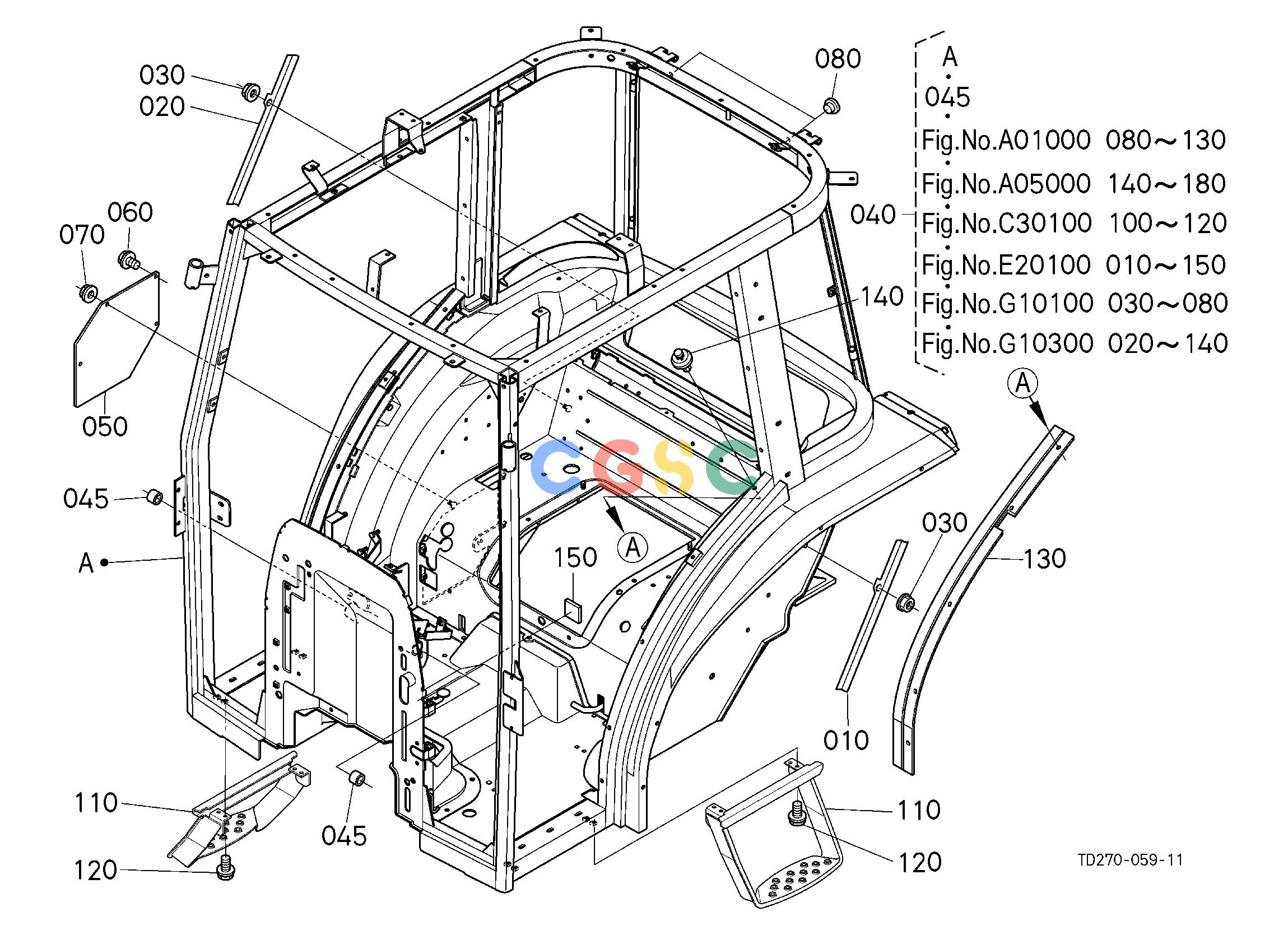

久保田零件查询M10102 CAB FRAME CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
890 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407047512
|
[1] |
GUARD(HARNESS LH)
|
0.3960(lbs); 0.180
|
| 020. |
3407047522
|
[1] |
GUARD(HARNESS RH)
|
0.3432(lbs); 0.156
|
| 030. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 040. |
TD27081000
|
[1] |
COMP.CAB
|
0.0000(lbs); 0.000
|
| 045. |
TD06044080
|
[2] |
BUSH
|
0.0396(lbs); 0.018
|
| 050. |
TD17073822
|
[1] |
PLATE,FENDER
|
2.5960(lbs); 1.180
|
| 060. |
0175450812
|
[3] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
3691952760
|
[2] |
CAP(RUBBER)
|
0.0044(lbs); 0.002
|
| 110. |
TD17078472
|
[2] |
STEP,AUX.
|
4.8400(lbs); 2.200
|
| 120. |
0175450816
|
[8] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 130. |
TD17074110
|
[1] |
MATERIAL,INT.
|
0.7920(lbs); 0.360
|
| 140. |
T027087602
|
[5] |
RIVET,PUSH
|
0.0044(lbs); 0.002
|
| 150. |
3G71071540
|
[1] |
PACKING
|
0.0044(lbs); 0.002
|
