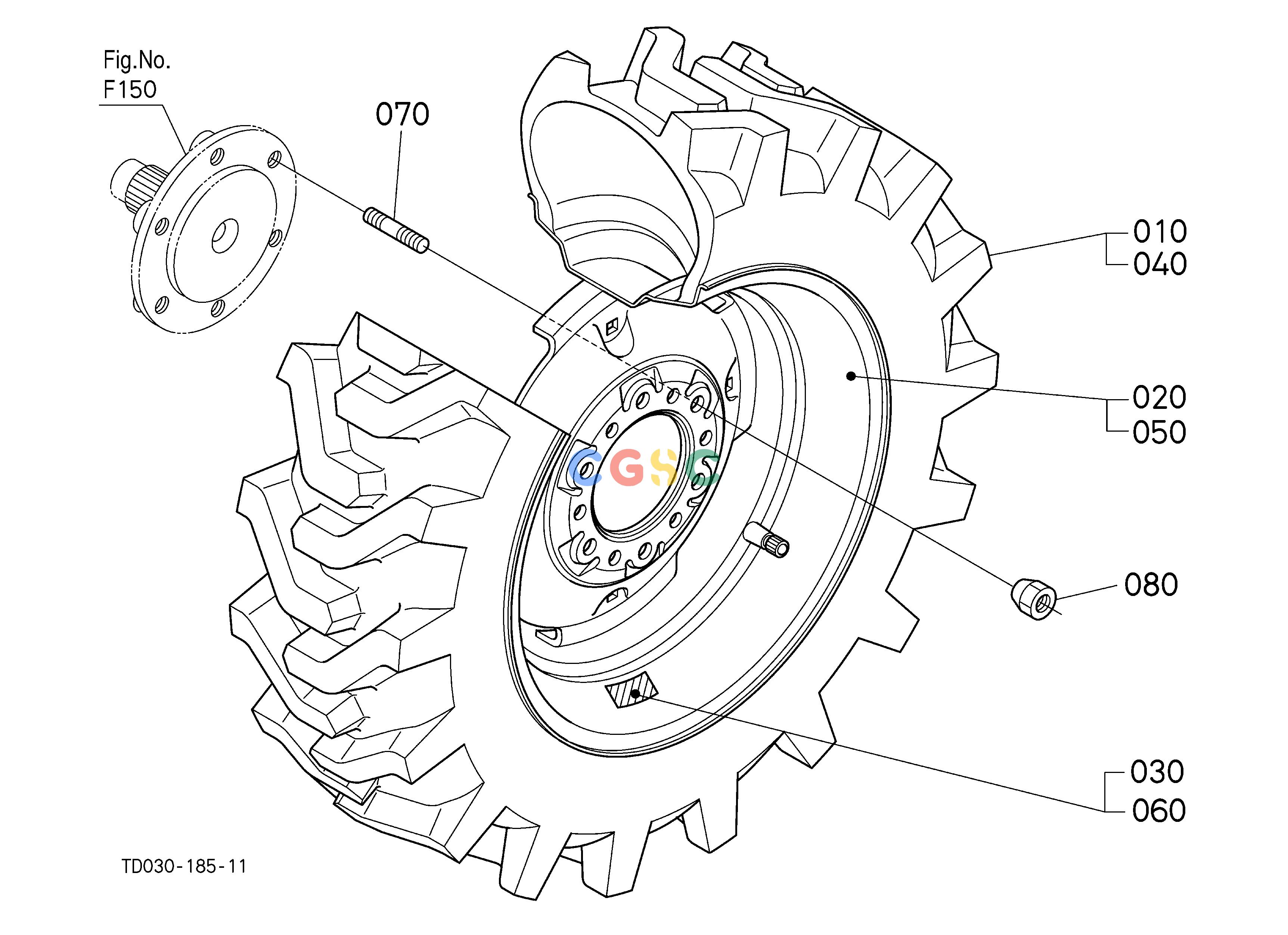

久保田零件查询P10104 FRONT WHEEL(10.0-16.5) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04050930
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 020. |
TA04042420
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
9999999999
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 040. |
TA04050930
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
TA04042420
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
9999999999
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 070. |
TA15049160
|
[12] |
STUD WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
