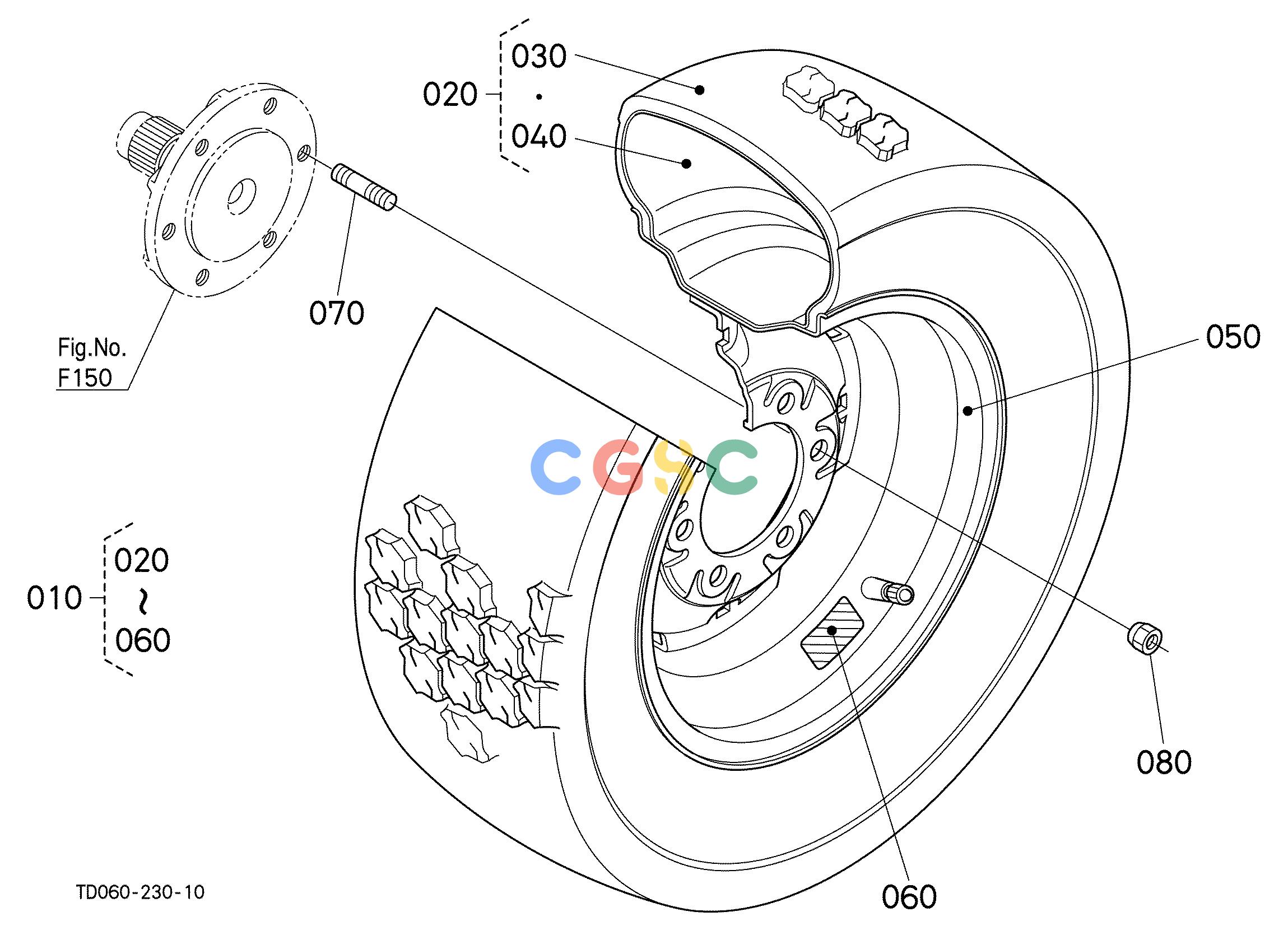

久保田零件查询P10105 FRONT WHEEL(27 10.50-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14011500
|
[2] |
FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
TA14011510
|
[2] |
TIRE ASSY
|
0.0000(lbs); 0.000
|
| 030. |
TA14011520
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
TA14011530
|
[2] |
TUBE
|
0.0000(lbs); 0.000
|
| 050. |
TA14011540
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
9999999999
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 070. |
TA15049160
|
[12] |
STUD WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
