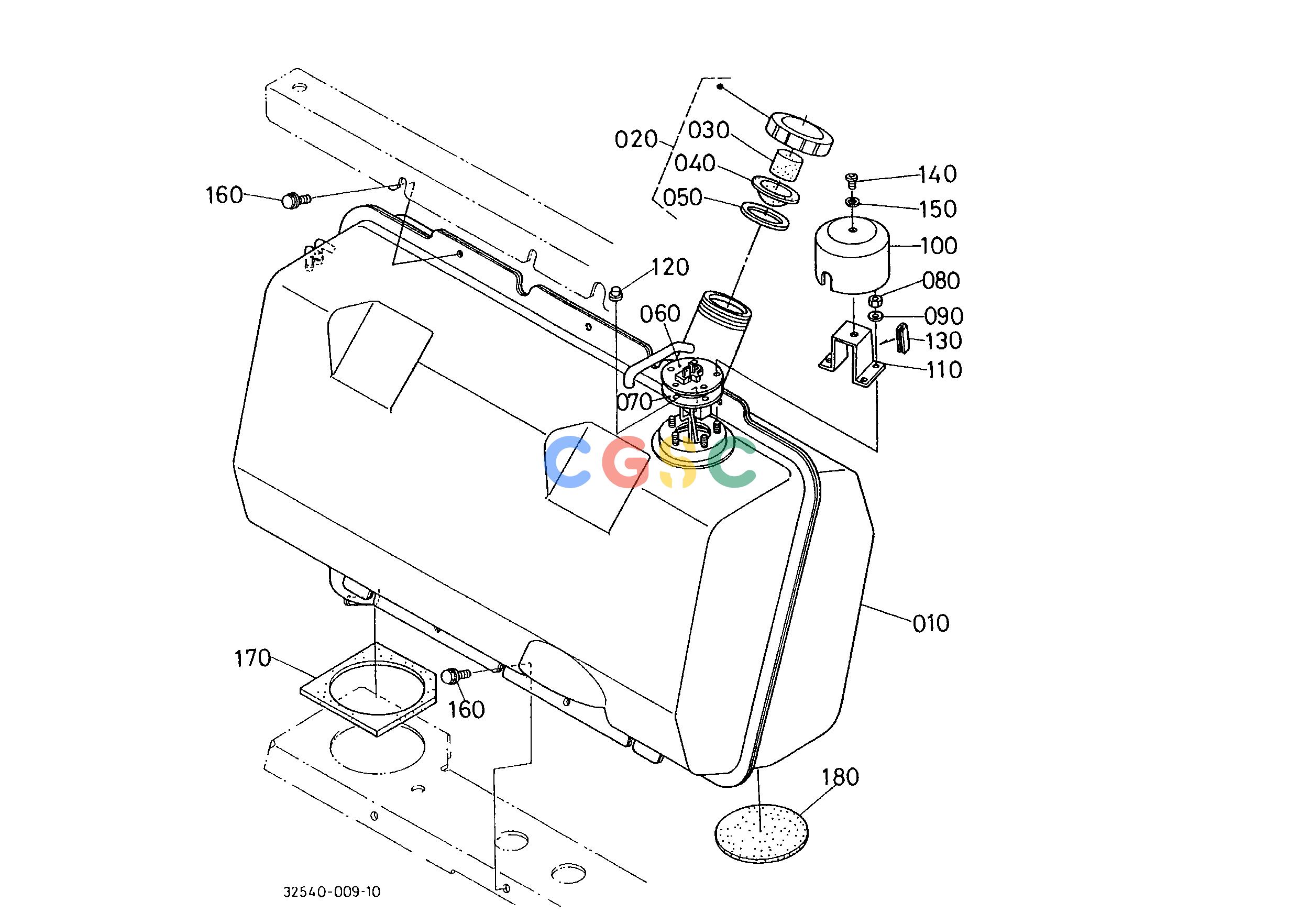

久保田零件查询T03100 FUEL TANK FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253935117
|
[1] |
COMP.TANK FUEL
|
0.0000(lbs); 0.000
|
| 010. |
3253935118
|
[1] |
COMP.TANK FUEL
|
21.1200(lbs); 9.600
|
| 020. |
3824035200
|
[1] |
ASSY CAP FUEL TANK
|
0.1430(lbs); 0.065
|
| 030. |
3415035240
|
[1] |
SPONGE
|
0.0022(lbs); 0.001
|
| 040. |
3415035230
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 050. |
3415035180
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 060. |
3253035210
|
[1] |
UNIT TANK
|
0.3740(lbs); 0.170
|
| 070. |
3633075310
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 080. |
0205450050
|
[5] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
0401360050
|
[5] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
3253935250
|
[1] |
UNIT COVER
|
0.1320(lbs); 0.060
|
| 110. |
3253035260
|
[1] |
BRACKET UNIT COVER
|
0.0880(lbs); 0.040
|
| 120. |
6659111290
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
| 130. |
3715013920
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 140. |
0301750610
|
[1] |
SCREW CR-REC-BD-HD
|
0.0088(lbs); 0.004
|
| 150. |
0471100060
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 160. |
0175450816
|
[6] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 170. |
3253035170
|
[1] |
CUSHION TANK
|
0.0880(lbs); 0.040
|
| 180. |
3253035190
|
[1] |
CUSHION TANK
|
0.1100(lbs); 0.050
|
