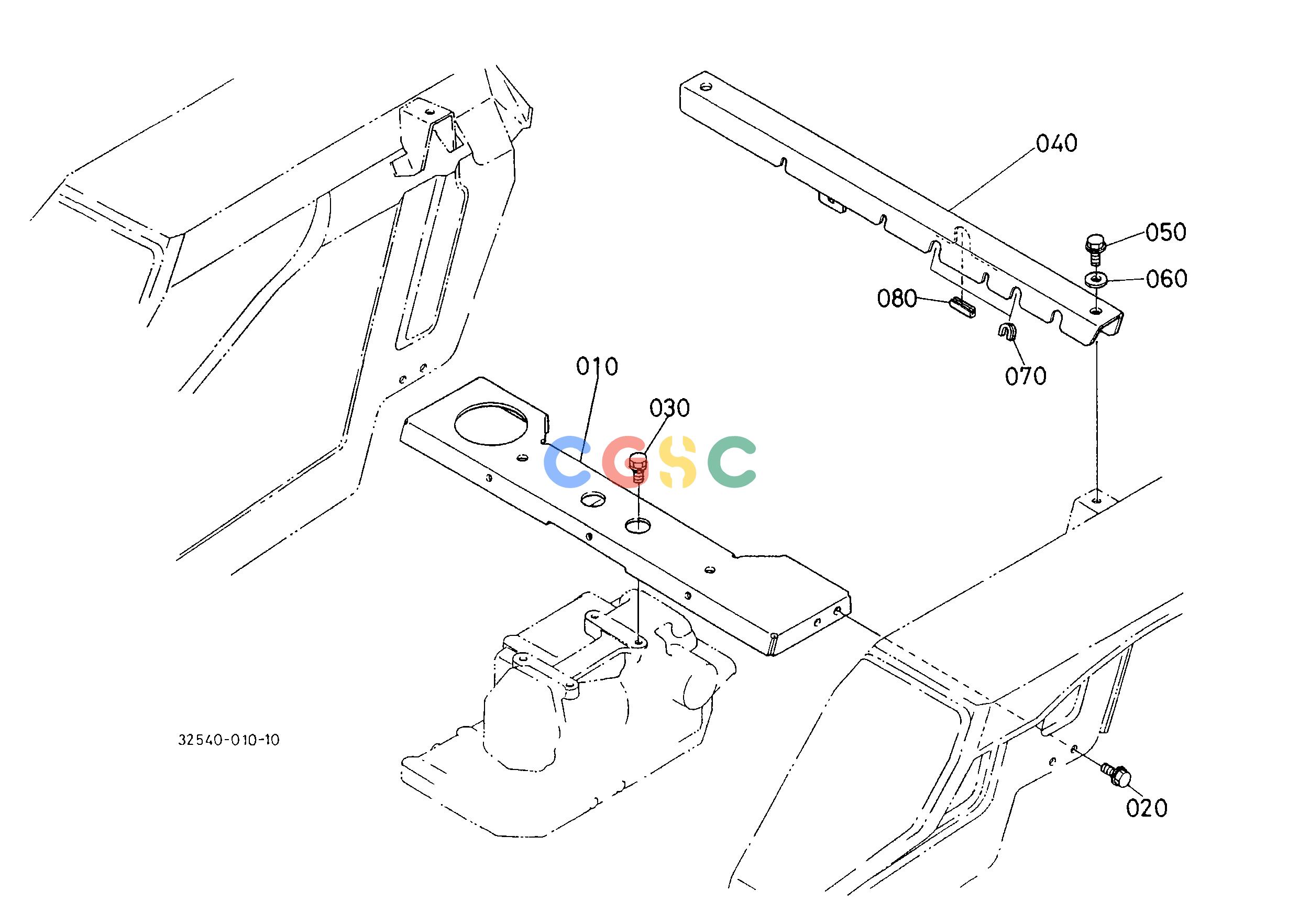

久保田零件查询T03200 FUEL TANK SUPPORT FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259035150
|
[1] |
COMP.SUPPORT TANK
|
7.6120(lbs); 3.460
|
| 020. |
0175450816
|
[4] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 030. |
0113351020
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
3253935167
|
[1] |
COMP.SUPPORT TANK
|
4.5320(lbs); 2.060
|
| 050. |
0177451016
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 060. |
0401350100
|
[2] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 070. |
3253035290
|
[2] |
RUBBER PROTECTOR
|
0.0044(lbs); 0.002
|
| 080. |
3715013920
|
[2] |
CUSHION
|
0.0110(lbs); 0.005
|
| 080. |
3843029670
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
