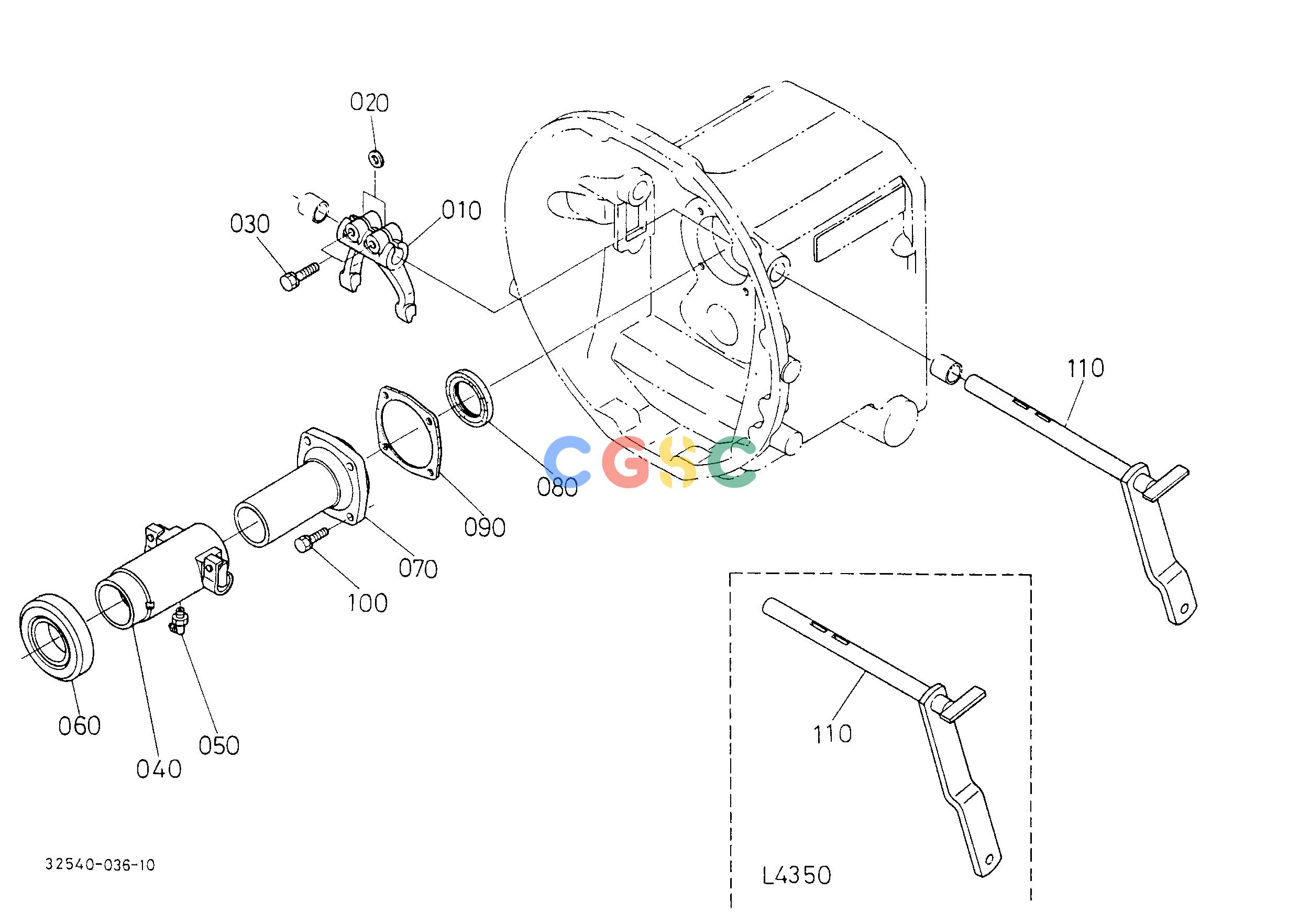

久保田零件查询T05101 CLUTCH LEVER (MDT) CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253014720
|
[1] |
FORK CLUTCH RELEASE
|
1.2320(lbs); 0.560
|
| 020. |
3115014780
|
[2] |
KEY FORK
|
0.0066(lbs); 0.003
|
| 030. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
3251014910
|
[1] |
ASSY HUB CLUTCH
|
2.6400(lbs); 1.200
|
| 050. |
0661635010
|
[1] |
NIPPLE GREASE
|
0.0242(lbs); 0.011
|
| 060. |
3843014820
|
[1] |
BEARING THRUST BALL
|
0.5940(lbs); 0.270
|
| 070. |
3253015310
|
[1] |
COVER SHAFT
|
2.8600(lbs); 1.300
|
| 080. |
0940040628
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 090. |
3253014840
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 100. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 110. |
3251014712
|
[1] |
LEVER CLUTCH
|
2.5740(lbs); 1.170
|
