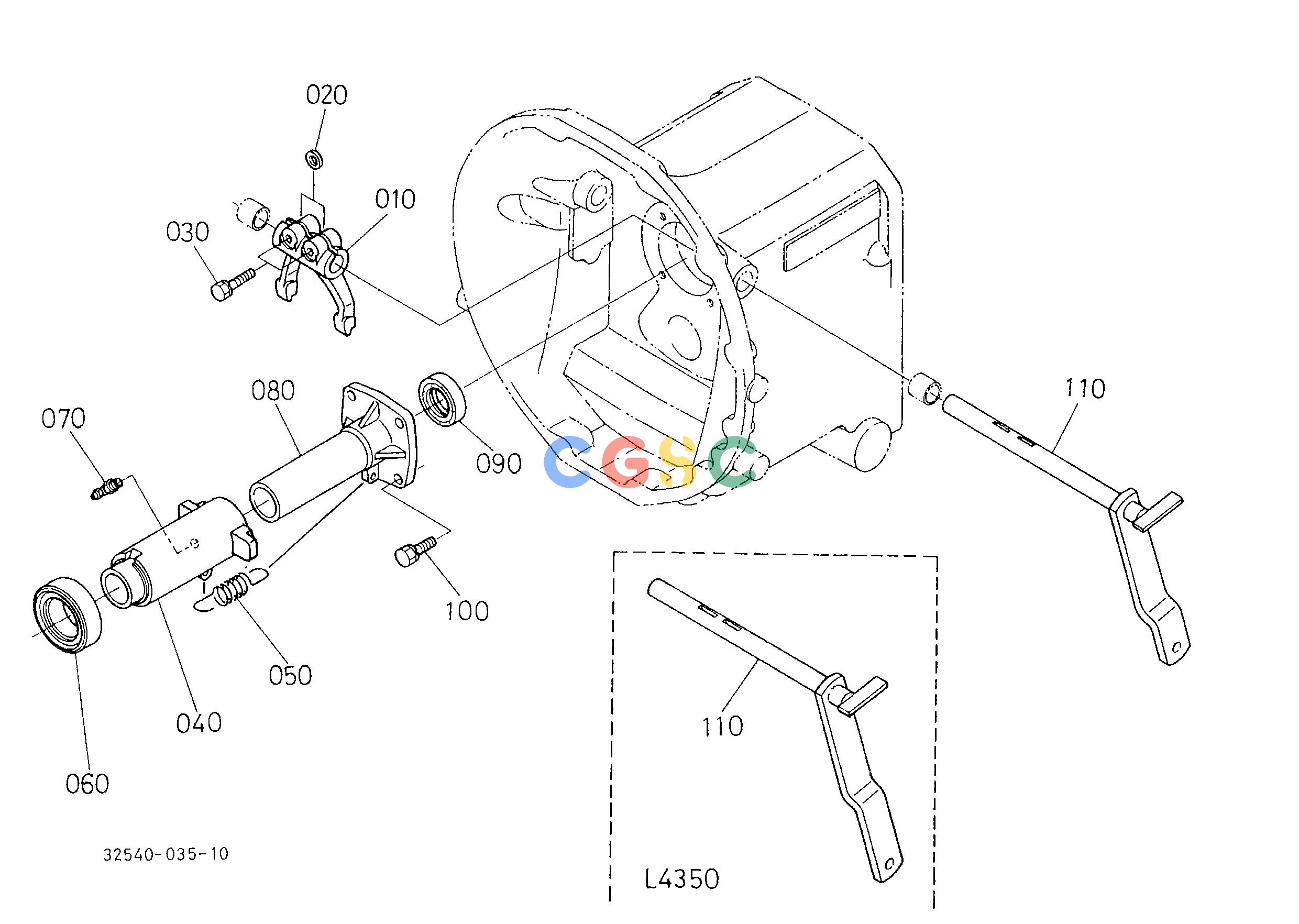

久保田零件查询T05102 CLUTCH LEVER (HDT) CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253014720
|
[1] |
FORK CLUTCH RELEASE
|
1.2320(lbs); 0.560
|
| 020. |
3115014780
|
[2] |
KEY FORK
|
0.0066(lbs); 0.003
|
| 030. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
3251014810
|
[1] |
HUB CLUTCH RELEASE
|
2.4200(lbs); 1.100
|
| 050. |
3415014840
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 060. |
0849000001
|
[1] |
BEARING THRUST BALL
|
0.4994(lbs); 0.227
|
| 070. |
0661635010
|
[1] |
NIPPLE GREASE
|
0.0242(lbs); 0.011
|
| 080. |
3253014832
|
[1] |
GUIDE HUB
|
3.6740(lbs); 1.670
|
| 090. |
0940305210
|
[1] |
SEAL OIL
|
0.0484(lbs); 0.022
|
| 100. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 110. |
3251014712
|
[1] |
LEVER CLUTCH
|
2.5740(lbs); 1.170
|
