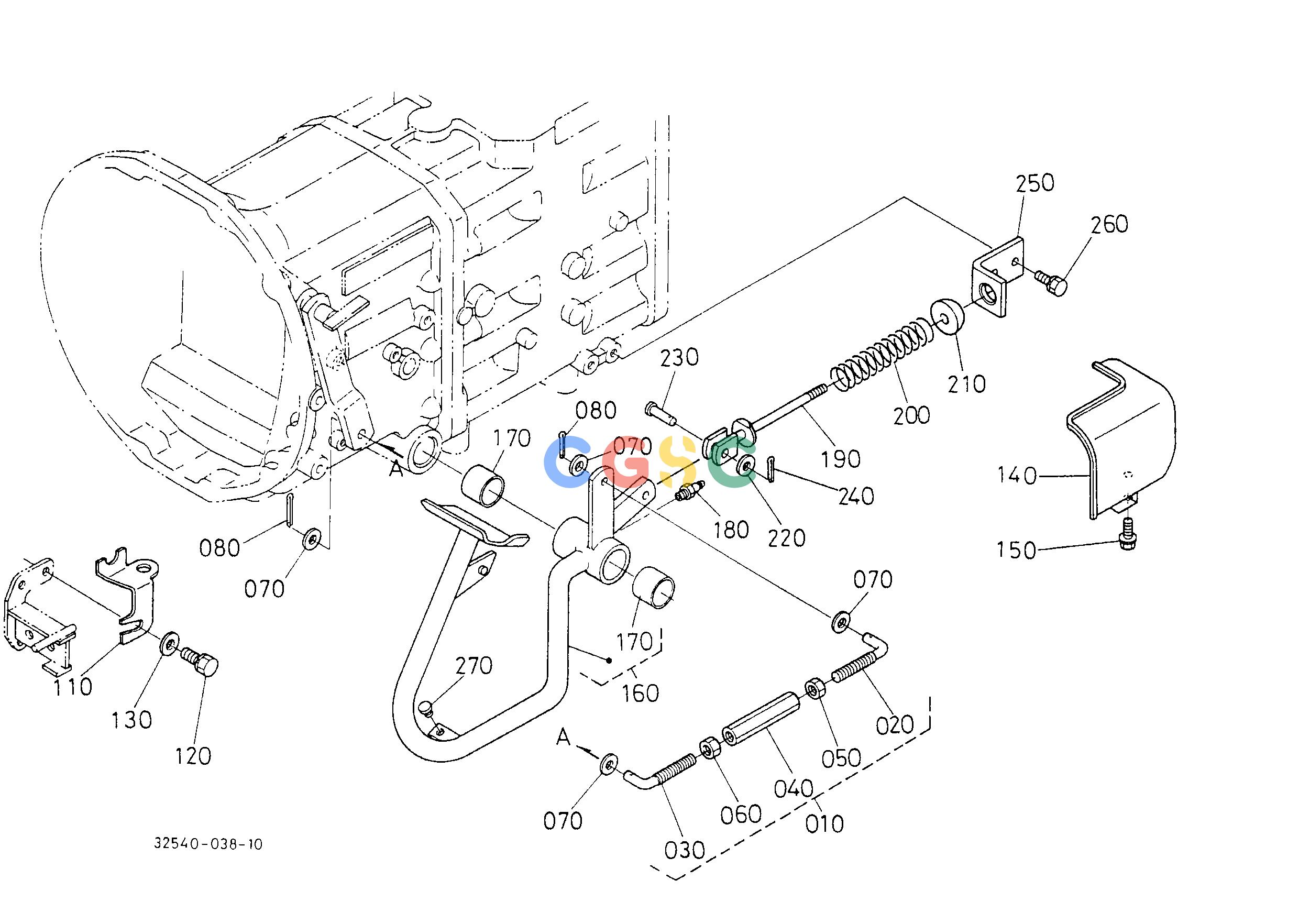

久保田零件查询T05201 CLUTCH PEDAL (MDT) CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253015632
|
[1] |
ASSY ROD CLUTCH
|
0.5720(lbs); 0.260
|
| 020. |
3253015643
|
[1] |
ROD CLUTCH
|
0.1760(lbs); 0.080
|
| 030. |
3253015653
|
[1] |
ROD CLUTCH
|
0.1760(lbs); 0.080
|
| 040. |
3772028980
|
[1] |
TURNBUCKLE
|
0.2178(lbs); 0.099
|
| 050. |
3772028990
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 060. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 070. |
0401360120
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
0551150422
|
[2] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 110. |
3253032252
|
[1] |
BRACKET SAFETY SW.
|
0.2200(lbs); 0.100
|
| 120. |
0113351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 130. |
0401560100
|
[1] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 140. |
3253932260
|
[1] |
COVER
|
0.4840(lbs); 0.220
|
| 150. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 160. |
3259015720
|
[1] |
PEDAL CUTCH
|
6.9960(lbs); 3.180
|
| 170. |
3215028440
|
[2] |
BUSH
|
0.0946(lbs); 0.043
|
| 180. |
0661115010
|
[1] |
NIPPLE GREASE
|
0.0220(lbs); 0.010
|
| 190. |
3253015760
|
[1] |
SUPPORT
|
0.0000(lbs); 0.000
|
| 190. |
3253015763
|
[1] |
SUPPORT
|
0.3498(lbs); 0.159
|
| 200. |
3843015770
|
[1] |
SPRING
|
0.1540(lbs); 0.070
|
| 210. |
3843015780
|
[1] |
COLLAR
|
0.1430(lbs); 0.065
|
| 220. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 230. |
3843015790
|
[1] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 240. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 250. |
3253015750
|
[1] |
STAY
|
0.3960(lbs); 0.180
|
| 260. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 270. |
3824029870
|
[1] |
CUSHION
|
0.0088(lbs); 0.004
|
