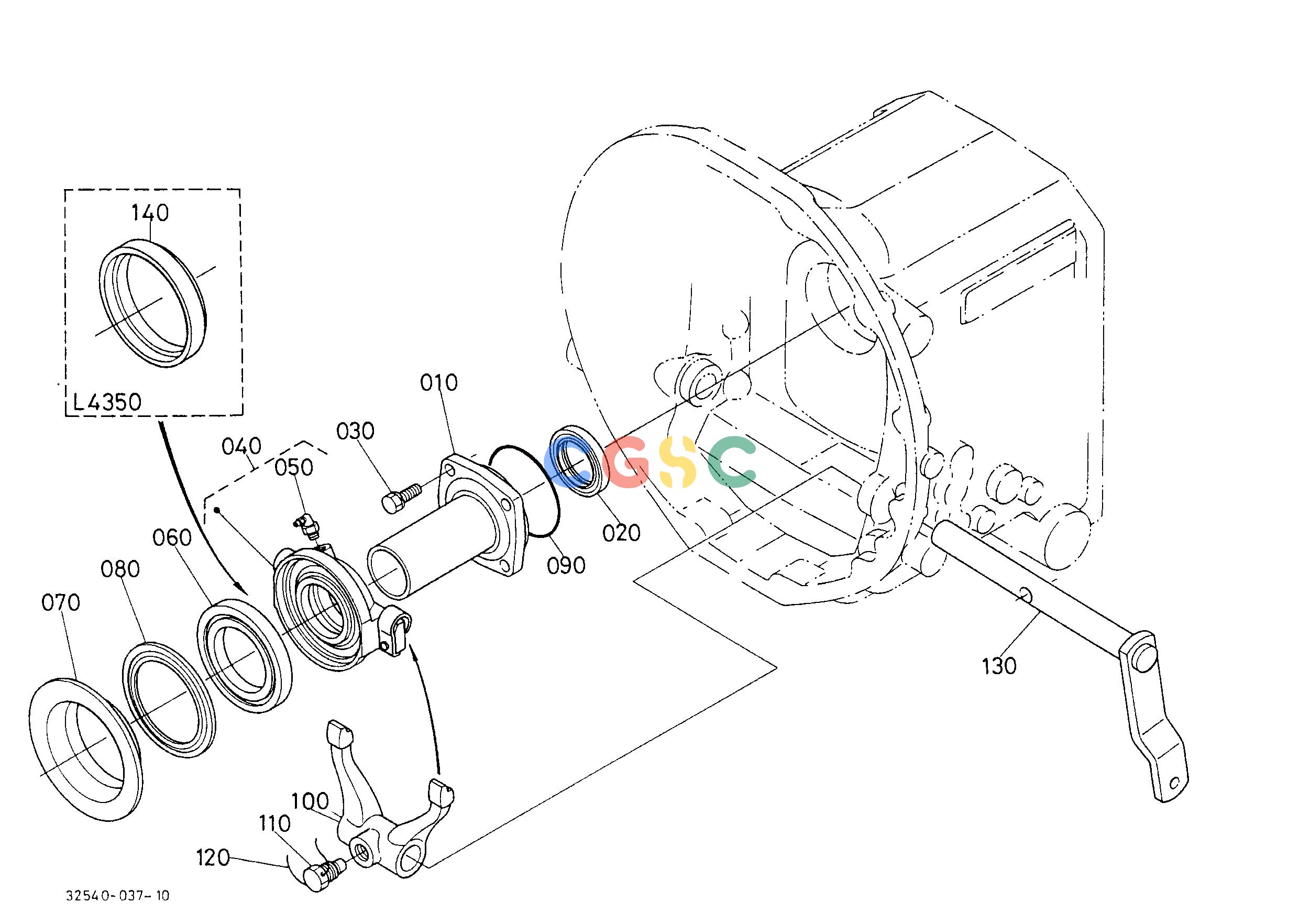

久保田零件查询T05104 CLUTCH LEVER (HDT-W) CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259014830
|
[1] |
GUIDE HUB
|
1.1000(lbs); 0.500
|
| 020. |
0940040628
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 030. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 040. |
3259014960
|
[1] |
ASSY COUPLING
|
2.2000(lbs); 1.000
|
| 050. |
0661330010
|
[1] |
NIPPLE GREASE
|
0.0220(lbs); 0.010
|
| 060. |
0810116013
|
[1] |
BEARING BALL
|
0.6380(lbs); 0.290
|
| 070. |
3340026770
|
[1] |
HUB CLUTCH RELEASE
|
1.4300(lbs); 0.650
|
| 080. |
3340026780
|
[1] |
COVER BEARING
|
0.0616(lbs); 0.028
|
| 090. |
0481150750
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 100. |
3259015120
|
[1] |
FORK CLUTCH RELEASE
|
1.3640(lbs); 0.620
|
| 110. |
3325126350
|
[1] |
BOLT SET
|
0.0990(lbs); 0.045
|
| 120. |
9999999999
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
| 130. |
3259015110
|
[1] |
LEVER PTO CLUTCH
|
3.3000(lbs); 1.500
|
| 140. |
3254014970
|
[1] |
SPACER
|
0.7370(lbs); 0.335
|
