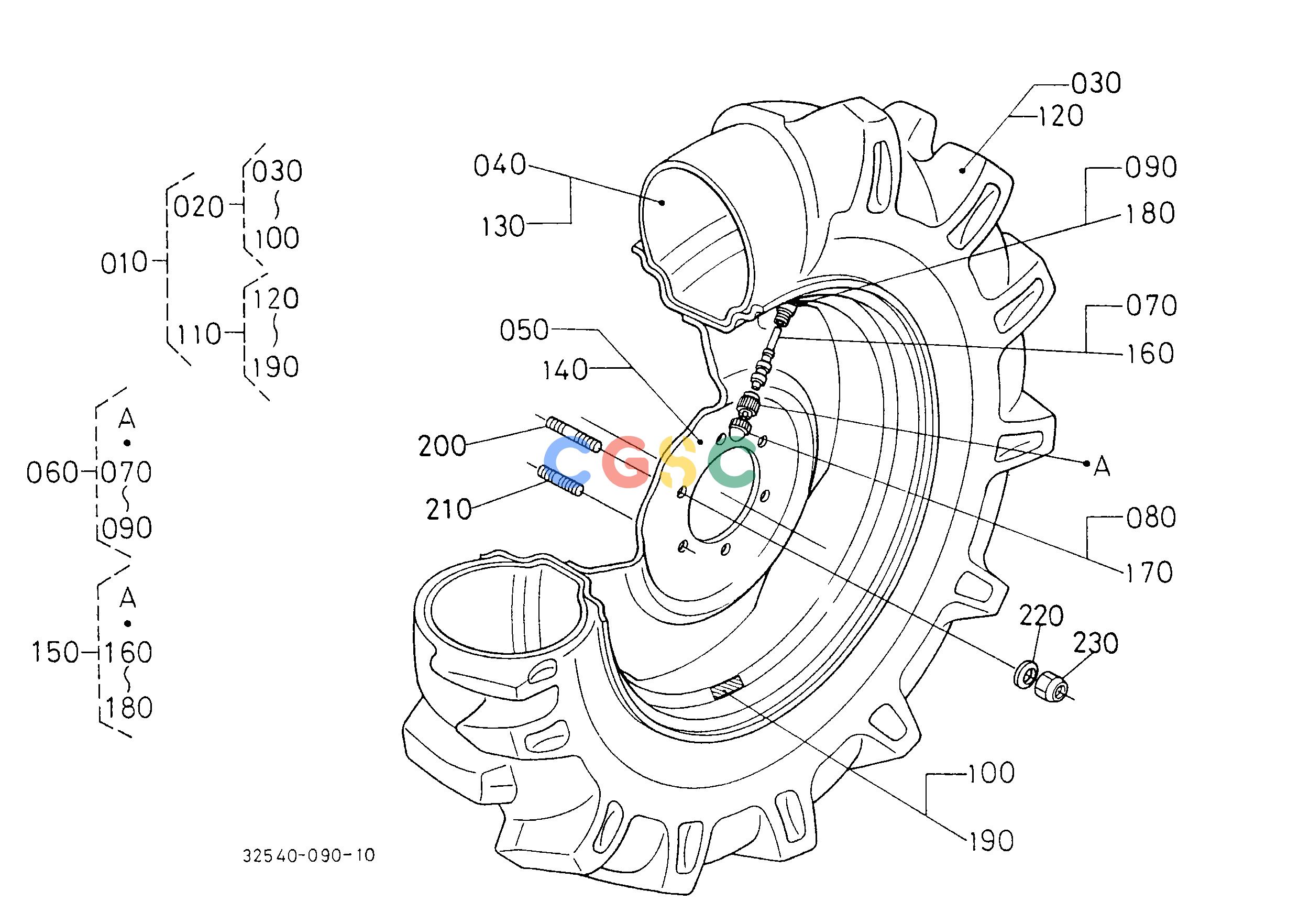

久保田零件查询T09301 FRONT WHEEL (9.5-16) [CA] [AU] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3257944900
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3257944910
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 030. |
3257044930
|
[1] |
TIRE
|
45.1000(lbs); 20.500
|
| 040. |
9601912120
|
[1] |
TUBE
|
3.9600(lbs); 1.800
|
| 050. |
3257944840
|
[1] |
DISK RIM
|
26.4000(lbs); 12.000
|
| 060. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 070. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 080. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 090. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 100. |
3257993330
|
[1] |
LABEL TIRE RH
|
0.0022(lbs); 0.001
|
| 110. |
3257944920
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 120. |
3257044930
|
[1] |
TIRE
|
45.1000(lbs); 20.500
|
| 130. |
9601912120
|
[1] |
TUBE
|
3.9600(lbs); 1.800
|
| 140. |
3257944840
|
[1] |
DISK RIM
|
26.4000(lbs); 12.000
|
| 150. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 160. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 170. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 180. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 190. |
3257993340
|
[1] |
LABEL TIRE LH
|
0.0022(lbs); 0.001
|
| 200. |
3258044960
|
[10] |
STUD
|
0.1100(lbs); 0.050
|
| 210. |
3258044860
|
[2] |
STUD
|
0.1320(lbs); 0.060
|
| 220. |
3258044970
|
[12] |
SPRING PLATE
|
0.0550(lbs); 0.025
|
| 230. |
3258044940
|
[12] |
NUT
|
0.1100(lbs); 0.050
|
