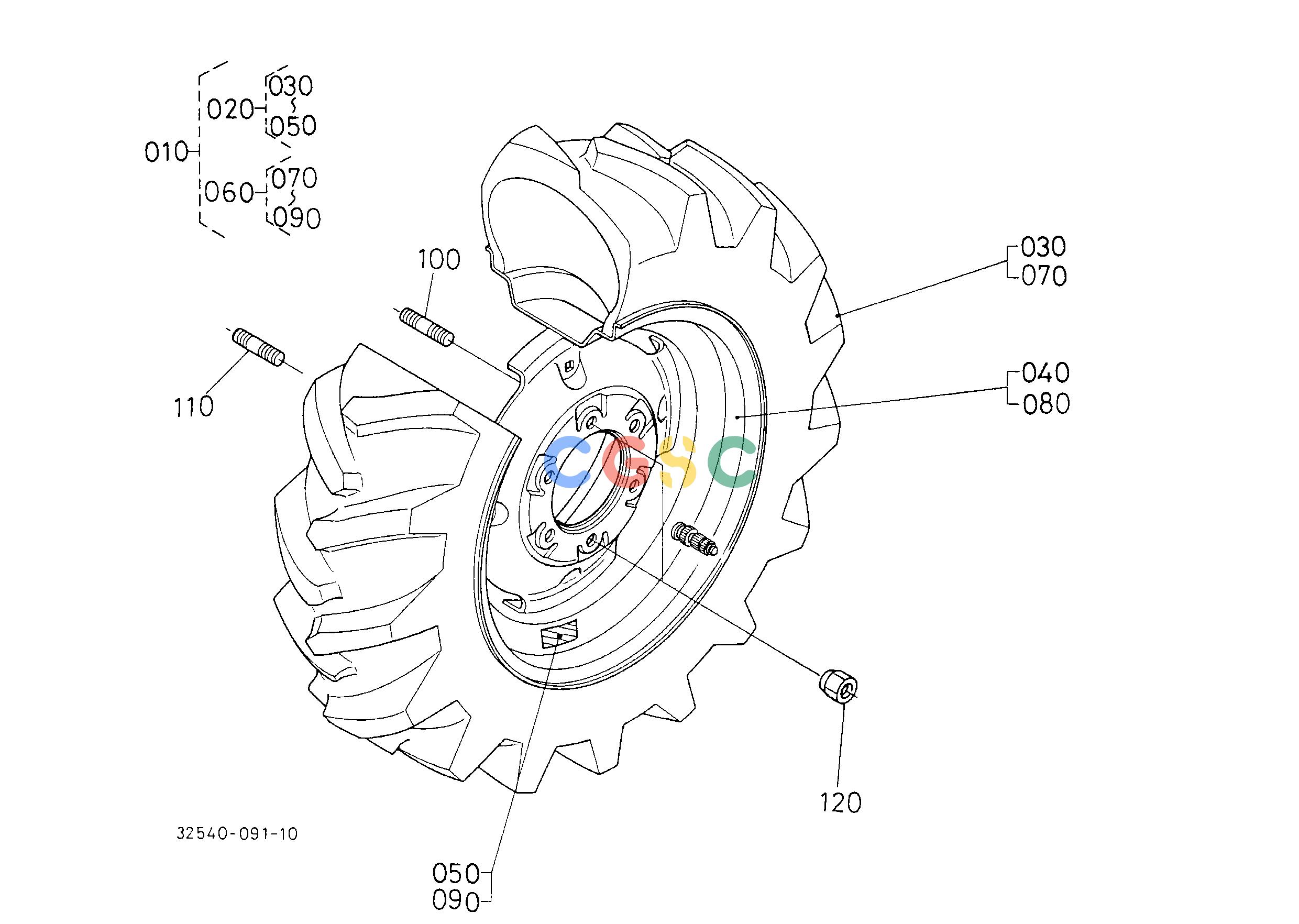

久保田零件查询T09303 FRONT WHEEL (9.5-16) [A] [CA] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
430 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255044900
|
[1] |
ASSY TIRE FRONT
|
0.0000(lbs); 0.000
|
| 020. |
3255044910
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 030. |
3255044930
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3255044940
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 050. |
3255093330
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 060. |
3255044920
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 070. |
3255044930
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 080. |
3255044940
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 090. |
3255093340
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 100. |
3258044960
|
[10] |
STUD
|
0.1100(lbs); 0.050
|
| 110. |
3258044860
|
[2] |
STUD
|
0.1320(lbs); 0.060
|
| 120. |
3258044940
|
[12] |
NUT
|
0.1100(lbs); 0.050
|
