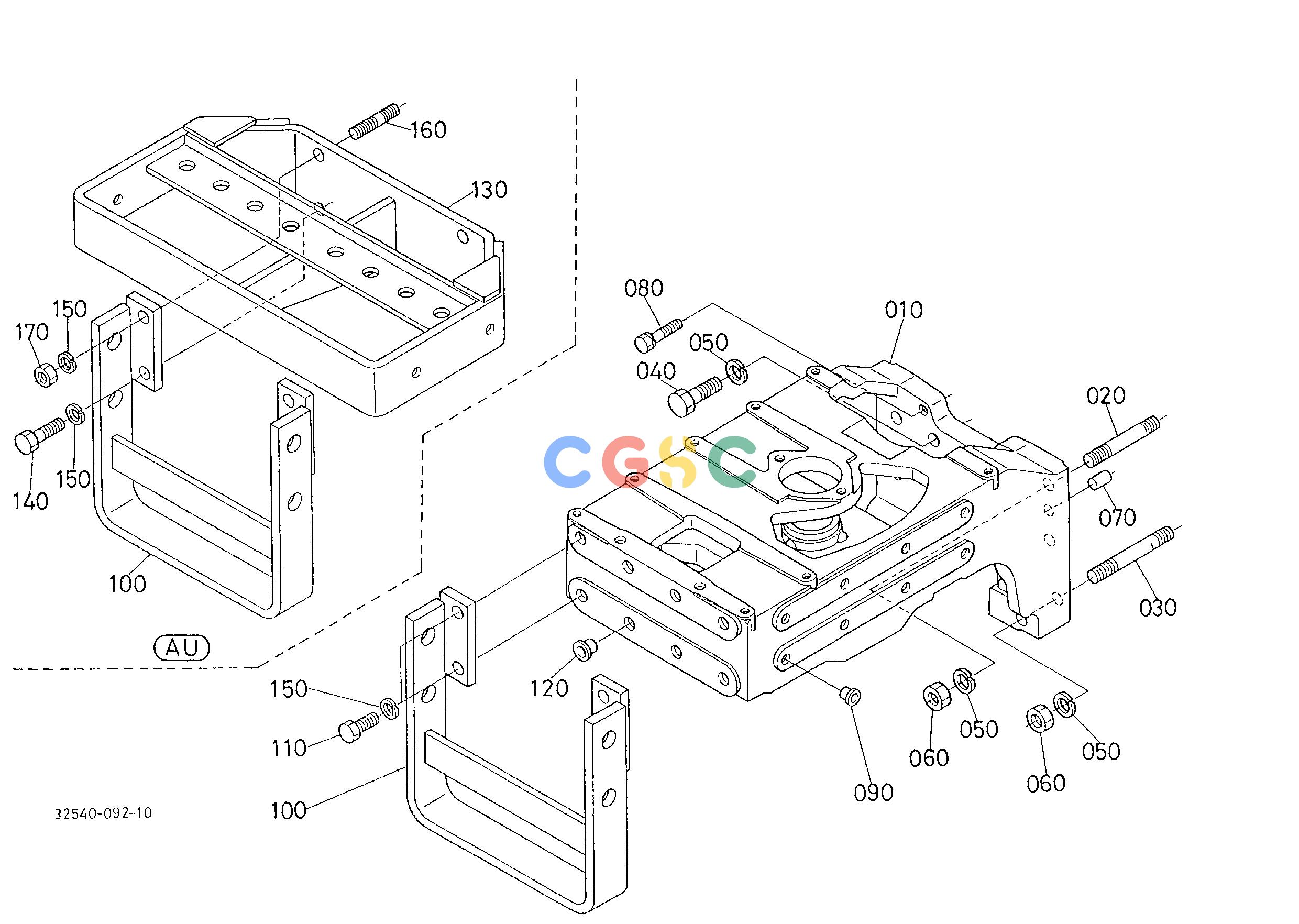

久保田零件查询T09401 FRONT AXLE BRACKET FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253013610
|
[1] |
BRACKET FRONT AXLE
|
63.8000(lbs); 29.000
|
| 010. |
3253013613
|
[1] |
BRACKET FRONT AXLE
|
103.4000(lbs); 47.00
|
| 020. |
0151751650
|
[4] |
STUD
|
0.2332(lbs); 0.106
|
| 030. |
0151751670
|
[2] |
STUD
|
0.2970(lbs); 0.135
|
| 040. |
0117351650
|
[2] |
BOLT
|
0.2178(lbs); 0.099
|
| 050. |
0451260160
|
[8] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 060. |
0207650160
|
[6] |
NUT
|
0.0660(lbs); 0.030
|
| 070. |
3730026530
|
[2] |
PIN STRAIGHT
|
0.0660(lbs); 0.030
|
| 080. |
0113351045
|
[2] |
BOLT
|
0.0748(lbs); 0.034
|
| 090. |
3122014290
|
[16] |
PLUG
|
0.0044(lbs); 0.002
|
| 100. |
3255013880
|
[1] |
GUARD TIE ROD
|
11.8800(lbs); 5.400
|
| 110. |
0117351435
|
[4] |
BOLT
|
0.1232(lbs); 0.056
|
| 120. |
3122014290
|
[4] |
PLUG
|
0.0044(lbs); 0.002
|
| 130. |
3251913870
|
[1] |
BUMPER
|
41.5800(lbs); 18.900
|
| 140. |
0117351445
|
[2] |
BOLT
|
0.1474(lbs); 0.067
|
| 150. |
0451260140
|
[4] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 160. |
0151751445
|
[2] |
STUD
|
0.1650(lbs); 0.075
|
| 170. |
0217450140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
