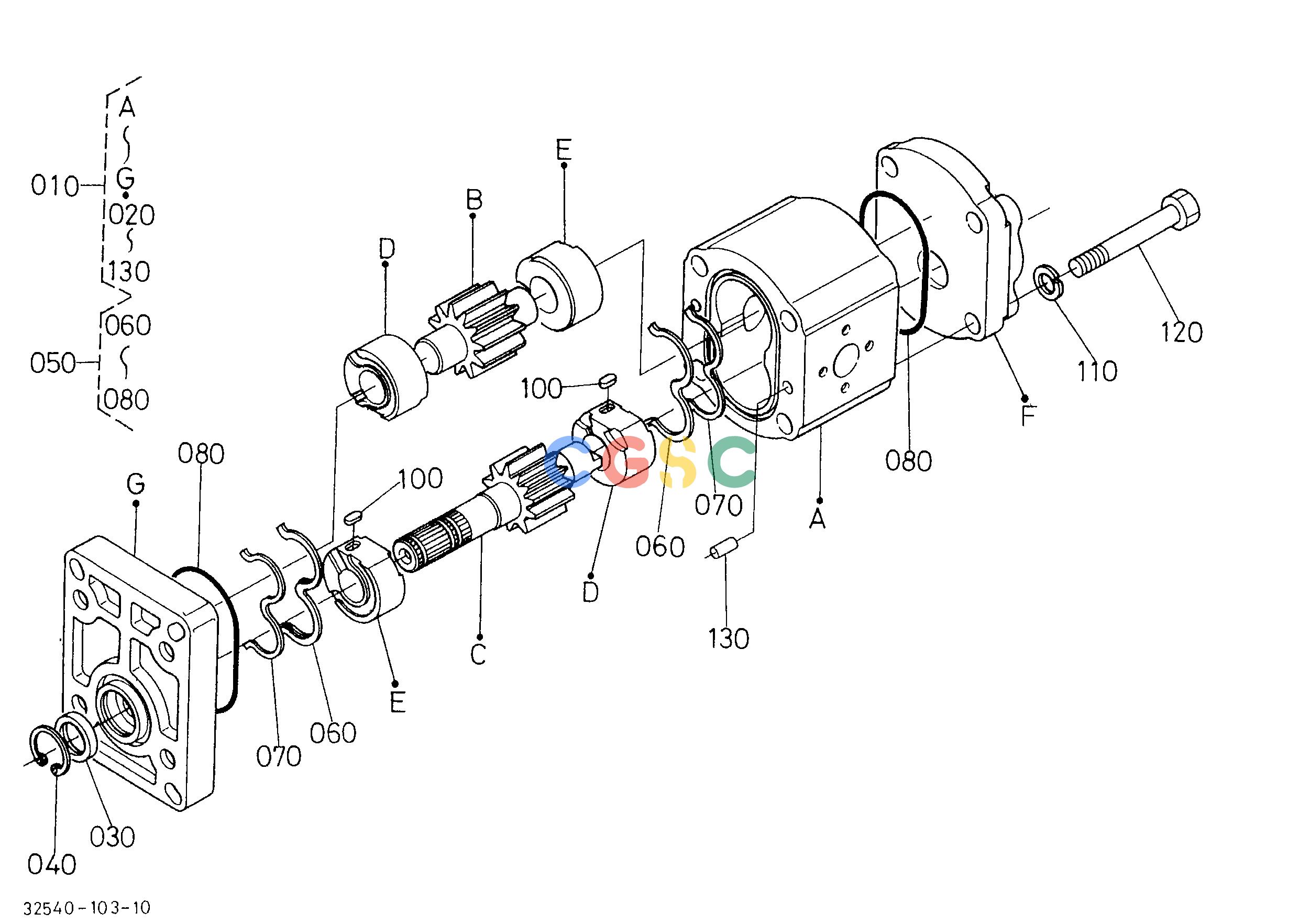

久保田零件查询T10600 HYDRAULIC PUMP (HDT/HDT-W) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255076100
|
[1] |
PUMP HYDRAULIC
|
6.6000(lbs); 3.000
|
| 030. |
3633082320
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 040. |
6805191850
|
[1] |
RING SNAP
|
0.0022(lbs); 0.001
|
| 050. |
3633082480
|
[1] |
SET SEAL
|
0.0110(lbs); 0.005
|
| 060. |
3543012870
|
[2] |
ELEMENT SEAL
|
0.0066(lbs); 0.003
|
| 070. |
6805191880
|
[2] |
ELEMENT BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
6805191910
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6805191890
|
[2] |
KEY
|
0.0022(lbs); 0.001
|
| 110. |
3550006550
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
3586112940
|
[4] |
BOLT
|
0.1540(lbs); 0.070
|
| 130. |
6827191240
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
