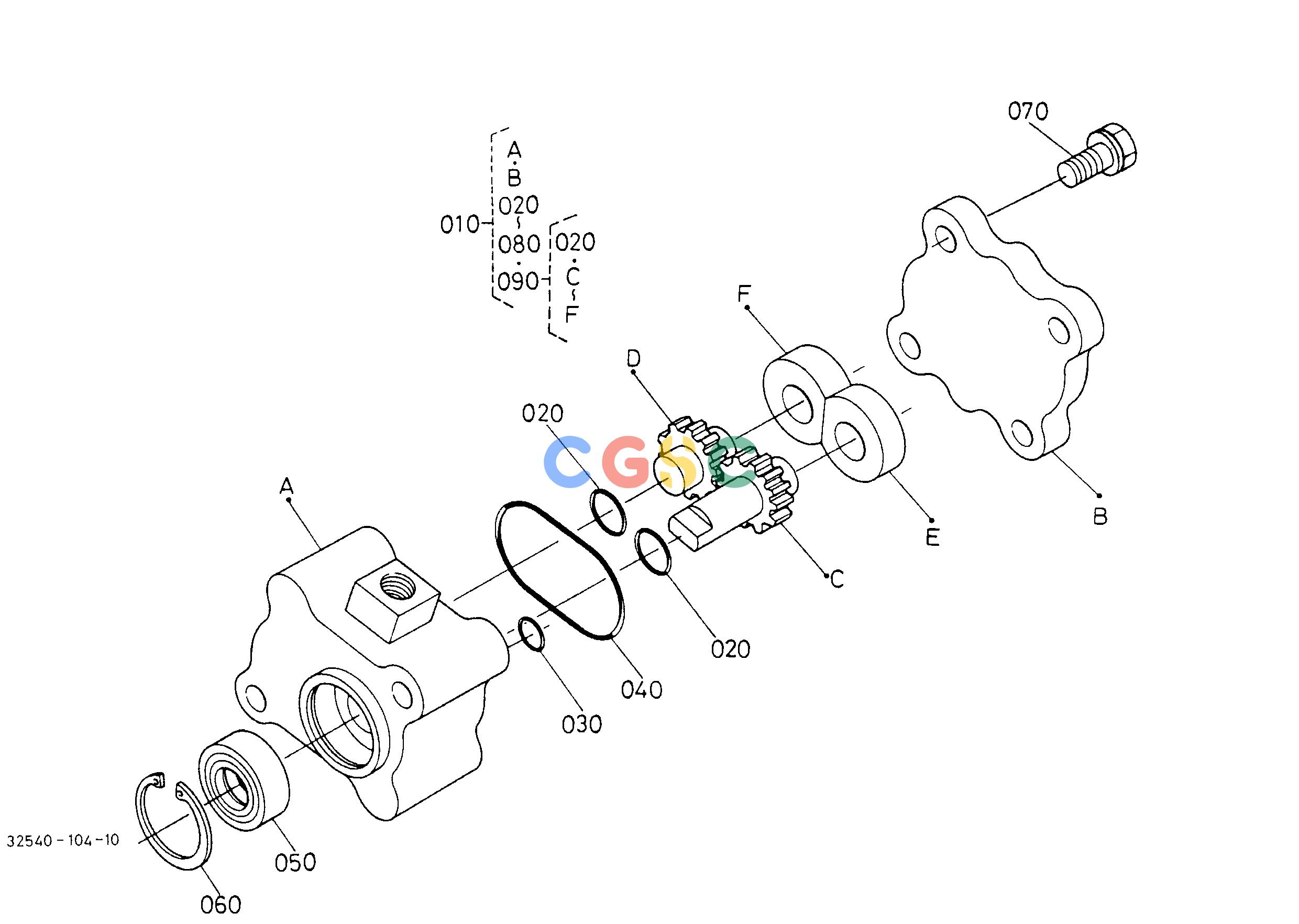

久保田零件查询T10700 HYDRAULIC PUMP (HDT/HDT-W) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3673027510
|
[1] |
ASSY PUMP HYDRAULIC
|
1.8700(lbs); 0.850
|
| 010. |
3255076200
|
[1] |
ASSY PUMP HYDRAULIC
|
1.8810(lbs); 0.855
|
| 020. |
0481000220
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481000050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481050500
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 050. |
3138176190
|
[1] |
SEAL OIL
|
0.0154(lbs); 0.007
|
| 060. |
0461100280
|
[1] |
CIR CLIP INTERNAL
|
0.0044(lbs); 0.002
|
| 070. |
6721176240
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 070. |
0175450825
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 090. |
3255076220
|
[1] |
COMP.GEAR HYD.PUMP
|
0.0000(lbs); 0.000
|
