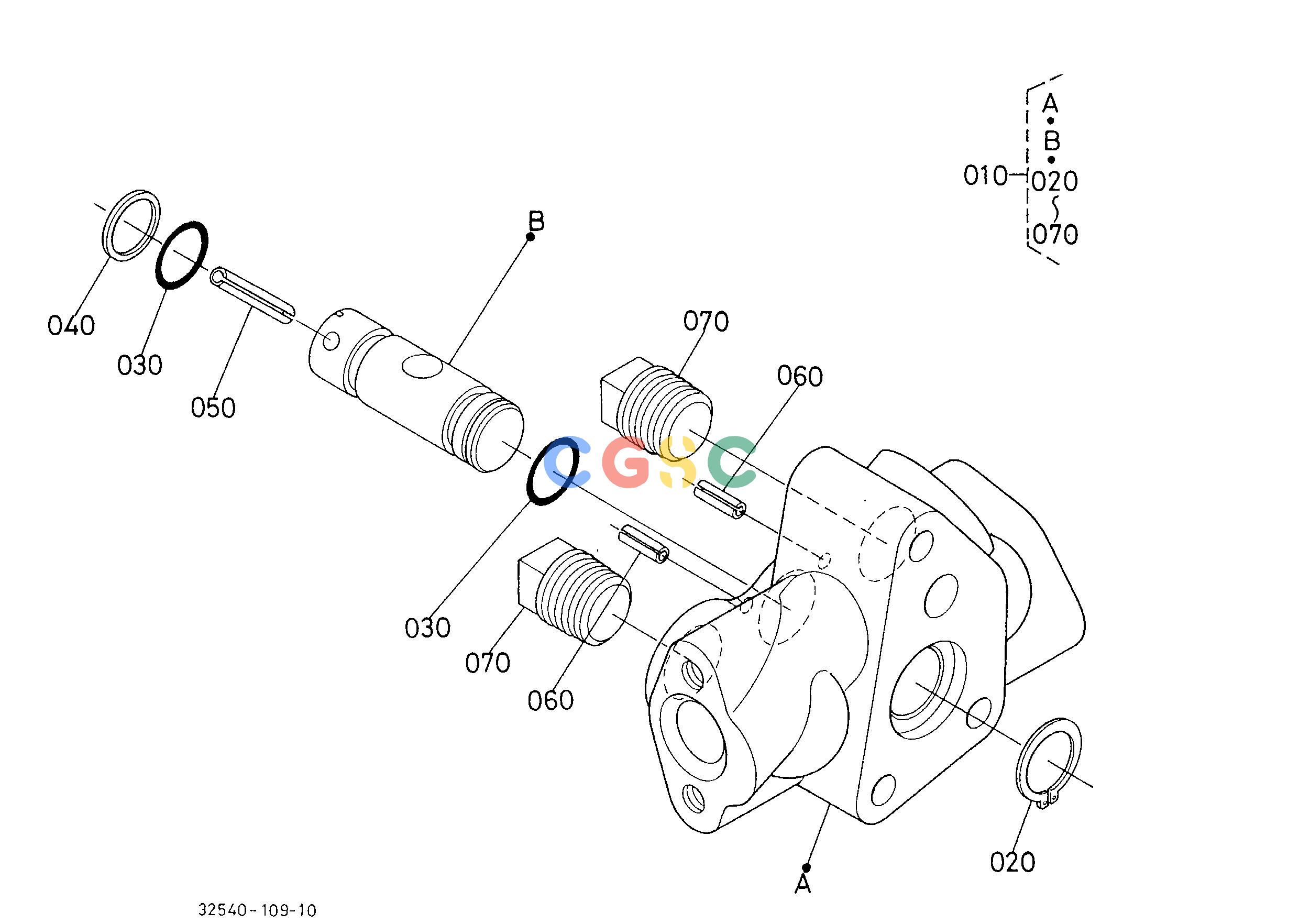

久保田零件查询T11300 HYDRAULIC OUTLET BLOCK [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255036600
|
[1] |
ASSY BODY R.VALVE
|
4.1360(lbs); 1.880
|
| 020. |
0461200200
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 030. |
0481100160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
3377094040
|
[1] |
RING BACK UP
|
0.0044(lbs); 0.002
|
| 050. |
0541100536
|
[1] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 060. |
0541100414
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 070. |
0631210040
|
[2] |
PLUG
|
0.0880(lbs); 0.040
|
