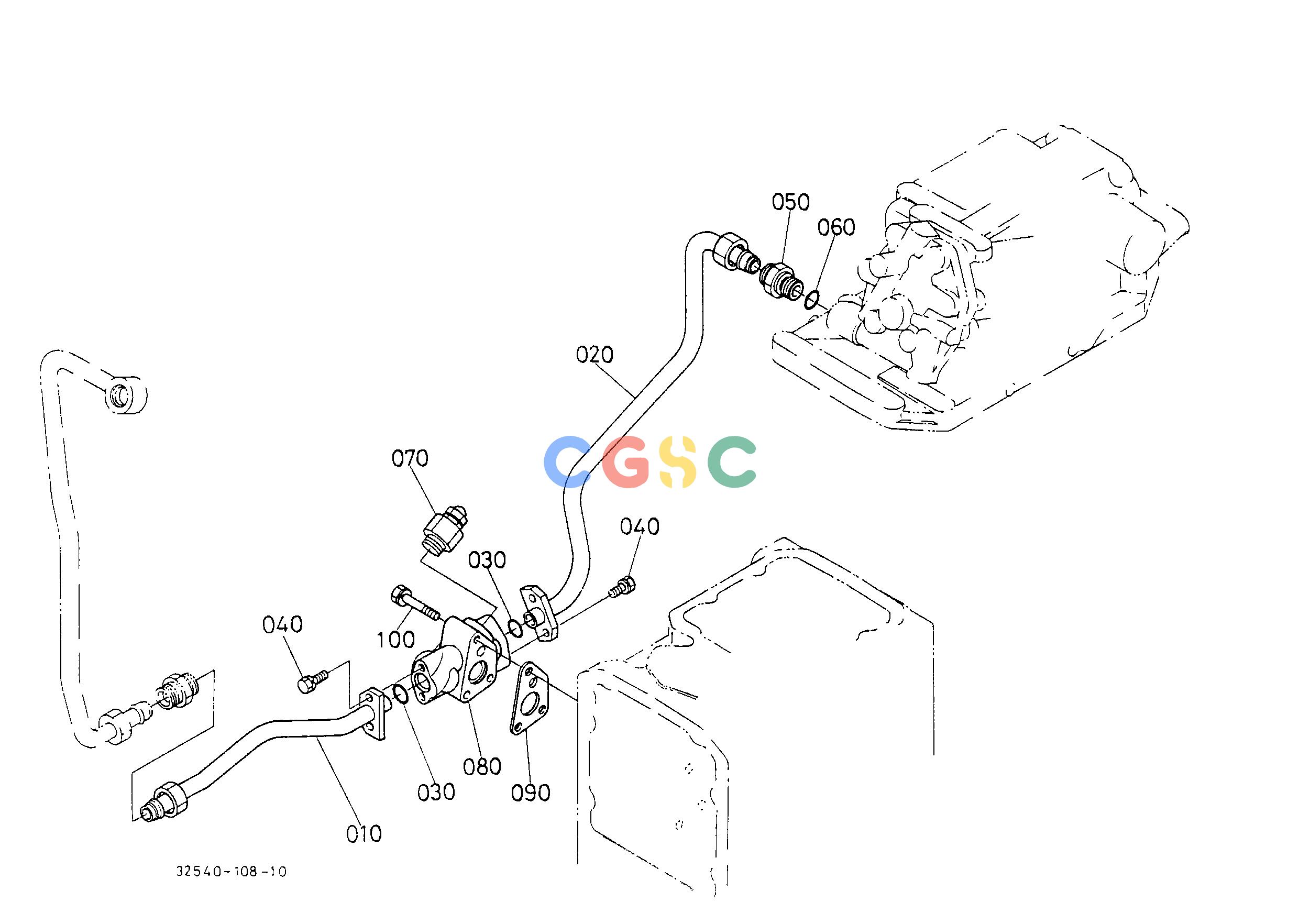

久保田零件查询T11201 HYDRAULIC PIPE (DELIVERY) 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255038153
|
[1] |
PIPE DELIVERY
|
0.1100(lbs); 0.050
|
| 020. |
3255038160
|
[1] |
PIPE DELIVERY
|
0.8800(lbs); 0.400
|
| 030. |
0481000150
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
3253038760
|
[1] |
JOINT
|
0.1430(lbs); 0.065
|
| 060. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
3259036630
|
[1] |
ASSY VALVE RELIEF
|
0.5720(lbs); 0.260
|
| 080. |
3255036600
|
[1] |
ASSY BODY R.VALVE
|
4.1360(lbs); 1.880
|
| 090. |
3253036630
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 100. |
0112350855
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
