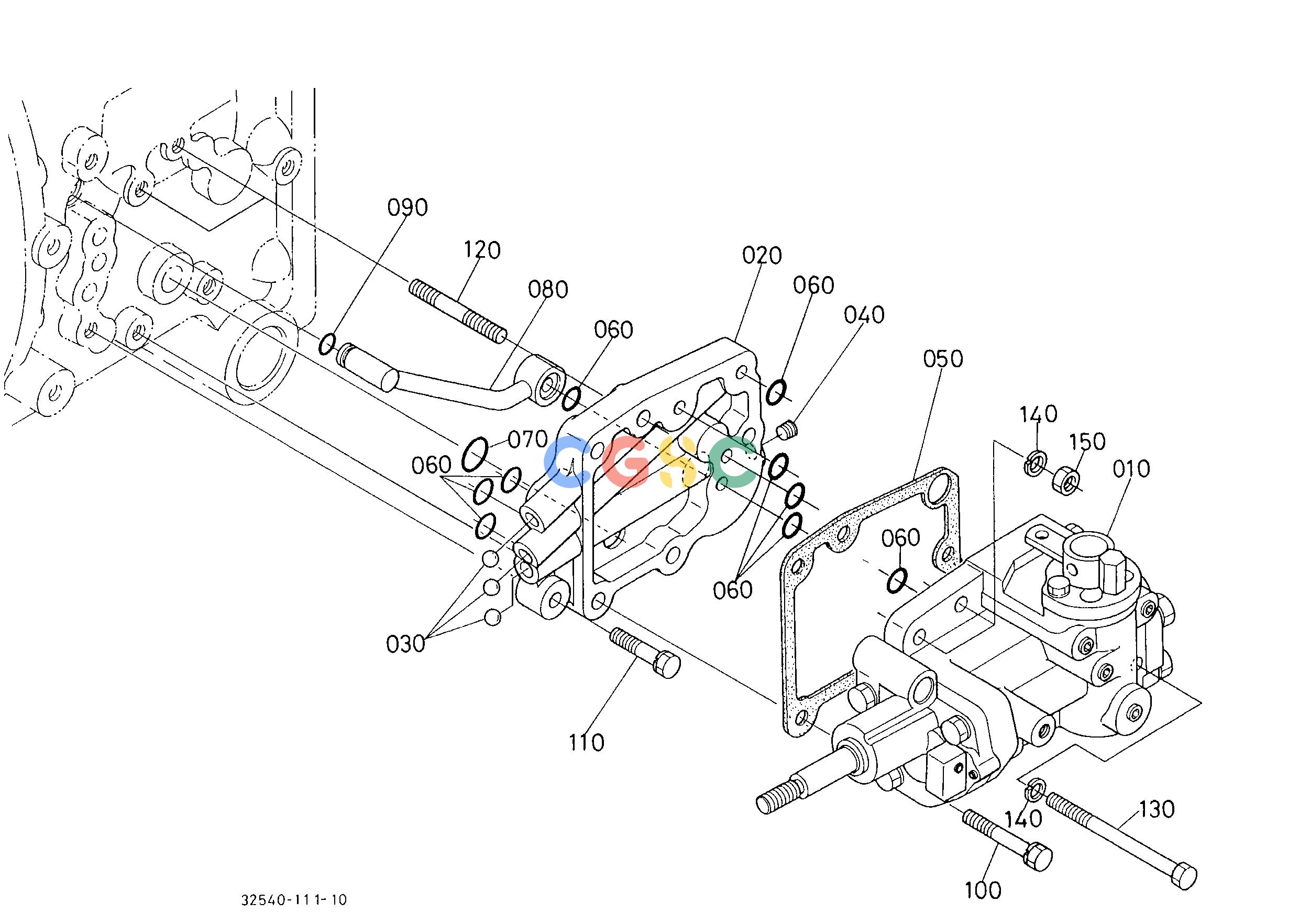

久保田零件查询T11402 SHUTTLE NAD CLUTCH VALVE (HDT-W) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259046700
|
[1] |
ASSY VALVE HCS
|
14.7400(lbs); 6.700
|
| 020. |
3259046690
|
[1] |
SPACER VALVE
|
3.9820(lbs); 1.810
|
| 030. |
0771503211
|
[3] |
BALL
|
0.0066(lbs); 0.003
|
| 040. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 050. |
3259046880
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 060. |
0481000110
|
[9] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
3259047200
|
[1] |
PIPE OIL
|
0.1980(lbs); 0.090
|
| 090. |
0481100100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0112350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 110. |
0112350835
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
0151350845
|
[2] |
STUD
|
0.0418(lbs); 0.019
|
| 130. |
0115350801
|
[1] |
BOLT
|
0.1034(lbs); 0.047
|
| 140. |
0451260080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
