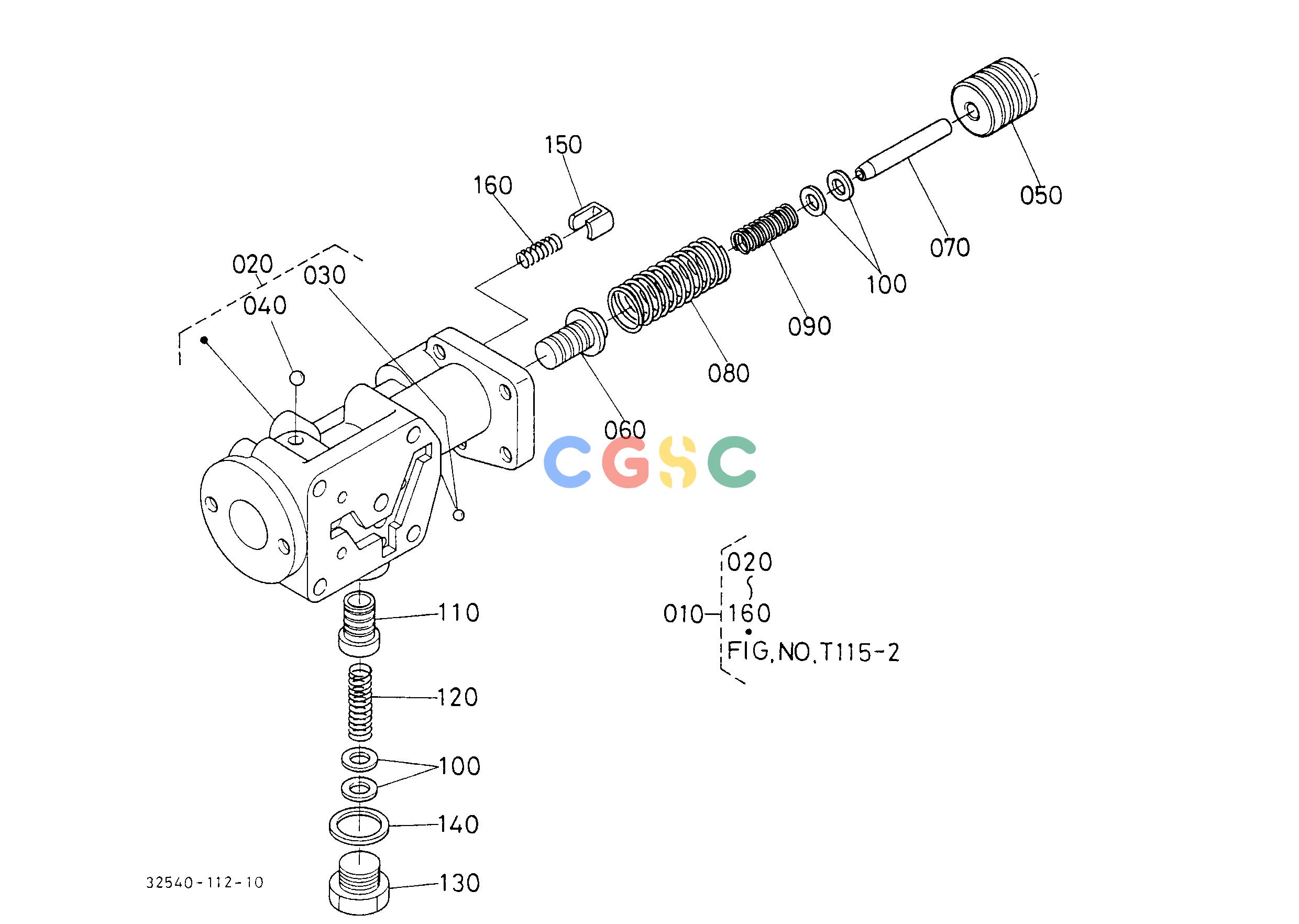

久保田零件查询T11501 SHUTTLE VALVE 1 (HDT) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
259 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259046000
|
[1] |
ASSY VALVE SHUTTLE
|
10.1200(lbs); 4.600
|
| 020. |
3259046100
|
[1] |
ASSY BODY VALVE
|
6.9740(lbs); 3.170
|
| 030. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 040. |
0771503207
|
[1] |
BALL
|
0.0022(lbs); 0.001
|
| 050. |
3253046120
|
[1] |
PISTON VALVE
|
0.1980(lbs); 0.090
|
| 060. |
3253046130
|
[1] |
VALVE RELIEF
|
0.1100(lbs); 0.050
|
| 070. |
3537046140
|
[1] |
PIN
|
0.0220(lbs); 0.010
|
| 080. |
3537046150
|
[1] |
SPRING
|
0.0660(lbs); 0.030
|
| 090. |
3537046160
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 100. |
3537046170
|
[3] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
3537046180
|
[3] |
SHIM
|
0.0110(lbs); 0.005
|
| 110. |
3253046190
|
[1] |
VALVE RELIEF
|
0.0330(lbs); 0.015
|
| 120. |
3253046200
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
0633135020
|
[1] |
PLUG
|
0.1496(lbs); 0.068
|
| 140. |
0472400200
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 150. |
3253046210
|
[1] |
VALVE CHECK
|
0.0220(lbs); 0.010
|
| 160. |
3537046220
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
