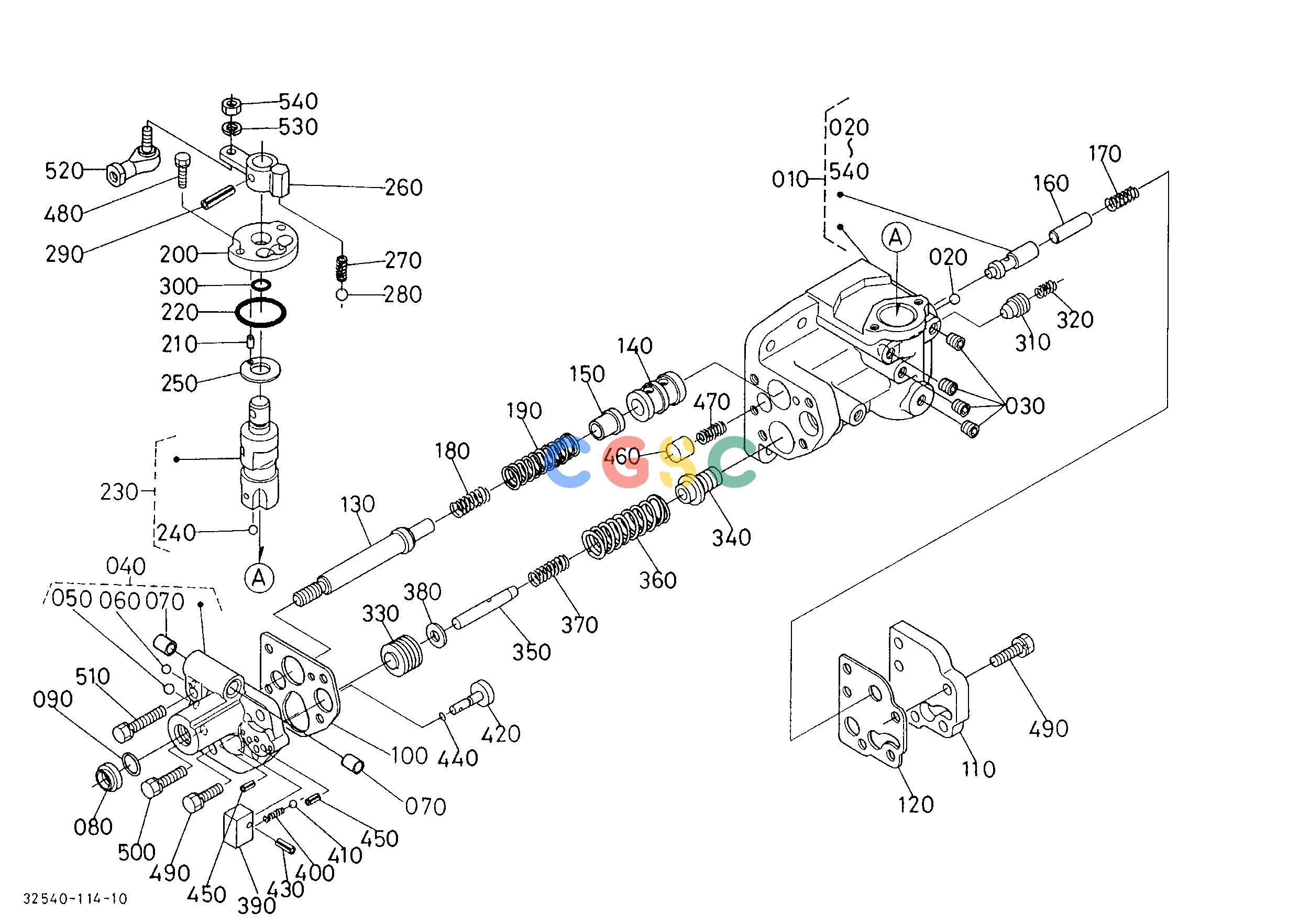

久保田零件查询T11503 SHUTTLE AND CLUTCH VELVE (HDT-W) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
560 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259046700
|
[1] |
ASSY VALVE HCS
|
14.7400(lbs); 6.700
|
| 020. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 030. |
3135137160
|
[4] |
PLUG
|
0.0066(lbs); 0.003
|
| 040. |
3259046760
|
[1] |
COVER FRONT
|
1.8040(lbs); 0.820
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
0771500401
|
[1] |
BALL
|
0.0022(lbs); 0.001
|
| 070. |
0851101010
|
[2] |
BUSH
|
0.0066(lbs); 0.003
|
| 080. |
3874771660
|
[1] |
SEAL DUST
|
0.0066(lbs); 0.003
|
| 090. |
0481100140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
3259046770
|
[1] |
GASKET FRONT
|
0.0110(lbs); 0.005
|
| 110. |
3259046780
|
[1] |
COVER REAR
|
0.8800(lbs); 0.400
|
| 120. |
3259046790
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 130. |
3259046720
|
[1] |
ROD
|
0.3080(lbs); 0.140
|
| 140. |
3259046730
|
[1] |
SLEEVE
|
0.1496(lbs); 0.068
|
| 150. |
3259046750
|
[1] |
SEAT SPRING
|
0.0440(lbs); 0.020
|
| 160. |
3259046810
|
[1] |
ROD
|
0.0330(lbs); 0.015
|
| 170. |
3259046820
|
[1] |
SPRING
|
0.0330(lbs); 0.015
|
| 180. |
3259046830
|
[1] |
SPRING INNER
|
0.0154(lbs); 0.007
|
| 190. |
3259046840
|
[1] |
SPRING OUTER
|
0.0220(lbs); 0.010
|
| 200. |
3259046800
|
[1] |
COVER SELECTOR
|
0.2640(lbs); 0.120
|
| 210. |
0501200206
|
[1] |
PIN STRAIGHT
|
0.0044(lbs); 0.002
|
| 220. |
0481110350
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 230. |
3259046900
|
[1] |
SELECTOR
|
0.7040(lbs); 0.320
|
| 240. |
0771503209
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 250. |
3259046910
|
[1] |
BUSH THRUST
|
0.0088(lbs); 0.004
|
| 260. |
3259046920
|
[1] |
LEVER SHIFT
|
0.1540(lbs); 0.070
|
| 270. |
3259047150
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 280. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 290. |
0541100530
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 300. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 310. |
3259046860
|
[1] |
VALVE RELIEF
|
0.0374(lbs); 0.017
|
| 320. |
3259046870
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 330. |
3253046120
|
[1] |
PISTON VALVE
|
0.1980(lbs); 0.090
|
| 340. |
3253046130
|
[1] |
VALVE RELIEF
|
0.1100(lbs); 0.050
|
| 350. |
3537046140
|
[1] |
PIN
|
0.0220(lbs); 0.010
|
| 360. |
3537046150
|
[1] |
SPRING
|
0.0660(lbs); 0.030
|
| 370. |
3537046160
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 380. |
3537046170
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 380. |
3537046180
|
[1] |
SHIM
|
0.0110(lbs); 0.005
|
| 390. |
3537046310
|
[1] |
LEVER ORIFICE
|
0.0880(lbs); 0.040
|
| 400. |
3537046320
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 410. |
0771500801
|
[1] |
BALL
|
0.0022(lbs); 0.001
|
| 420. |
3259049880
|
[1] |
ORIFICE ROTARY
|
0.0440(lbs); 0.020
|
| 430. |
0541100216
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 440. |
0481110040
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 450. |
0541100208
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 460. |
3253046210
|
[1] |
VALVE CHECK
|
0.0220(lbs); 0.010
|
| 470. |
3537046220
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 480. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 490. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 500. |
0112350830
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 510. |
0112350840
|
[1] |
BOLT
|
0.0396(lbs); 0.018
|
| 520. |
3253041510
|
[1] |
BALL LINK
|
0.0814(lbs); 0.037
|
| 530. |
0451260050
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 540. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
