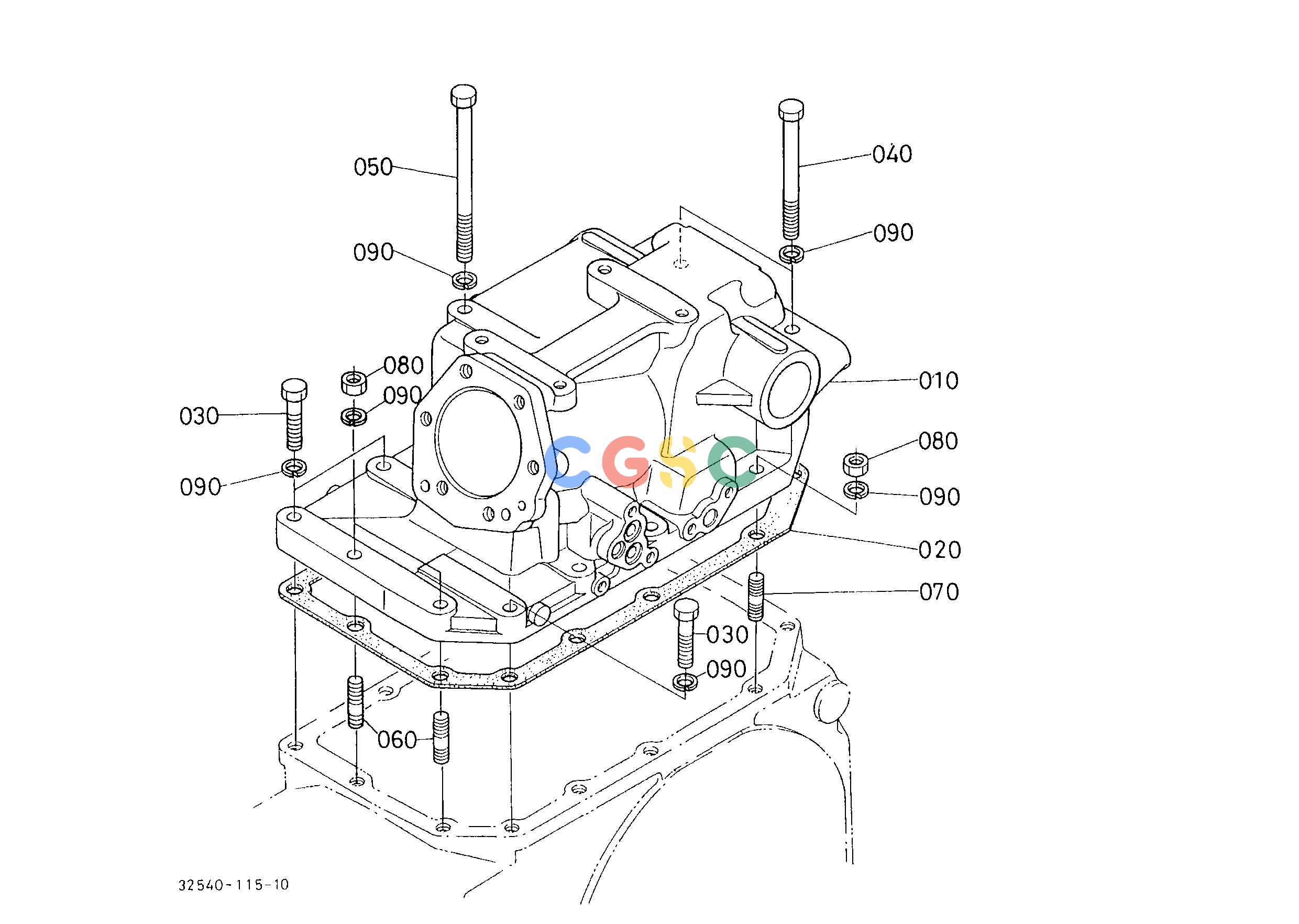

久保田零件查询T11600 HYDARULIC CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259037110
|
[1] |
CYLINDER HYD.
|
59.1800(lbs); 26.900
|
| 020. |
3253037120
|
[1] |
GASKET
|
0.1100(lbs); 0.050
|
| 030. |
0117351250
|
[5] |
BOLT
|
0.1100(lbs); 0.050
|
| 040. |
3253037180
|
[2] |
BOLT
|
0.2420(lbs); 0.110
|
| 050. |
3633082160
|
[1] |
BOLT
|
0.3300(lbs); 0.150
|
| 060. |
0157451245
|
[2] |
STUD
|
0.1122(lbs); 0.051
|
| 070. |
0157451240
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 080. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
