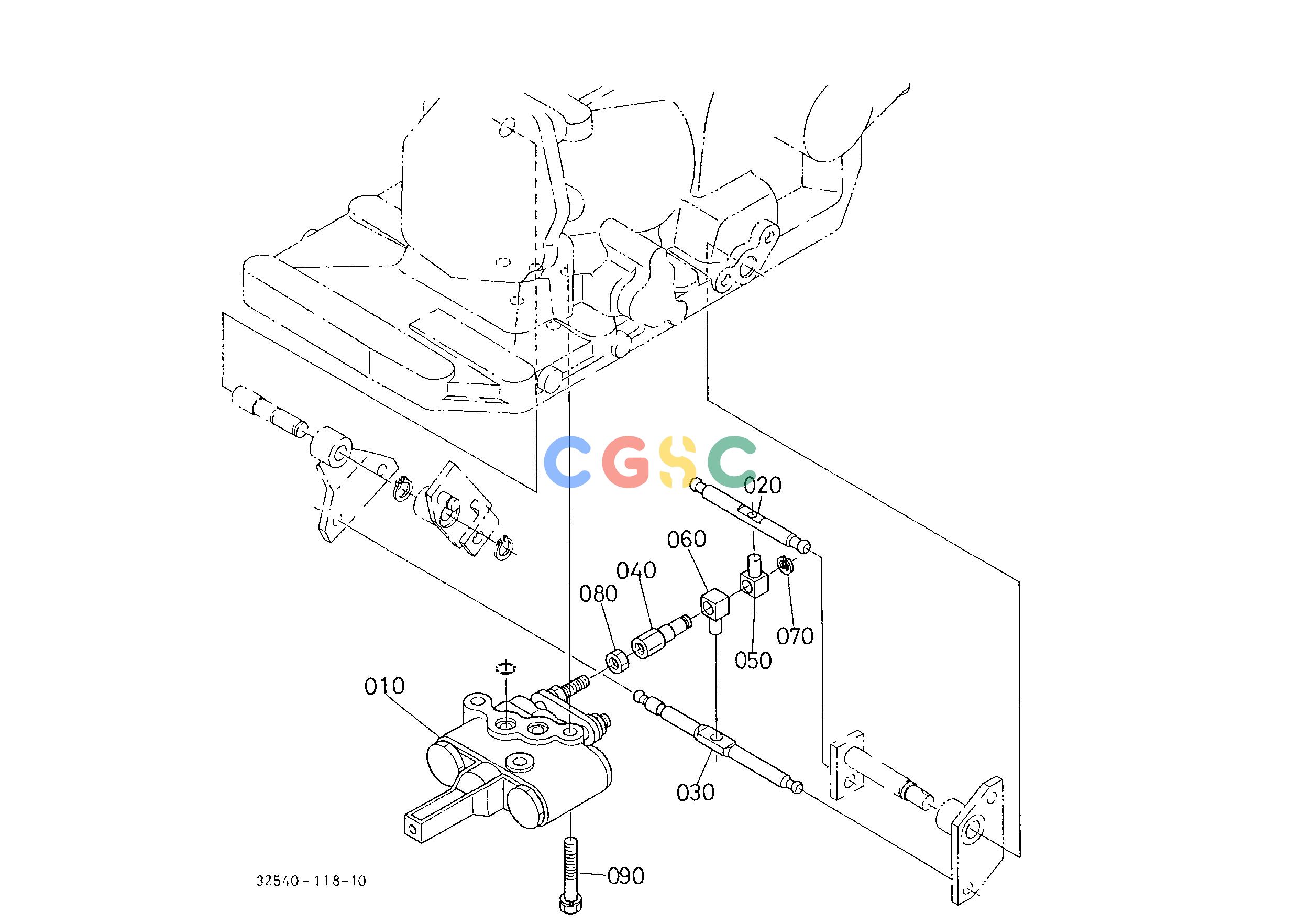

久保田零件查询T12000 CONTROL VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253039150
|
[1] |
ASSY VALVE CONTROL
|
3.6300(lbs); 1.650
|
| 020. |
3135137640
|
[1] |
LEVER SPOOL DRIVE
|
0.1100(lbs); 0.050
|
| 030. |
3259037520
|
[1] |
LEVER SPOOL DRIVE
|
0.1760(lbs); 0.080
|
| 040. |
3259037530
|
[1] |
JOINT SPOOL
|
0.0770(lbs); 0.035
|
| 050. |
3715036420
|
[1] |
JOINT SPOOL
|
0.0440(lbs); 0.020
|
| 060. |
3259037540
|
[1] |
JOINT SPOOL
|
0.0330(lbs); 0.015
|
| 070. |
0461300060
|
[1] |
CIRCLIP EXTERNAL
|
0.0000(lbs); 0.000
|
| 080. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 090. |
0112350850
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
