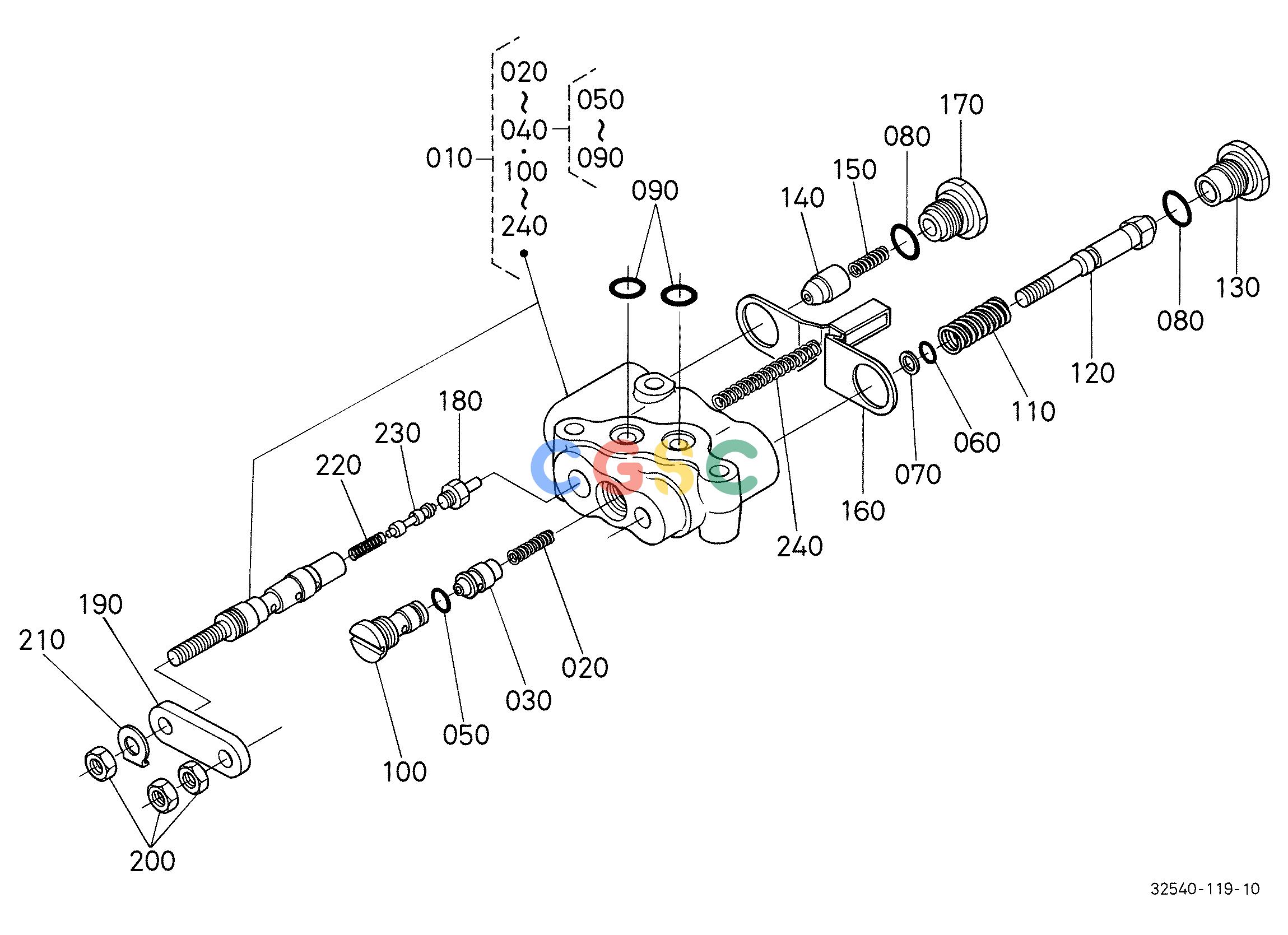

久保田零件查询T12100 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253039150
|
[1] |
ASSY VALVE CONTROL
|
3.6300(lbs); 1.650
|
| 020. |
3715036580
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 030. |
3715036590
|
[1] |
VALVE CHECK
|
0.0330(lbs); 0.015
|
| 040. |
3253094620
|
[1] |
KIT SEAL
|
0.0044(lbs); 0.002
|
| 050. |
0481000090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481100070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
3715036630
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
0481100150
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0481000120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
3715036440
|
[1] |
SEAT
|
0.0770(lbs); 0.035
|
| 110. |
3715036450
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 120. |
3715036460
|
[1] |
POPPET
|
0.1056(lbs); 0.048
|
| 130. |
3715036470
|
[1] |
PLUG SEAT
|
0.0880(lbs); 0.040
|
| 140. |
3715036480
|
[1] |
VALVE UNLOAD
|
0.0440(lbs); 0.020
|
| 150. |
3715036490
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 160. |
3253094630
|
[1] |
PLATE
|
0.1320(lbs); 0.060
|
| 170. |
3715036520
|
[1] |
PLUG
|
0.0946(lbs); 0.043
|
| 180. |
3253094640
|
[1] |
PLUG
|
0.0220(lbs); 0.010
|
| 190. |
3715036540
|
[1] |
PLATE
|
0.3190(lbs); 0.145
|
| 200. |
0211250080
|
[3] |
NUT
|
0.0066(lbs); 0.003
|
| 210. |
3715036560
|
[1] |
WASHER LOCK
|
0.0220(lbs); 0.010
|
| 220. |
3243039150
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 230. |
3243039140
|
[1] |
SPOOL BYPASS
|
0.0220(lbs); 0.010
|
| 240. |
3253094650
|
[1] |
SPRING RETURN
|
0.0088(lbs); 0.004
|
