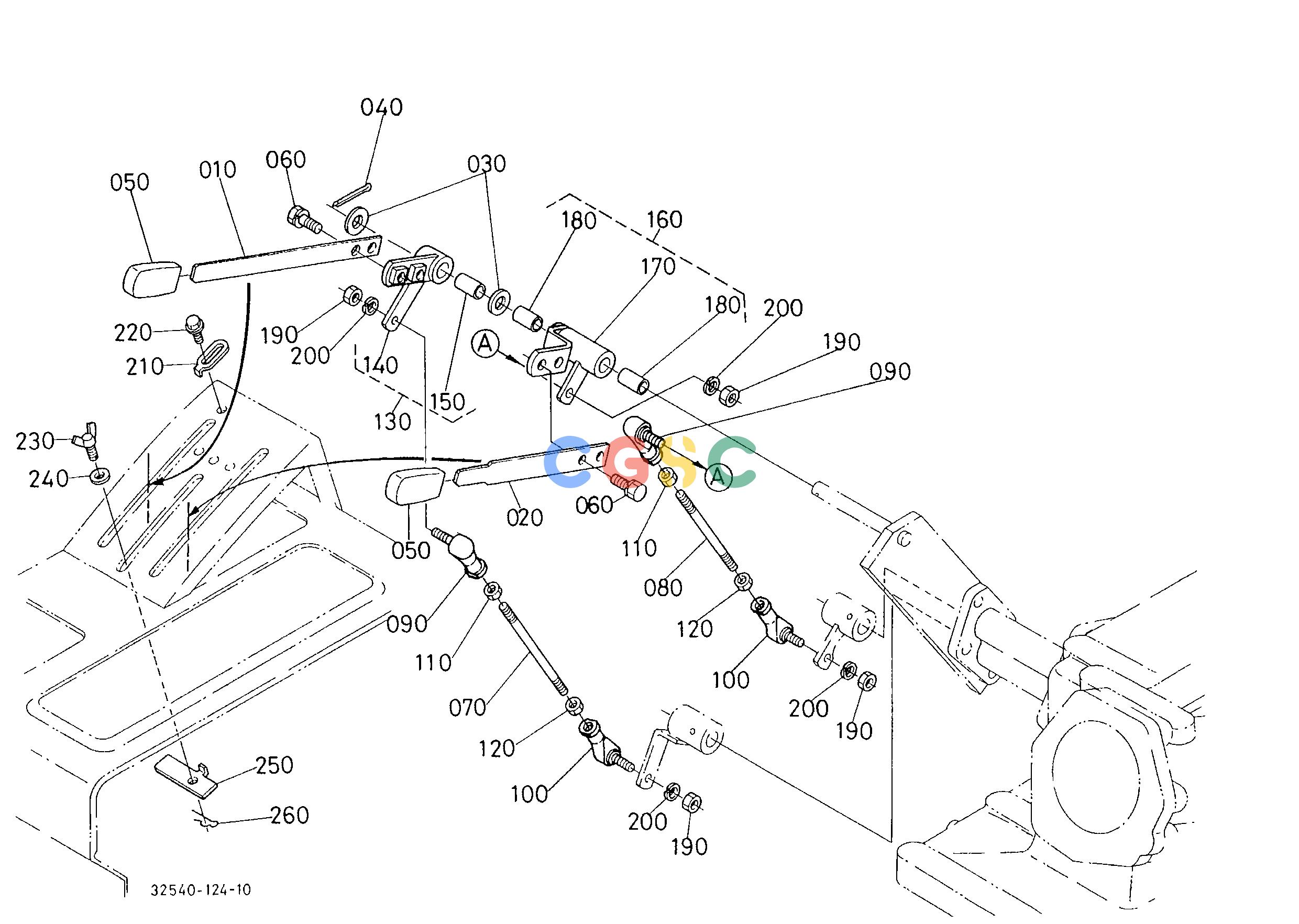

久保田零件查询T12600 POSITION AND DRAFT CONTROL LEVER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253036856
|
[1] |
LEVER POSITON CON.
|
0.2420(lbs); 0.110
|
| 020. |
3253041392
|
[1] |
LEVER DRAFT CONTROL
|
0.2530(lbs); 0.115
|
| 030. |
0401360120
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 050. |
3135124970
|
[2] |
GRIP LEVER
|
0.1100(lbs); 0.050
|
| 060. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 070. |
3259037800
|
[1] |
ROD
|
0.0572(lbs); 0.026
|
| 080. |
3259037810
|
[1] |
ROD
|
0.0506(lbs); 0.023
|
| 090. |
3253041520
|
[2] |
BALL LINK
|
0.0528(lbs); 0.024
|
| 100. |
3253041530
|
[2] |
BALL LINK
|
0.0814(lbs); 0.037
|
| 110. |
0201260060
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
3653027770
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 130. |
3259037880
|
[1] |
ASSY ARM
|
0.2640(lbs); 0.120
|
| 140. |
3259037822
|
[1] |
ARM
|
0.2530(lbs); 0.115
|
| 150. |
0851101220
|
[1] |
BUSH
|
0.0088(lbs); 0.004
|
| 160. |
3259037890
|
[1] |
ASSY ARM
|
0.4400(lbs); 0.200
|
| 170. |
3259037830
|
[1] |
ARM
|
0.4180(lbs); 0.190
|
| 180. |
0851101220
|
[2] |
BUSH
|
0.0088(lbs); 0.004
|
| 190. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 200. |
0451260060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 210. |
3253036950
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 220. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 230. |
3253036990
|
[1] |
BOLT STOPPER
|
0.0330(lbs); 0.015
|
| 240. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 250. |
3259036980
|
[1] |
STOPPER LEVER
|
0.1100(lbs); 0.050
|
| 260. |
0552550600
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
