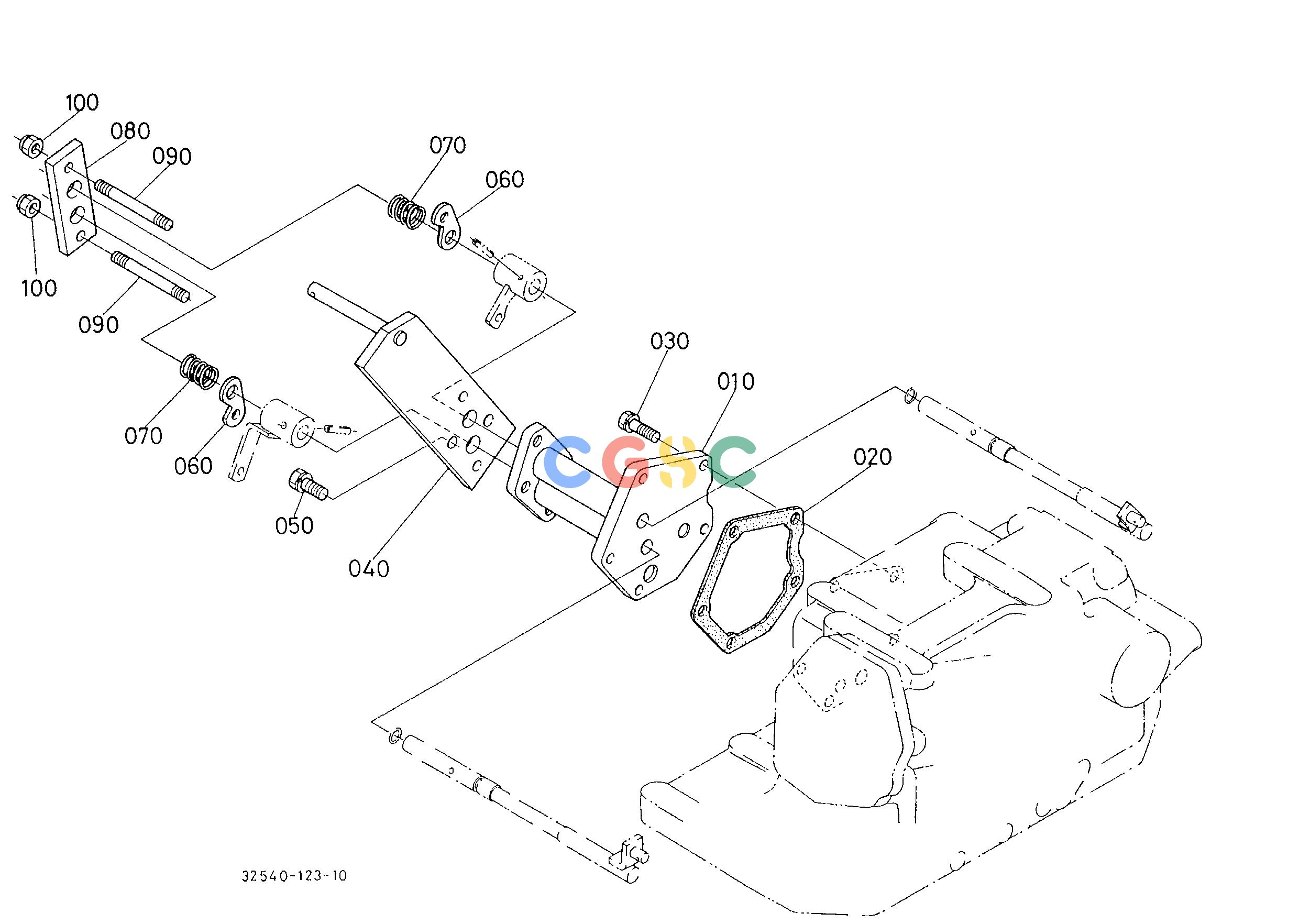

久保田零件查询T12500 CONTROL LEVER STAY HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
616 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259037780
|
[1] |
BRACKET GUIDE
|
5.0600(lbs); 2.300
|
| 020. |
3259037790
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 030. |
0112350825
|
[5] |
BOLT
|
0.0286(lbs); 0.013
|
| 040. |
3259037840
|
[1] |
STAY CONTROL LEVER
|
2.4200(lbs); 1.100
|
| 050. |
0113351020
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
3259037850
|
[2] |
STOPPER
|
0.0330(lbs); 0.015
|
| 070. |
3259037860
|
[2] |
SPRING
|
0.0396(lbs); 0.018
|
| 080. |
3259037870
|
[1] |
RETAINER SPRING
|
0.5060(lbs); 0.230
|
| 090. |
0151350885
|
[2] |
STUD
|
0.0770(lbs); 0.035
|
| 100. |
0255450080
|
[2] |
NUT LOCK
|
0.0088(lbs); 0.004
|
