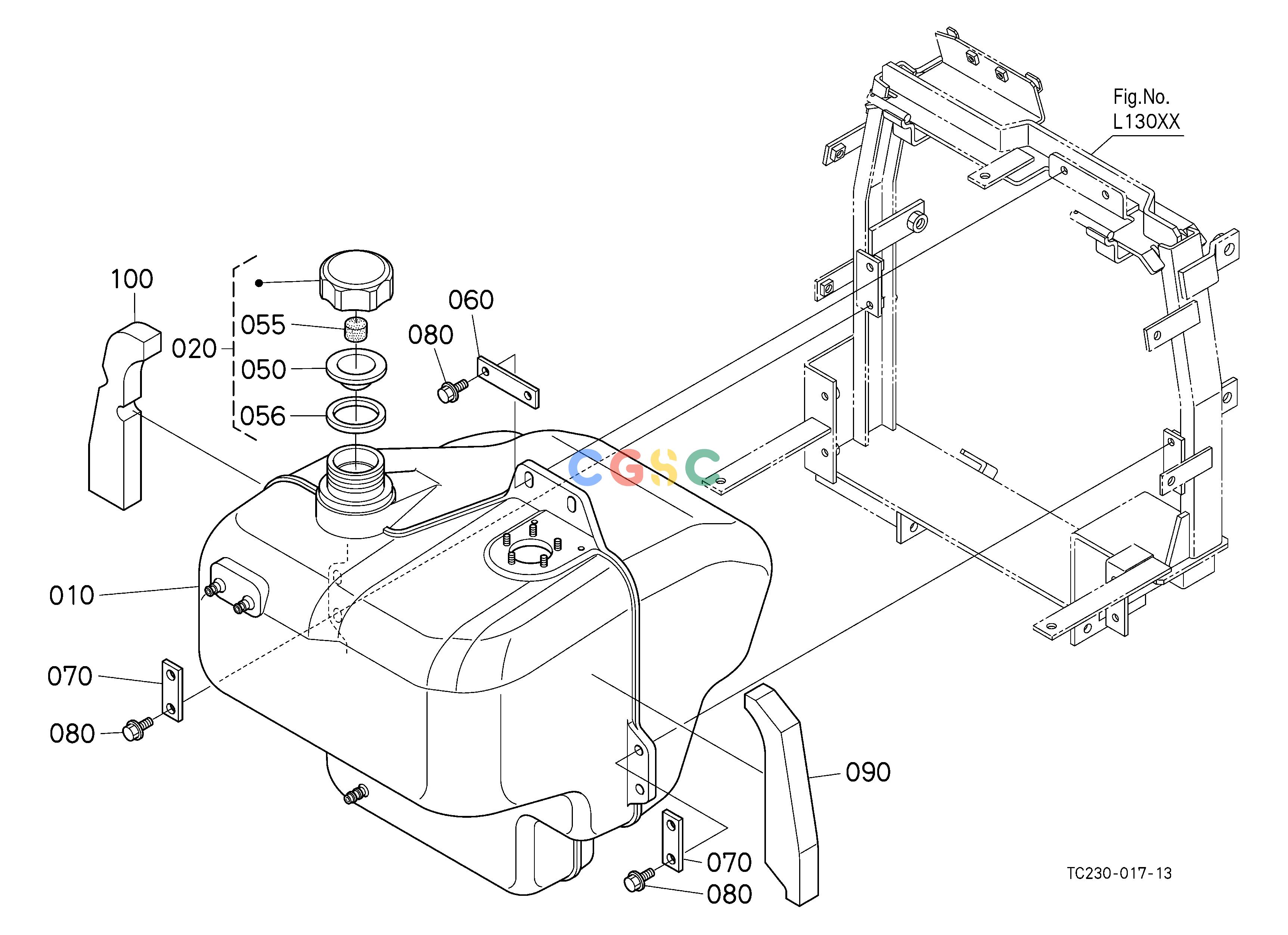

Pos.	Part No	Qty	Parts name	Comments
010.	TC23042011	[1]	TANK,FUEL	; <=55469 0.0000(lbs); 0.000
010.	TC23042012	[1]	TANK,FUEL	; >=55470 11.4400(lbs); 5.200
010.	TC23042013	[1]	TANK,FUEL	; >=56237 11.4400(lbs); 5.200
020.	6A10054910	[1]	CAP,ASSY(FUEL)	; <=55146 0.2310(lbs); 0.105
020.	TC22242041	[1]	ASSY CAP,FUEL	; >=55147 0.0000(lbs); 0.000
020.	T106042020	[1]	CAP,ASSY(FUEL TANK)	; >=55470 0.0924(lbs); 0.042
050.	6A10054952	[1]	GASKET	; <=55146 0.0440(lbs); 0.020
050.	PK40182473	[1]	PACKING	; >=55147 0.0418(lbs); 0.019
050.	3415035230	[1]	GASKET	; >=55470 0.0220(lbs); 0.010
055.	3415035240	[1]	SPONGE	; >=55470 0.0022(lbs); 0.001
056.	T106042090	[1]	GASKET	; >=55470 0.0044(lbs); 0.002
060.	TC23042120	[1]	PLATE, FUEL TANK	0.0880(lbs); 0.040
070.	T106042080	[2]	PLATE, FUEL TANK	0.0726(lbs); 0.033
080.	0112350825	[6]	BOLT,SEMS	0.0286(lbs); 0.013
090.	TC23042183	[1]	SPONGE	0.0770(lbs); 0.035
100.	TC22042190	[1]	SPONGE,SHUTTER RH	0.0770(lbs); 0.035
