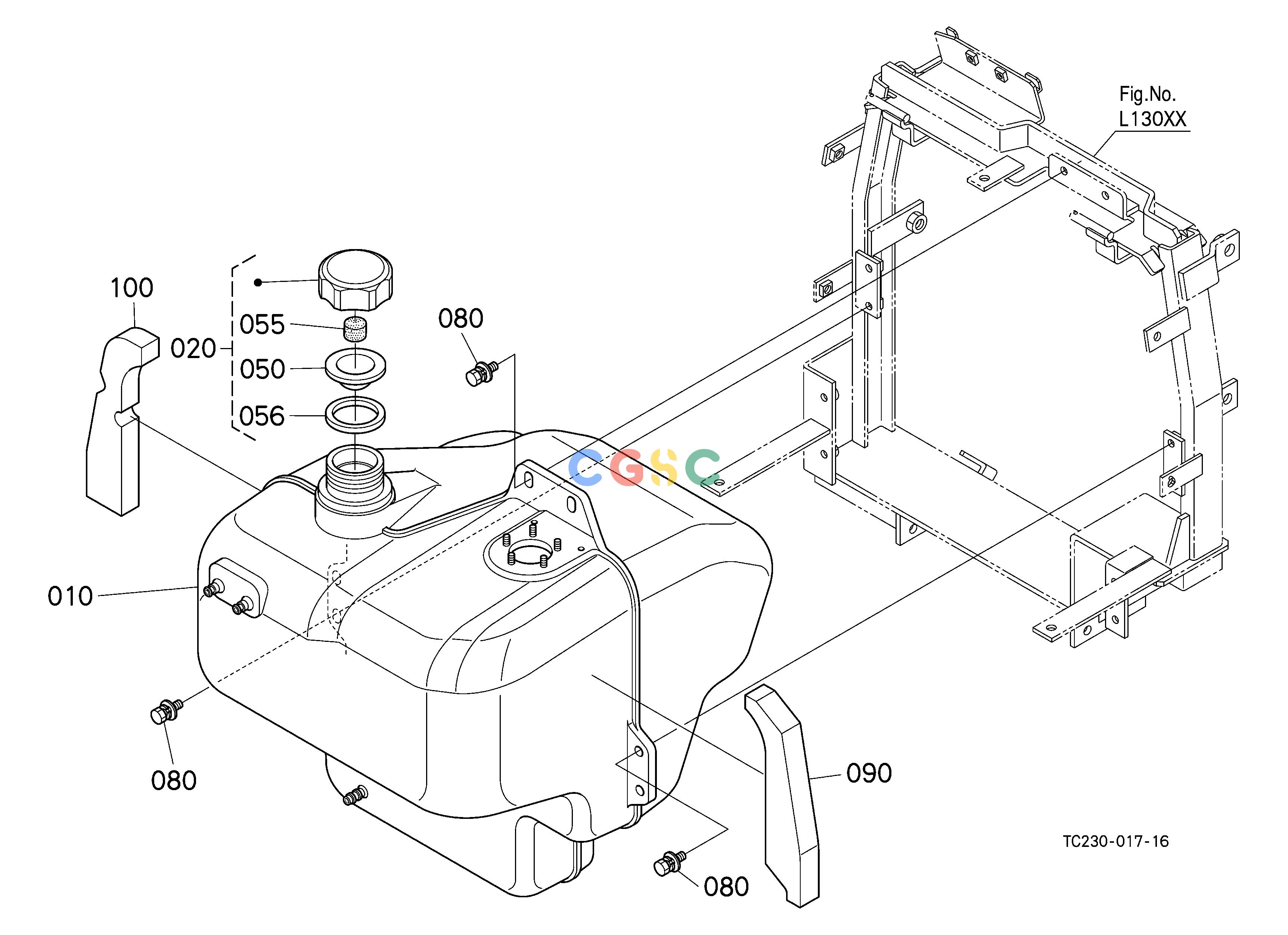

久保田零件查询A10102 FUEL TANK [NEW] ## S.No.>=83906 S.No.;>=83906 FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23042013
|
[1] |
TANK,FUEL
|
11.4400(lbs); 5.200
|
| 020. |
T106042020
|
[1] |
CAP,ASSY(FUEL TANK)
|
0.0924(lbs); 0.042
|
| 050. |
3415035230
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 055. |
3415035240
|
[1] |
SPONGE
|
0.0022(lbs); 0.001
|
| 056. |
T106042090
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 080. |
0112750825
|
[6] |
BOLT,W SEMS(LARGE WASHER)
|
0.0220(lbs); 0.010
|
| 090. |
TC23042183
|
[1] |
SPONGE
|
0.0770(lbs); 0.035
|
| 100. |
TC22042190
|
[1] |
SPONGE,SHUTTER RH
|
0.0770(lbs); 0.035
|
