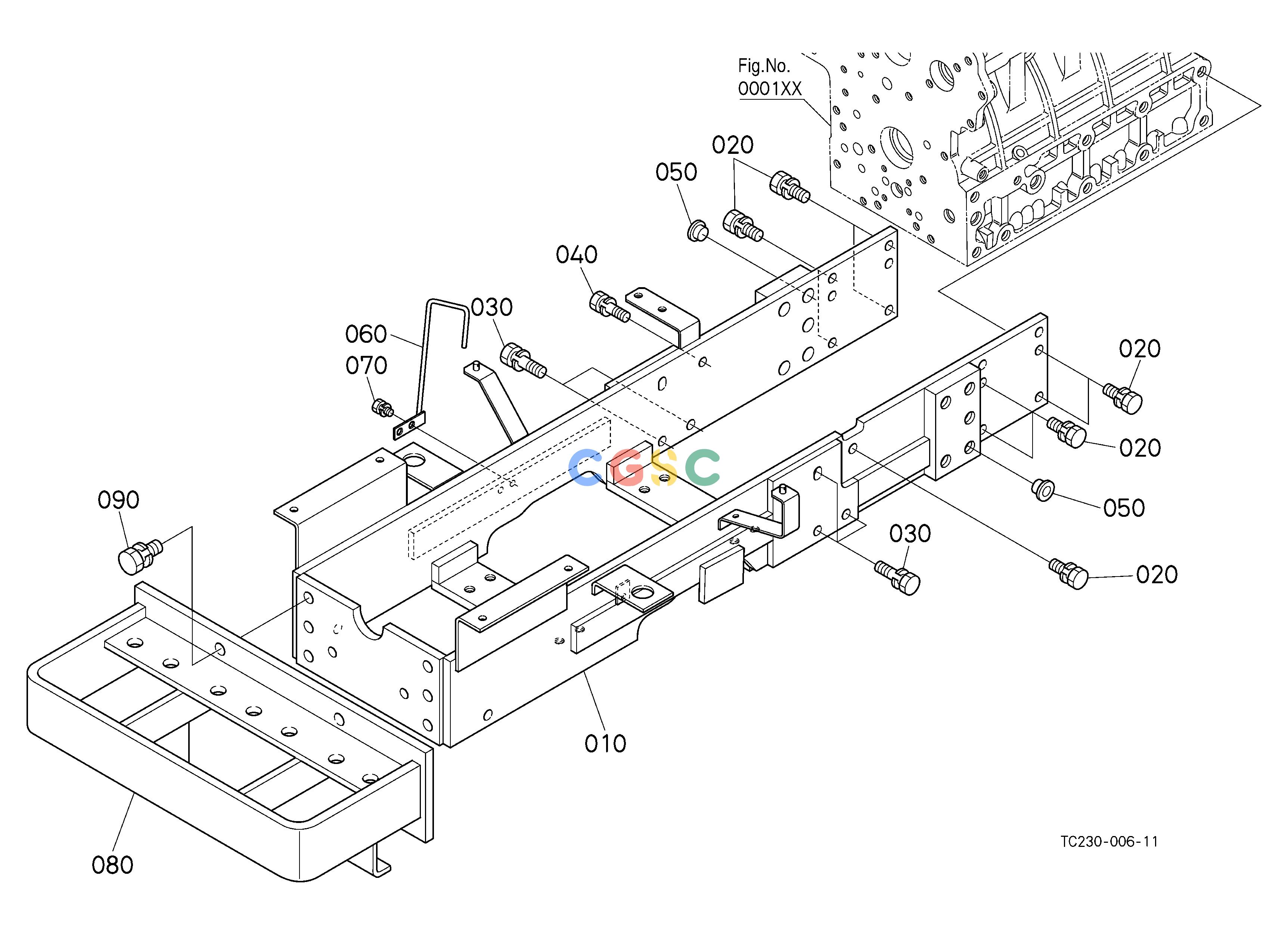

久保田零件查询F10501 FRONT AXLE FRAME [OLD] ## S.No.<=10941 [NOTE:ORDER BY REF.No.F10502 REF.No.010,060,070 and 100 NEW PARTS.] FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23011000
|
[1] |
FRAME,FRONT AXLE
|
81.4000(lbs); 37.000
|
| 020. |
0113851230
|
[9] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 030. |
0113851240
|
[6] |
BOLT,SEMS
|
0.1012(lbs); 0.046
|
| 040. |
0113851030
|
[1] |
BOLT,SEMS
|
0.5500(lbs); 0.250
|
| 050. |
3330090910
|
[10] |
PLUG
|
0.0044(lbs); 0.002
|
| 060. |
TC23014252
|
[1] |
GUIDE,P.S. HOSE
|
0.1100(lbs); 0.050
|
| 070. |
0112350812
|
[2] |
BOLT,SEMS
|
0.2200(lbs); 0.100
|
| 080. |
3243044880
|
[1] |
BUMPER
|
26.5100(lbs); 12.050
|
| 090. |
0113351435
|
[4] |
BOLT,SEMS
|
0.2200(lbs); 0.100
|
