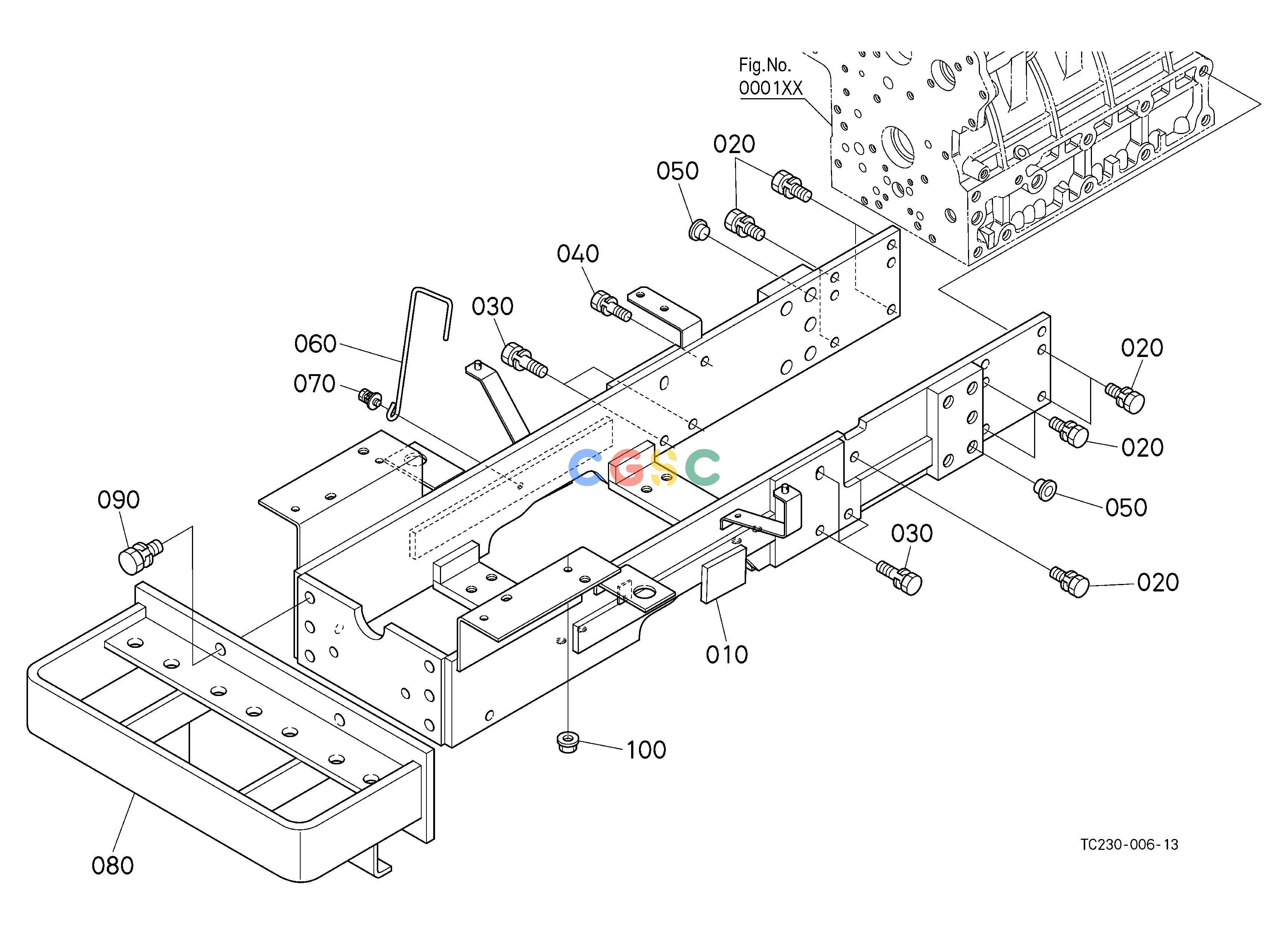

久保田零件查询F10502 FRONT AXLE FRAME [NEW] ## S.No.>=20001 S.No.;>=20001 FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23011005
|
[1] |
FRAME,FRONT AXLE
|
99.0000(lbs); 45.000
|
| 020. |
0113851230
|
[9] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 030. |
0113851240
|
[6] |
BOLT,SEMS
|
0.1012(lbs); 0.046
|
| 040. |
0113851030
|
[1] |
BOLT,SEMS
|
0.5500(lbs); 0.250
|
| 050. |
3330090910
|
[10] |
PLUG
|
0.0044(lbs); 0.002
|
| 060. |
TC23014253
|
[1] |
GUIDE,P.S. HOSE
|
0.1100(lbs); 0.050
|
| 070. |
0112550816
|
[1] |
BOLT,W SEMS
|
0.0286(lbs); 0.013
|
| 080. |
3243044880
|
[1] |
BUMPER
|
26.5100(lbs); 12.050
|
| 090. |
0113351435
|
[4] |
BOLT,SEMS
|
0.2200(lbs); 0.100
|
| 100. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
