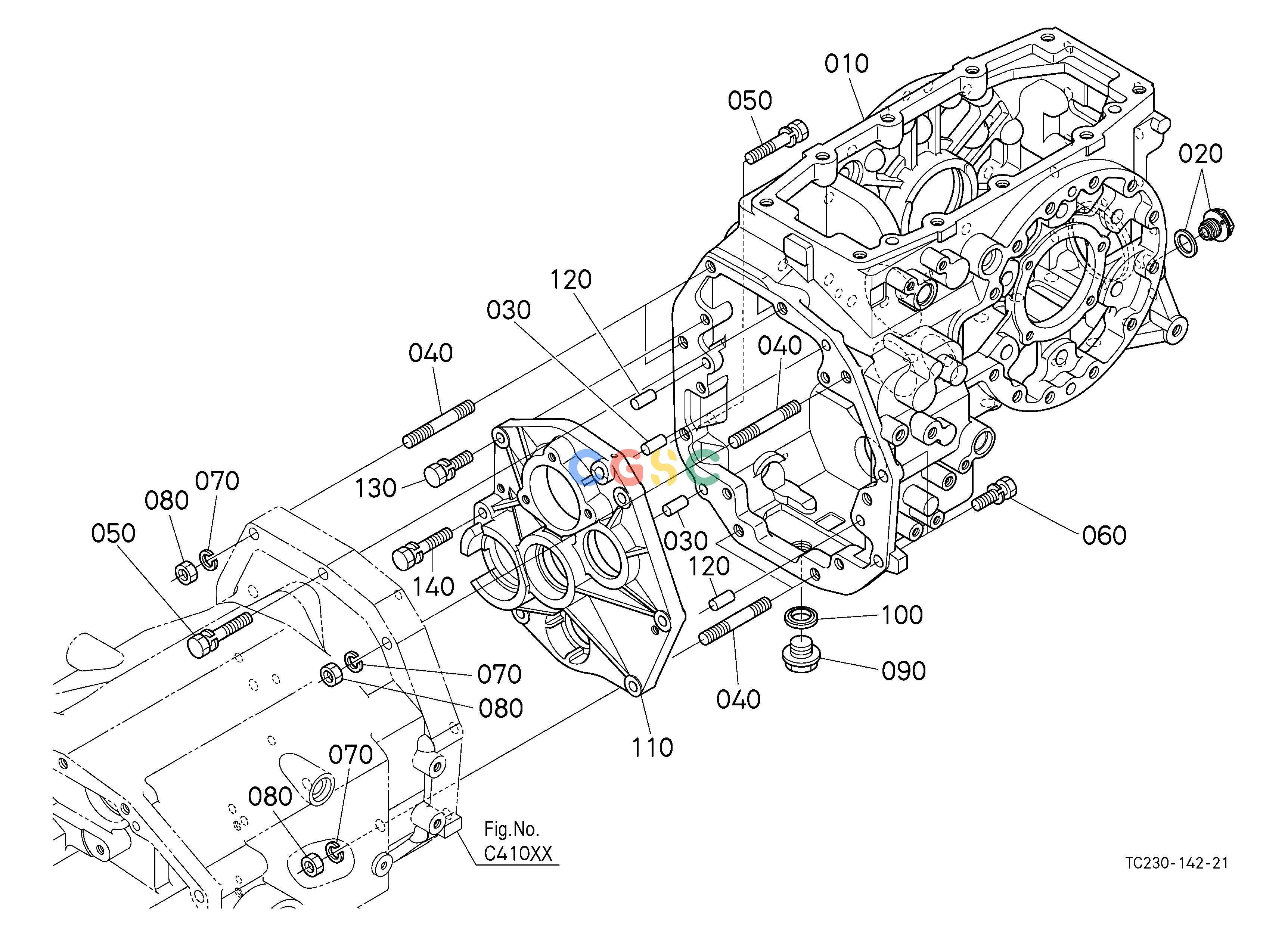

久保田零件查询C42000 TRANSMISSION CASE ## NOTE:ORDER BY REF.No.010 and Fig.No.D21700-060,090,E11000-090 NEW PARTS. CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 20 06月, 2025，浏览：
1044 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | TC23050422 | [1] |
CASE,TRANSMISSION | 103.4000(lbs); 47.00 |
| 010. | TC23050428 | [1] |
CASE,TRANSMISSION |
88.0000(lbs); 40.000 |
| 020. | TC23014612 | [1] |
GAUGE,OIL |
0.0110(lbs); 0.005 |
| 030. | 0501201018 | [2] |
PIN,STRAIGHT |
0.0264(lbs); 0.012 |
| 040. | 0157451260 | [5] |
BOLT,STUD |
0.1386(lbs); 0.063 |
| 050. | 0113351260 | [2] |
BOLT,SEMS |
0.1320(lbs); 0.060 |
| 060. | 0113351235 | [2] |
BOLT,SEMS |
0.0946(lbs); 0.043 |
| 070. | 0451250120 | [5] |
WASHER,SPRING LOCK |
0.0066(lbs); 0.003 |
| 080. | 0217650120 | [5] |
HEX.NUT |
0.0220(lbs); 0.010 |
| 090. | 1551296010 | [1] |
PLUG |
0.2222(lbs); 0.101 |
| 100. | 0471702150 | [1] |
SPRING SEAT |
0.0088(lbs); 0.004 |
| 110. | TC23050450 | [1] |
HOLDER,BEARING |
11.2200(lbs); 5.100 |
| 120. | 0501201018 | [2] |
PIN,STRAIGHT |
0.0264(lbs); 0.012 |
| 130. | 0113351040 | [5] |
BOLT,SEMS |
0.0660(lbs); 0.030 |
| 140. | 0113351060 | [1] |
BOLT,SEMS |
0.0924(lbs); 0.042 |
