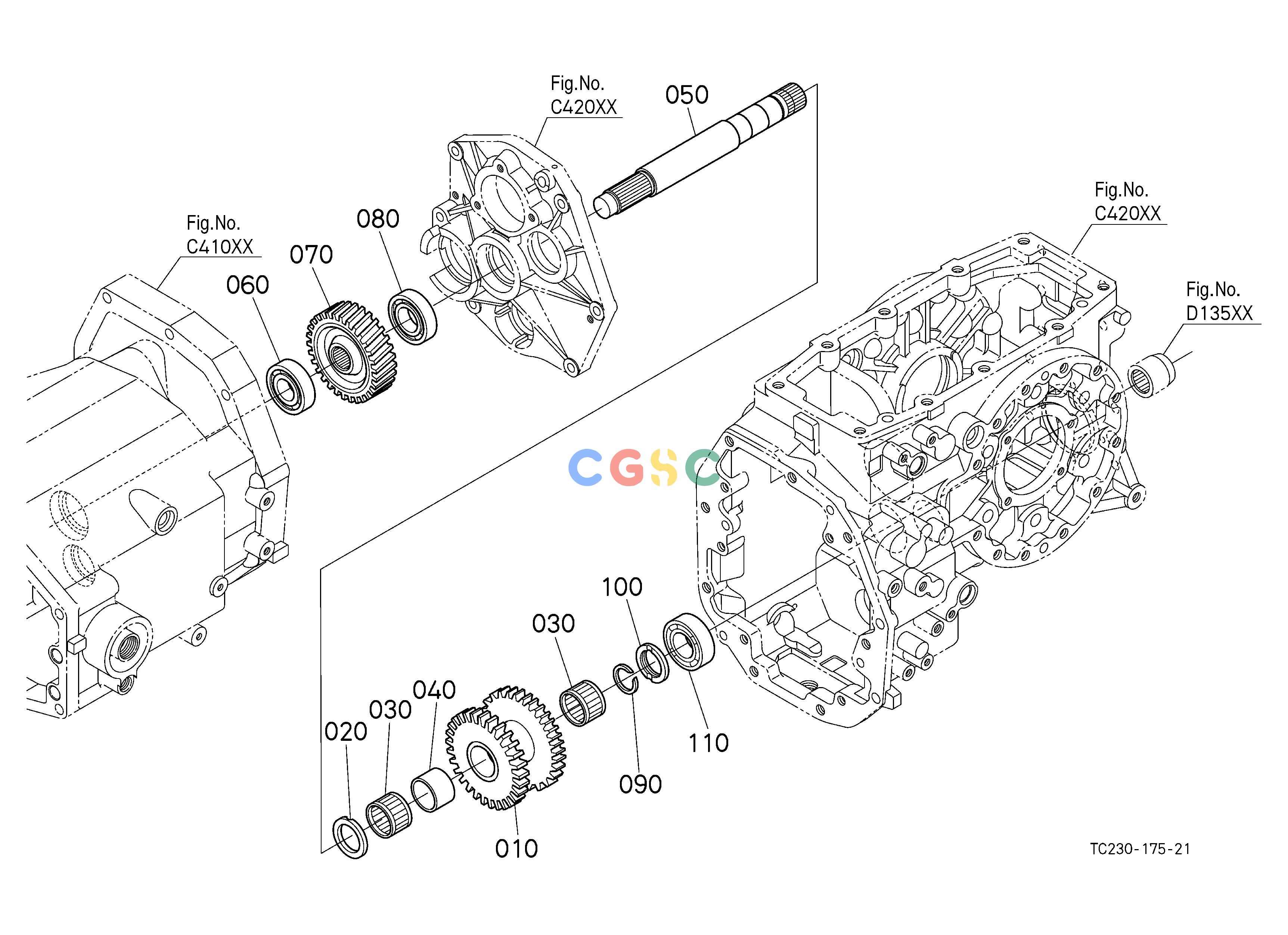

久保田零件查询D13400 PTO DRIVE SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23015120
|
[1] |
GEAR
|
3.8720(lbs); 1.760
|
| 020. |
3843025233
|
[1] |
COLLAR,THRUST
|
0.0440(lbs); 0.020
|
| 030. |
3843025670
|
[2] |
BEARING,NEEDLE
|
0.0660(lbs); 0.030
|
| 040. |
TC23015130
|
[1] |
COLLAR
|
0.0924(lbs); 0.042
|
| 050. |
TC23053680
|
[1] |
SHAFT,PTO DRIVE
|
4.4000(lbs); 2.000
|
| 060. |
3589041290
|
[1] |
BEARING
|
0.5126(lbs); 0.233
|
| 070. |
TD06023610
|
[1] |
GEAR,PTO
|
4.0700(lbs); 1.850
|
| 080. |
7655034140
|
[1] |
BEARING,BALL
|
0.4620(lbs); 0.210
|
| 090. |
3741015280
|
[1] |
CIR-CLIP
|
0.0110(lbs); 0.005
|
| 100. |
3455023360
|
[1] |
COLLAR,THRUST
|
0.0484(lbs); 0.022
|
| 110. |
3741057330
|
[1] |
BEARING,BALL
|
0.4400(lbs); 0.200
|
