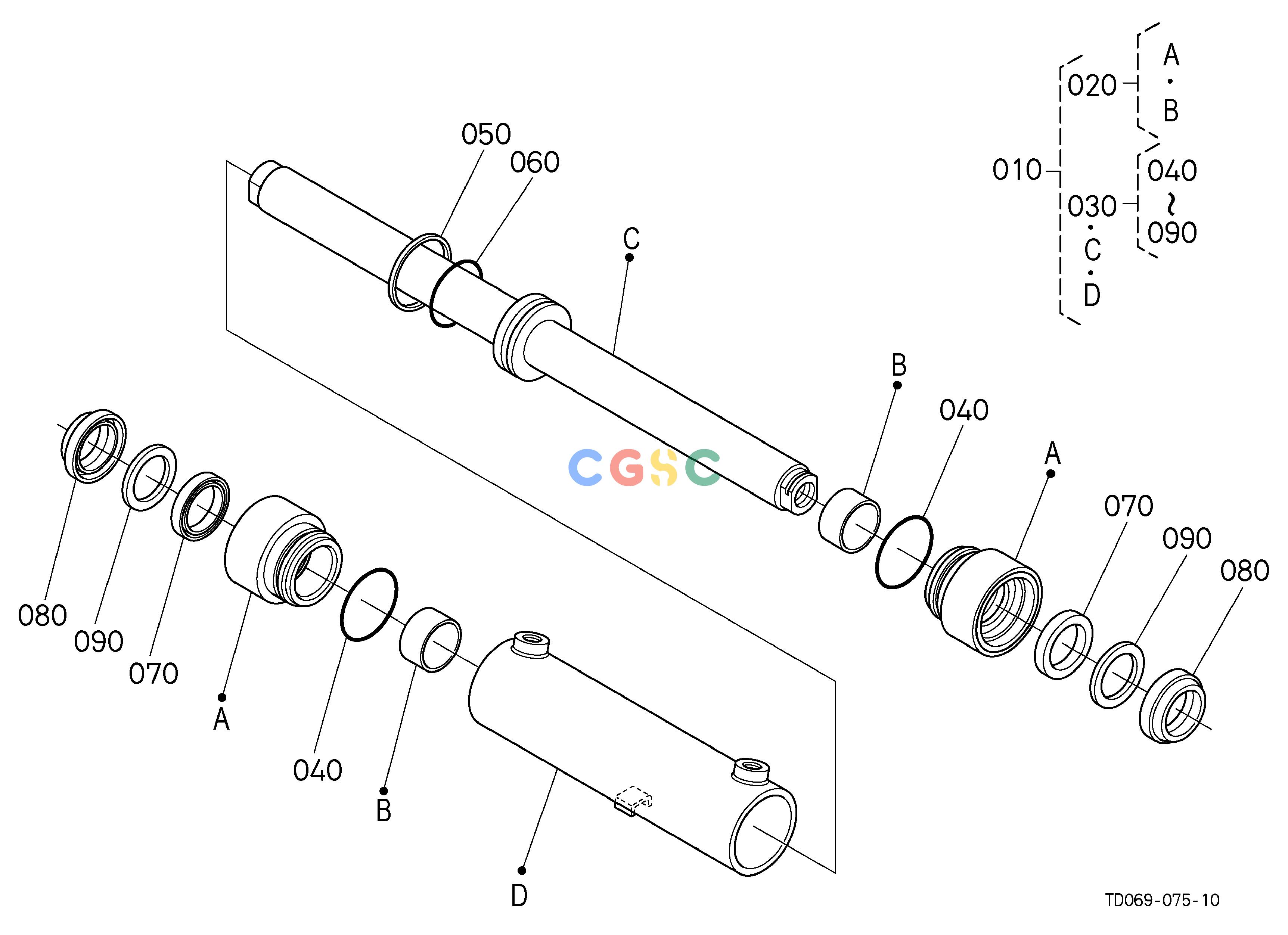

久保田零件查询G18500 STEERING CYLINDER [COMPONENT PARTS] [OLD] ## S.No.<=50612 S.No.;<=50612 STEERINGEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06937800
|
[1] |
CYL,HYDR(STEERING,POWER)
|
15.8400(lbs); 7.200
|
| 020. |
TD06937810
|
[1] |
HEAD,CYL,KIT
|
2.9260(lbs); 1.330
|
| 030. |
3A02263820
|
[1] |
SEAL,KIT
|
0.1166(lbs); 0.053
|
| 040. |
6881193370
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 050. |
3A12163830
|
[1] |
SEAL
|
0.0088(lbs); 0.004
|
| 060. |
3A12163840
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
3A12163890
|
[2] |
RING(U)
|
0.0110(lbs); 0.005
|
| 080. |
3A12163860
|
[2] |
RING(WIPER)
|
0.0330(lbs); 0.015
|
| 090. |
3A12163870
|
[2] |
RING(BACK UP)
|
0.0088(lbs); 0.004
|
