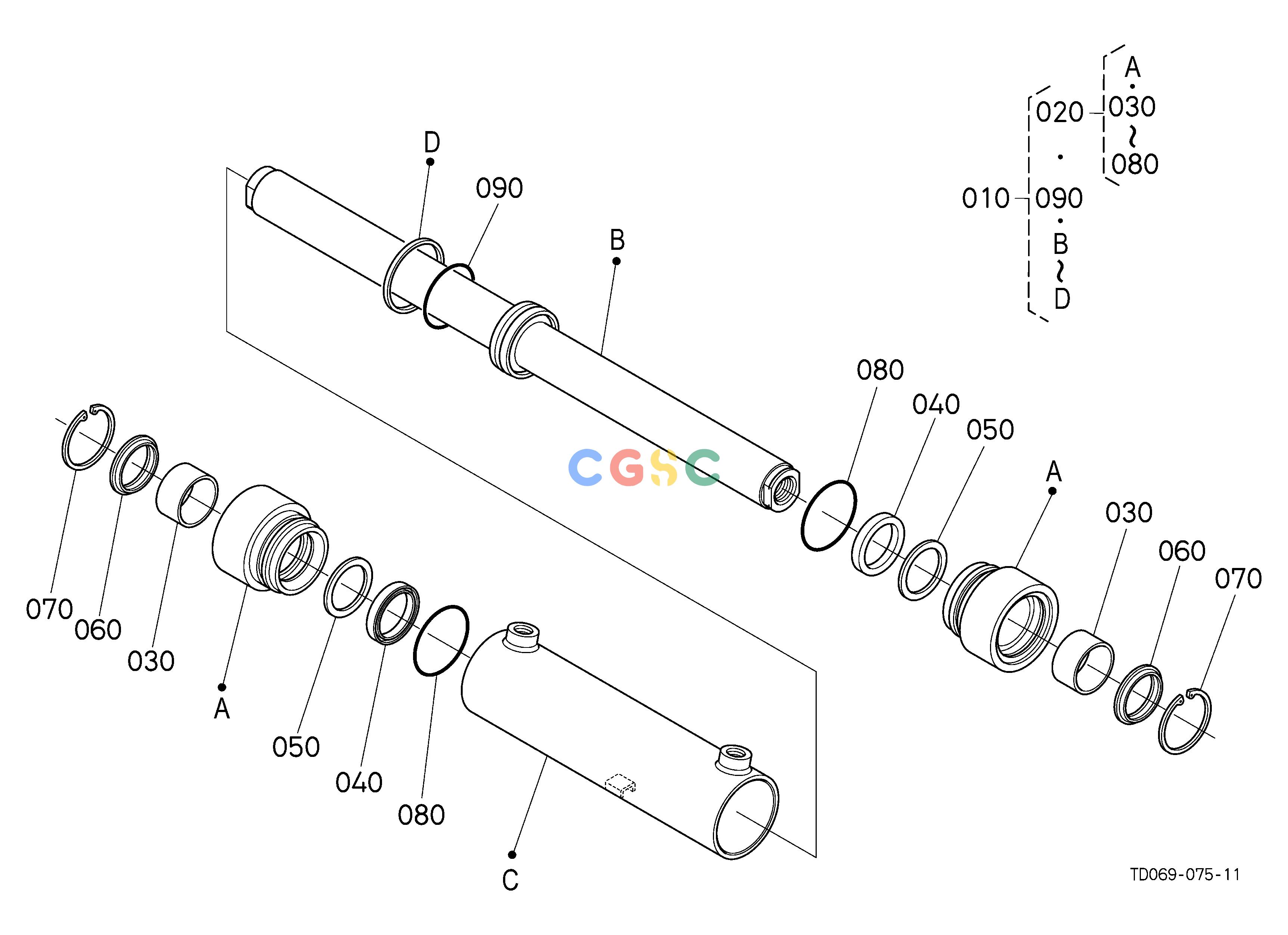

久保田零件查询G18501 STEERING CYLINDER [COMPONENT PARTS] [NEW] ## S.No.>=50613 S.No.;>=50613 STEERINGEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW40800100
|
[1] |
CYLINDER,ASSY
|
15.8400(lbs); 7.200
|
| 020. |
YW40800500
|
[2] |
ASSY CYLINDER HEAD
|
1.5730(lbs); 0.715
|
| 020. |
YW40800502
|
[2] |
ASSY CYLINDER HEAD
|
1.5730(lbs); 0.715
|
| 030. |
0851103520
|
[2] |
BUSH
|
0.0748(lbs); 0.034
|
| 040. |
YW38900410
|
[2] |
GASKET
|
0.0088(lbs); 0.004
|
| 050. |
YR81800220
|
[2] |
RING,BACK UP
|
0.0110(lbs); 0.005
|
| 060. |
3455037580
|
[2] |
SEAL,DUST
|
0.0330(lbs); 0.015
|
| 070. |
3455037590
|
[2] |
CIR CLIP,INTERNAL
|
0.0110(lbs); 0.005
|
| 080. |
0481750500
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 090. |
YW38900440
|
[1] |
GASKET,PISTON
|
0.0132(lbs); 0.006
|
